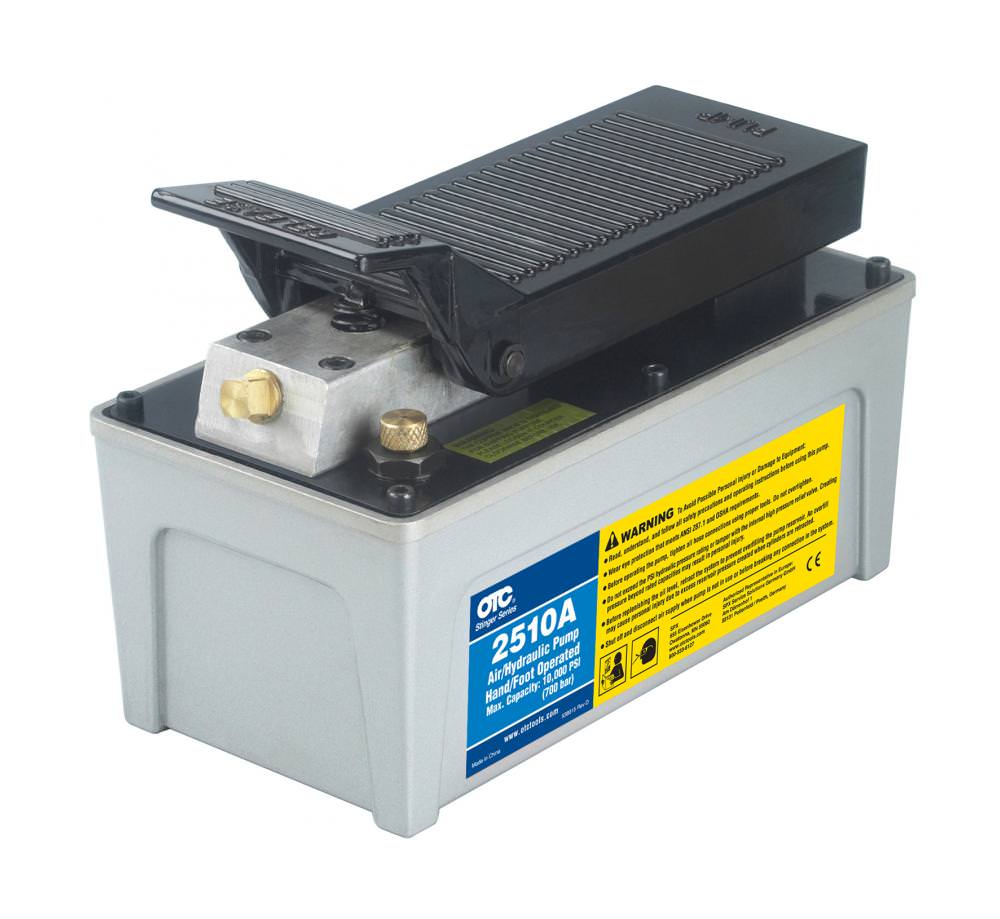

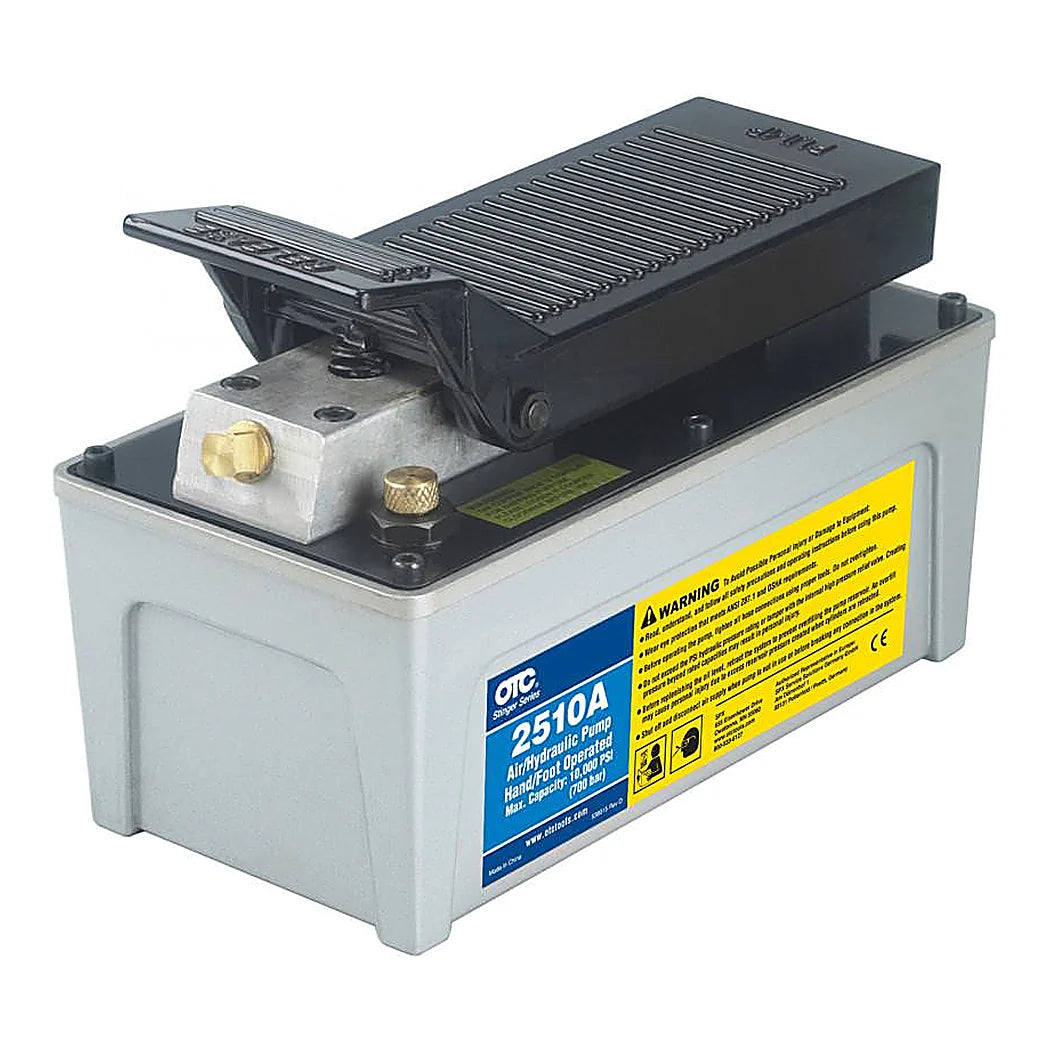

What the Air Hydraulic Pump Changes on a Press
The pump is what turns a press from a two handed job into a one footed one. Both hands come free for the bag and the parchment. Pressure then moves while you are watching the plate rather than while you are looking at a lever. Output reaches ten thousand PSI when the air supply is at a hundred PSI. Control runs through a two stage mechanism with an internal relief valve built in. That gives pump, hold and release all on the pedal. Pressure can be brought up in stages and held at a chosen point rather than jumping to maximum. Anyone who has worked a hand pump through a long session will recognise what is being removed here. The air inlet is a quarter inch NPT fitting and the oil port is three eighths inch NPT. It fits every Triminator TRP rosin press.
Sizing a Compressor Before This Reaches the Rosin Press
The manufacturer is unusually direct about the requirement, and it is the thing to settle before anything is ordered. The pump wants a minimum of five CFM at a hundred to a hundred and twenty PSI working pressure. That is the figure at pressure, not the optimistic number printed on the side of a small compressor at zero PSI. Triminator state plainly that an undersized compressor makes this pump slower than pumping by hand. That is a rare piece of honesty and a costly one to ignore. Check the compressor plate for its delivery at a hundred PSI and compare. Duty cycle matters as much as flow, because a pancake compressor that meets the figure briefly will spend a pressing session recovering. The pump itself measures roughly twenty-eight by sixteen by fourteen inches and weighs about twenty-five pounds. It sits on the floor beside the press rather than on the bench. Keep the air line out of the walking route.
Key Features
- Output: Ten thousand PSI when the air supply sits at a hundred PSI
- Built by: BVA, supplied under the Triminator part number
- Control: Pump, hold and release, all from the foot pedal
- Mechanism: Two stage release with an internal relief valve
- Hands free: Both hands stay on the bag and the parchment
- Air requirement: A minimum of five CFM at a hundred to a hundred and twenty PSI
- Maker's warning: An undersized compressor runs slower than a hand pump
- Air inlet: Quarter inch NPT
- Oil port: Three eighths inch NPT
- Fits: Every Triminator TRP rosin press
Technical Specifications
| Specification | Value |
|---|---|
| SKU | 46-06-109800 |
| Brand | Triminator |
| Pump manufacturer | BVA |
| Type | Air over hydraulic foot pump |
| Maximum output | 10,000 PSI at 100 PSI air |
| Air requirement | Minimum 5 CFM at 100 to 120 PSI |
| Control | Foot pedal, with pump, hold and release |
| Mechanism | 2-stage release with internal relief valve |
| Air inlet | 1/4 in NPT |
| Oil port | 3/8 in NPT |
| Compatibility | All Triminator TRP rosin presses |
| Dimensions | About 28 x 16 x 14 in |
| Weight | About 25 lb |
| Oil capacity | Not published by the manufacturer |
| Barcode | None on file and none confirmed, so the field was left empty |
