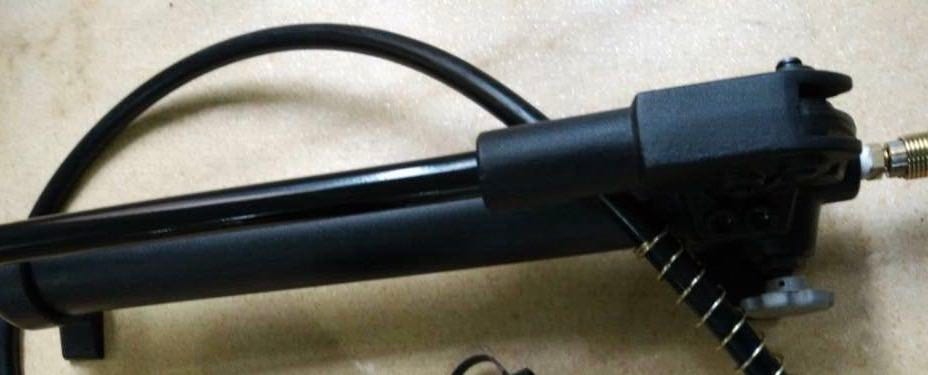

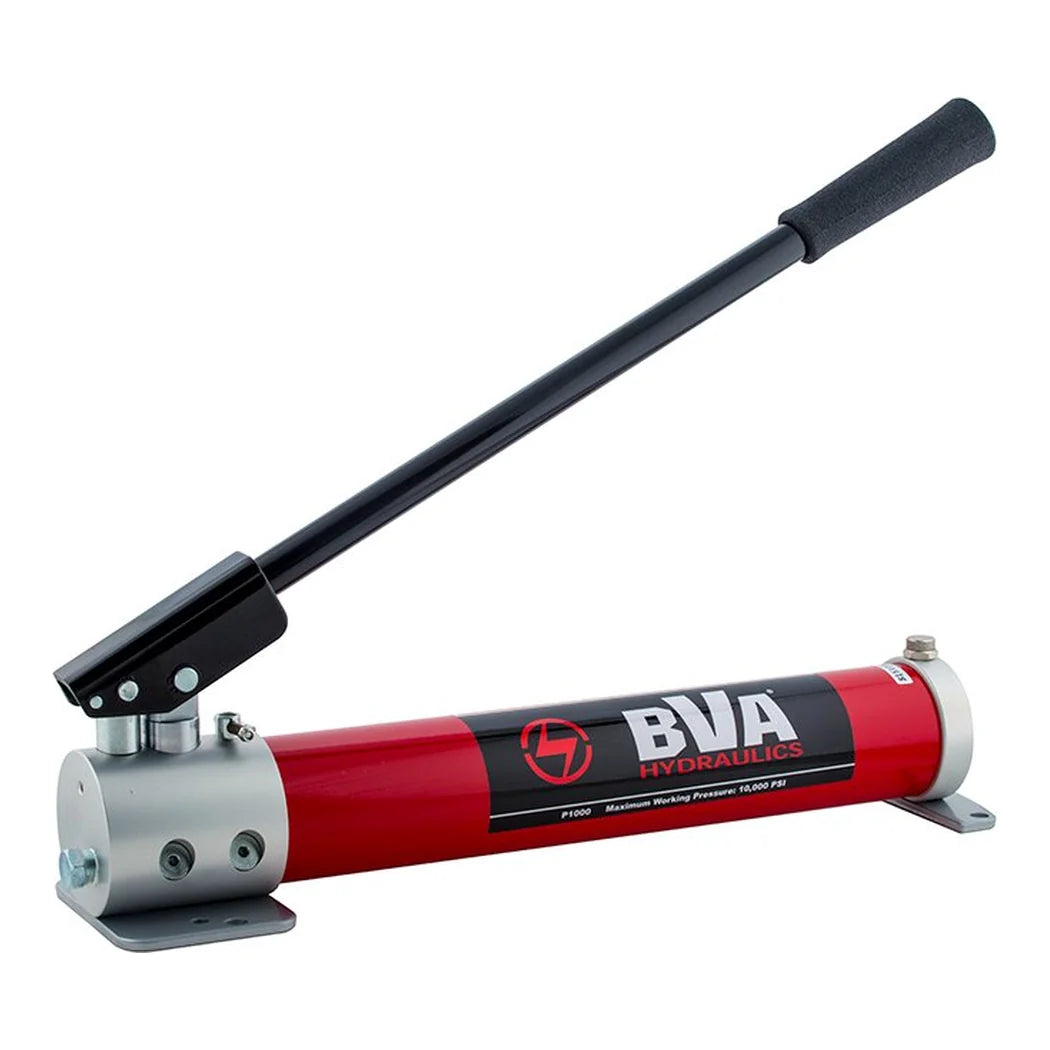

Triminator Manual Rosin Pump | 10,000 PSI Two-Stage Hand Pump

Why a Manual Rosin Pump Uses Two Stages

Closing the gap and building pressure are two different jobs, and one circuit does both badly. This pump runs a two-stage hydraulic circuit that solves it. With no load on the ram the first stage moves a large volume per stroke, so the plates close quickly. Once the plates meet the puck and resistance climbs, it shifts to the second stage. Less volume, far more pressure, and a lever you can still work by hand.

Rating and Fittings on This Rosin Press Pump

Maximum working pressure is 10,000 PSI, the standard across hydraulic press equipment at this scale. A rosin press pump at that figure is not the limiting part of the system. An internal relief valve handles overload. It vents before pressure passes what the circuit is built for, rather than relying on an operator reading a gauge in time. The oil port is 3/8 in NPT, the common thread on this class of equipment. The reservoir is metal rather than plastic. A plastic housing is the part that fails first, splitting at the seam. It fits all Triminator TRP presses. Manual is a deliberate choice rather than a compromise. Pumping by hand gives you direct feel for how the puck is responding through the stroke, which an air or electric pump takes away. The trade is time and effort on every press.

Key Features

• 10,000 PSI maximum: The standard rating for hydraulic press equipment at this scale, so the pump is not the limit.
• Two-stage hydraulic circuit: High volume per stroke while unloaded, then high pressure once the plates meet the puck.
• Internal relief valve: Vents on overload rather than depending on the operator catching it on a gauge.
• 3/8 in NPT oil port: The common thread across this class of equipment.
• Metal reservoir: Resists the cracking that ends the life of a plastic-bodied pump.
• Fits all Triminator TRP presses: Lever operated, so you feel how the puck responds through the stroke.

Technical Specifications
