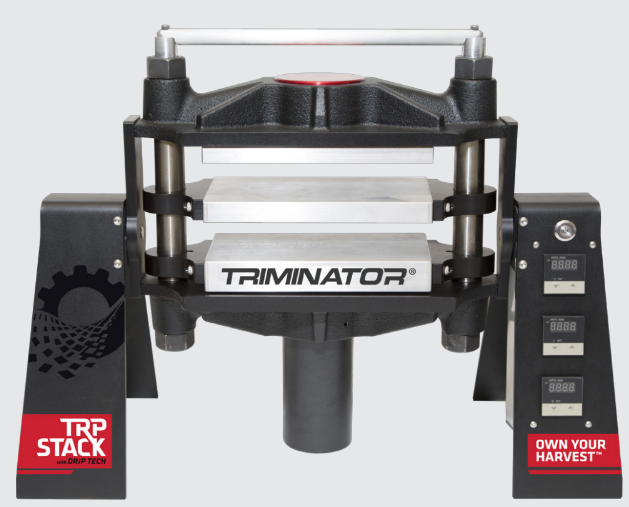

Triminator Rosin TRP Stack

Triminator TRP Stack for High-Volume Rosin

Pressing more material per cycle is the fastest way to raise rosin output, and this Triminator press does it with a multi-platen design. Three polished, food-safe aluminum platens, each 6 x 10 in, stack inside one frame. The patented stack equalizes pressure across the press zones, allowing bulk presses of up to 3/4 lb per squeeze. A hydraulic cylinder delivers 25 tons of force. Six precision heating elements give even, consistent heat across the platens. A triple PID controller box sets each platen independently. Drip technology lets the platens pivot so rosin drops onto a cool surface instead of pooling on hot metal. Faster cooling holds more terpenes and makes collection quicker. The frame is high-strength alloy steel manufactured in Northern California.

Running a Commercial Rosin Press at Volume

This commercial rosin press is sold as the press only, so plan for a pump. The cylinder works with air-hydraulic, electric or manual pump options, each sold separately. An air-hydraulic pump needs an air compressor sized to its rated air demand. The controller runs on 120V and needs a dedicated 20 amp circuit. The unit weighs 151 lb, so mount it on a sturdy bench at a comfortable working height. High pressure lets operators press at lower temperatures, which helps keep volatile terpenes. Dial in temperature and press time on small test runs before loading full bags. Pre-pressing material into even pucks helps it sit flat and press evenly across each platen. Use food-grade parchment and filter bags sized to the platens. Clean the platens while they are warm with a lint-free cloth and food-safe alcohol.

Key Features

• 25 tons of force: High pressure supports lower temperatures that protect terpenes.
• Three 6 x 10 in platens: Multi-platen stack presses up to 3/4 lb per squeeze.
• Six heating elements: Even, consistent heat across every press zone.
• Triple PID control: Independent temperature control for each platen.
• Drip technology: Pivoting platens drop rosin onto a cool surface.
• Pump options: Works with air-hydraulic, electric or manual pumps, sold separately.
• Alloy steel frame: High-strength power frame made in Northern California.

Technical Specifications
