What the TrolMaster DFM-3 Reads

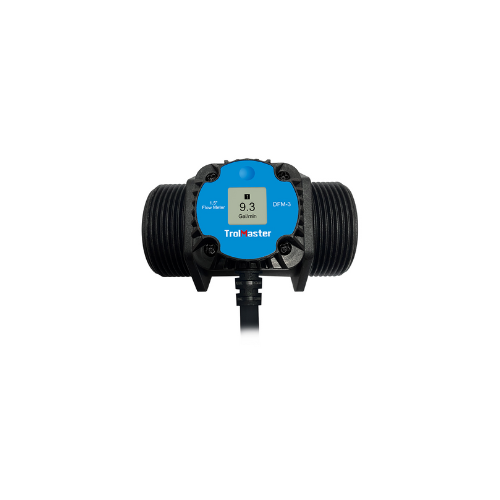

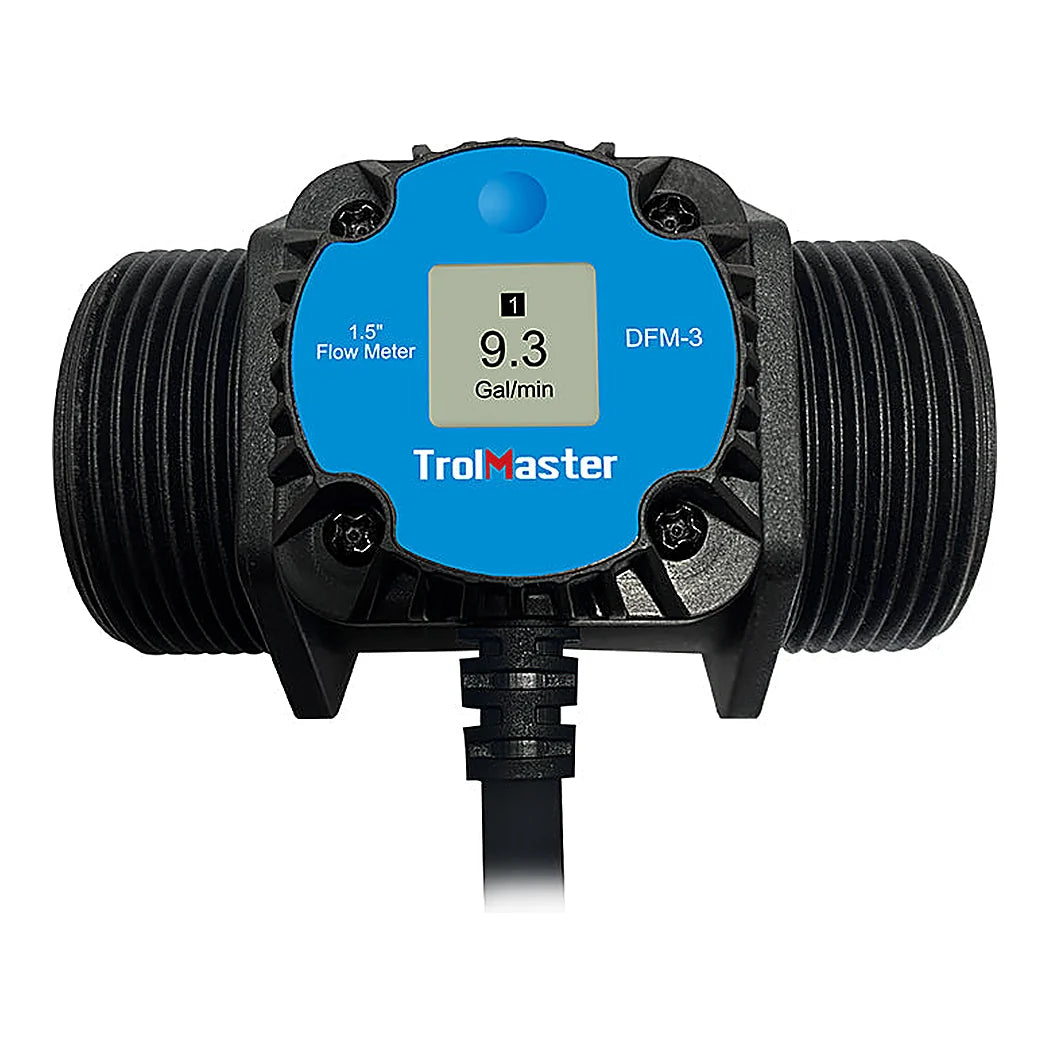

This meter installs inline on a 1.5 in water or nutrient main. It covers flows from 1.32 to 39.62 GPM (5 to 150 L/min). A 1 in LCD on the body shows the live flow rate and the running total at the pipe. The data also travels over a 16 ft RJ12 cable to the Aqua-X Pro. It connects to the controller directly or through an SPH-1 RJ12 splitter hub. With the Aqua-X Pro Feed by Volume function, every irrigation cycle stops at a set volume. The body uses BSP threads, with two BSP-to-NPT adaptors fitted at the factory. It is rated to 250 psi and works from 32 to 122 °F. The meter carries CE, FCC and ETL marks and weighs about 1.37 lb packed. TrolMaster backs it with a 3-year warranty.
Placing a 1.5 Inch Flow Meter on a Main Line
A 1.5 inch flow meter belongs where a large pump feeds a whole room or several zones. Install it downstream of the pump and filter, before the line branches to the zone valves. Orient it with the direction of flow and support heavy pipe on both sides of the meter. Use PTFE tape on the NPT adaptors and tighten without forcing the fittings. Keep the LCD facing the walkway so readings can be checked on every round. Run the RJ12 cable to the Aqua-X Pro or an SPH-1 hub, away from wet areas. Enter each zone's target volume and confirm the first totals with a measured fill. A total that climbs on an unchanged program points to a leak worth chasing. A total that falls often means filters or drippers need attention. Flush the pipework before installation so debris does not catch inside the meter. Installed with care, it keeps large rooms on a consistent, measurable feed.
Key Features
- 1.32 to 39.62 GPM range: Sized for 1.5 in irrigation mains.
- On-board LCD: Live flow rate and total volume at the pipe.
- Feed by Volume: Aqua-X Pro doses each cycle by gallons.
- 250 psi rating: Handles pressurised commercial lines.
- 3-year warranty: Backed by TrolMaster.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | TrolMaster |
| Model | DFM-3 |
| Pipe size | 1.5 in |
| Threads | BSP, 2 BSP-to-NPT adaptors pre-installed |
| Flow range | 1.32 to 39.62 GPM (5 to 150 L/min) |
| Pressure rating | Up to 250 psi (1.75 MPa) |
| Display | 1 in LCD, 64 x 64 dots |
| Output | Flow rate and total volume |
| Cable | 16 ft, RJ12 male |
| Compatible controller | Aqua-X Pro (direct or via SPH-1 hub) |
| Working environment | 32 to 122 °F, up to 90% RH |
| Certifications | CE, FCC, ETL |
| Package size | 255 x 135 x 80 mm |
| Gross weight | 1.37 lb |
| Warranty | 3 years |
| EAN | 6970207972247 |
