110V Control Board is specially designed for Aqua-X Irrigation Control System. It features 6 individually-controlled 110V outputs for the pump control in the Aqua-X Control System.
Features
- LED Power Indicator
- Addressing Button
- 6 Individually-Controlled 110V Outputs
- Individual LED Indicator for Each Output
- Double RJ12 Cable Sockets for Daisy Chain Connectivity

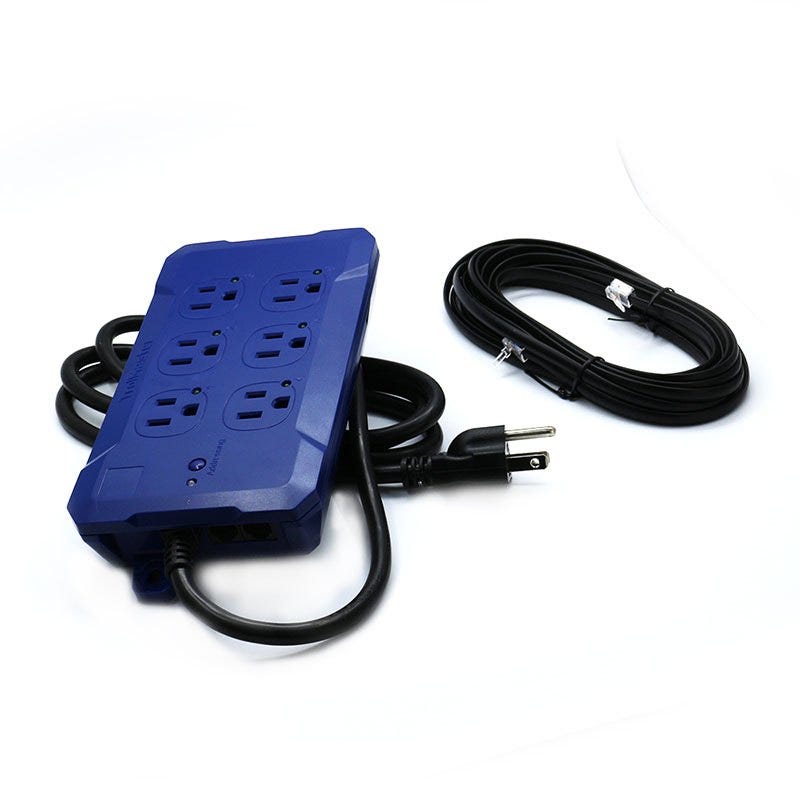

Package Contents:
1 x 110V Control Board
1 x 16ft RJ12 Cable
Input Voltage: 120 VAC
Max Input Current: 9A
Max Output Voltage/Current: 120VAC/1.5A per output
Working Environments: Temperature 32 °-122 °F, Humidity≤90%
Packaging Dimensions: 10.8"(L) x 6.5"(W) x 2.4"(H)
