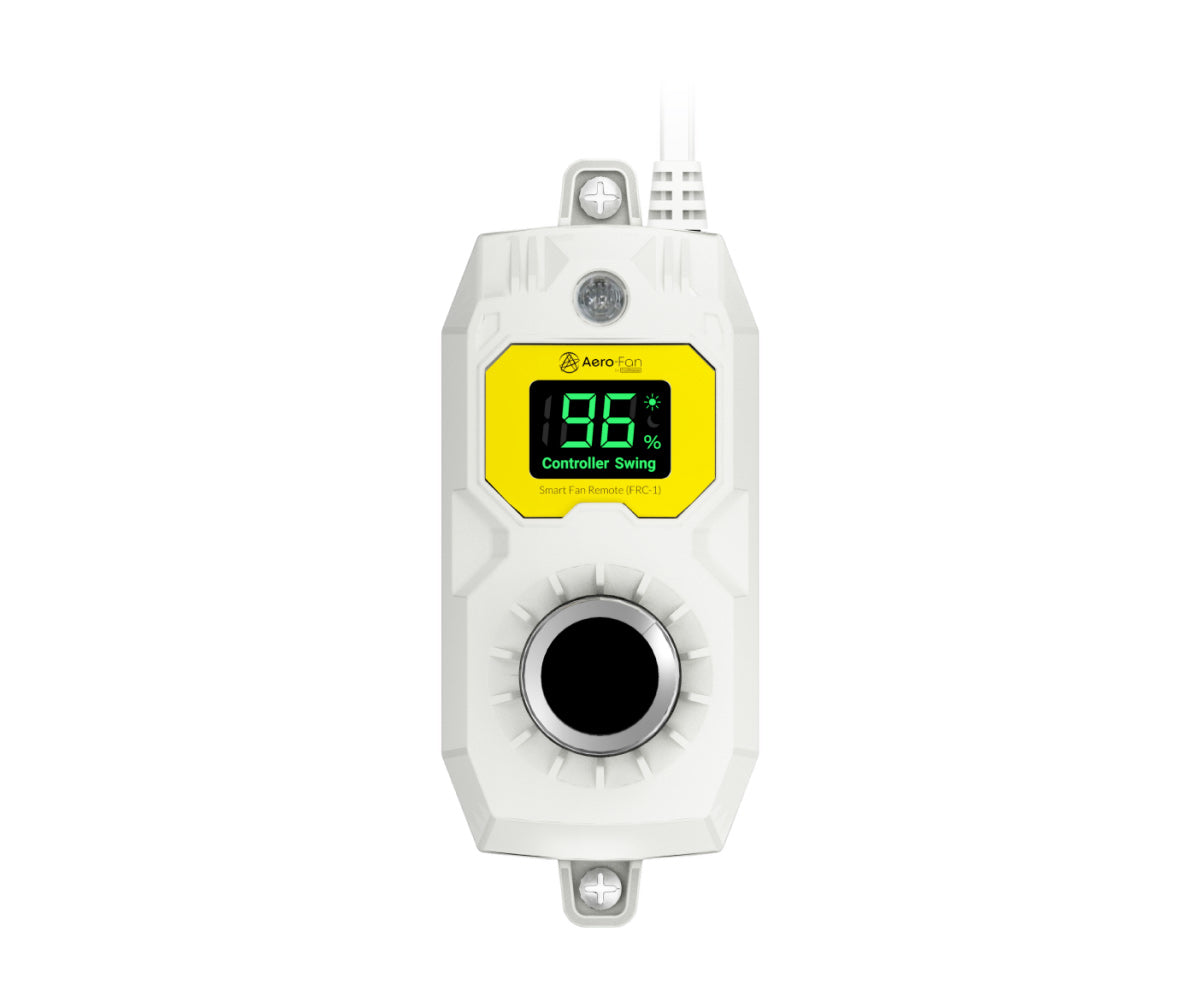

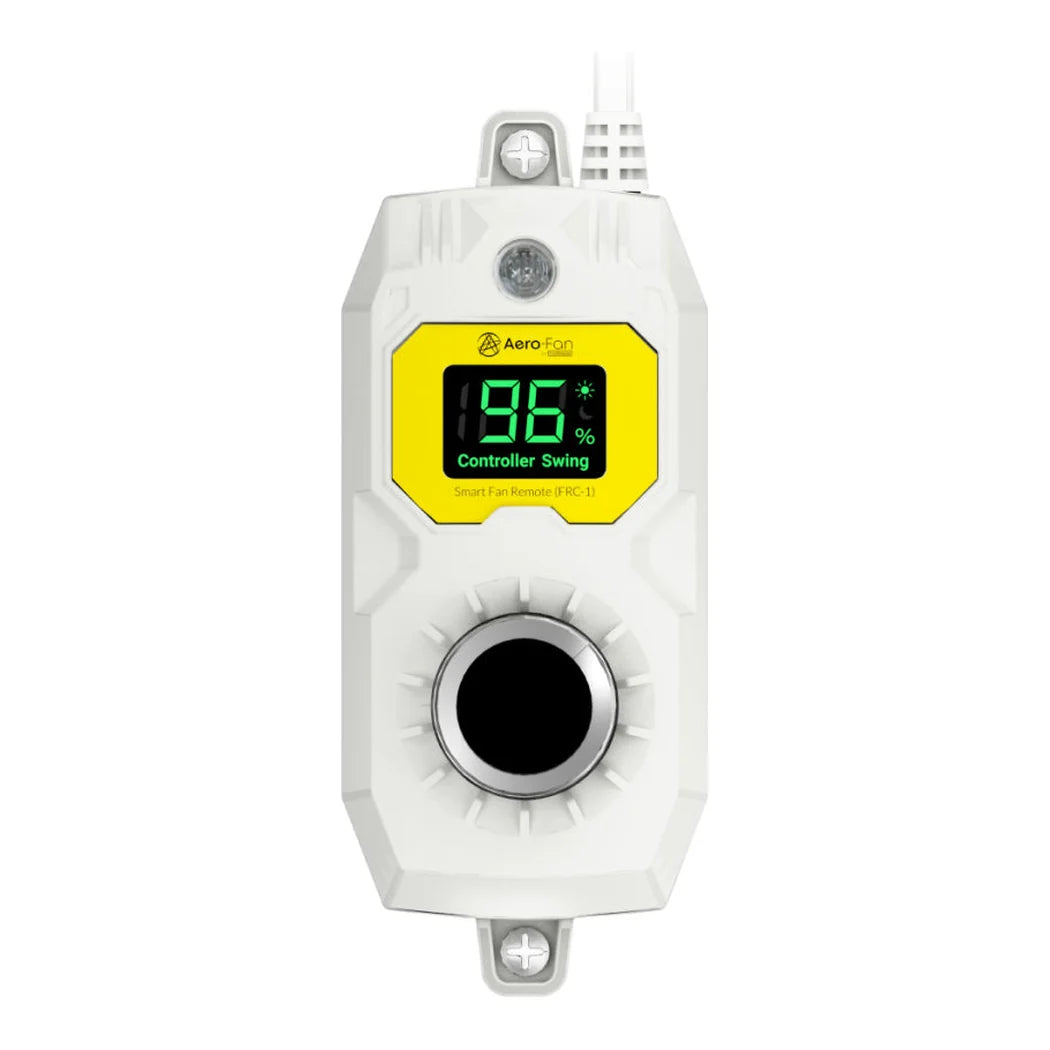

How the FRC-1 Splits Day and Night Automatically

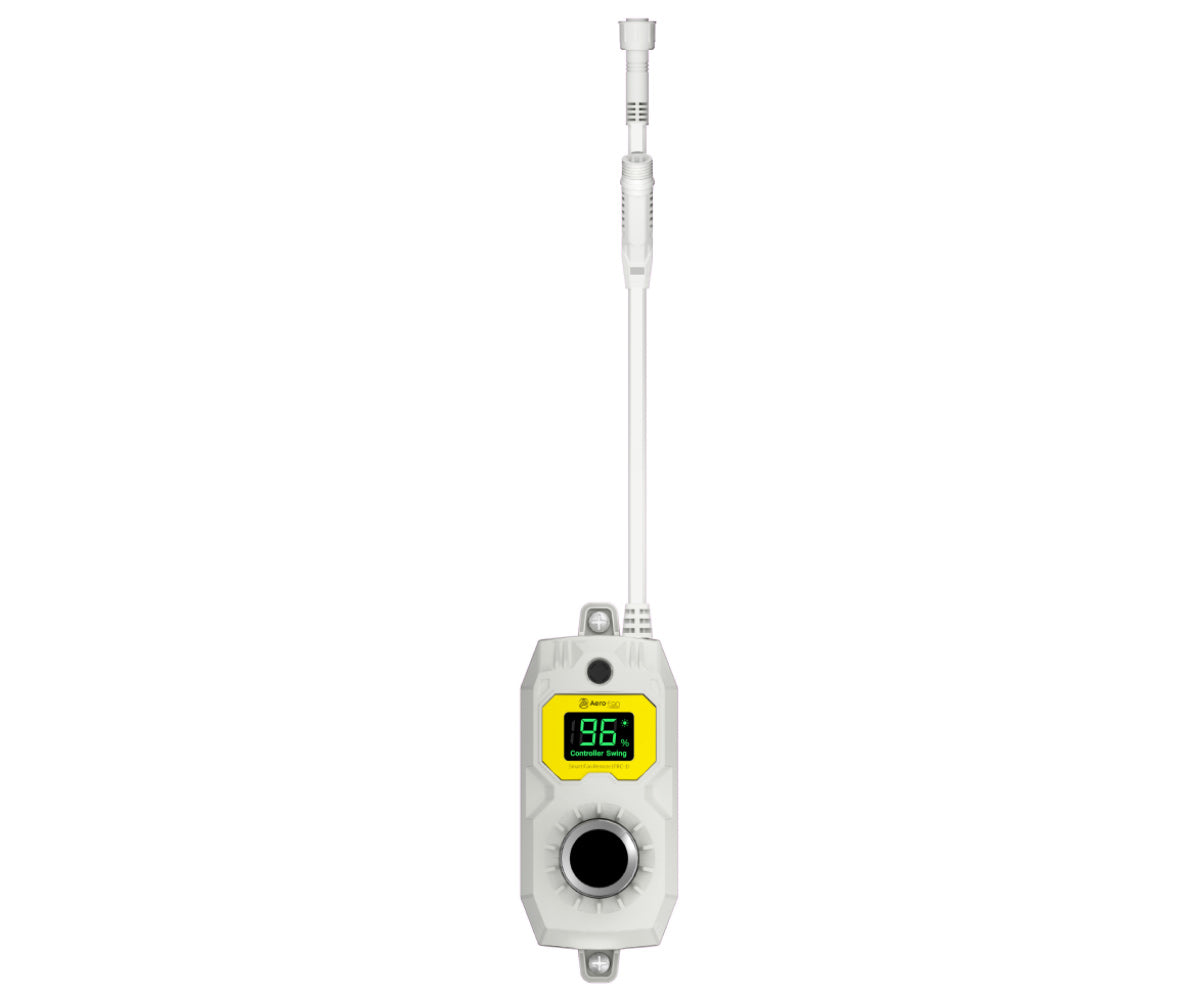

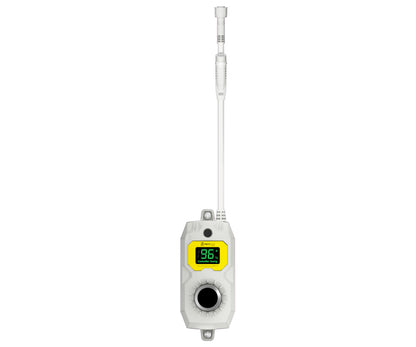

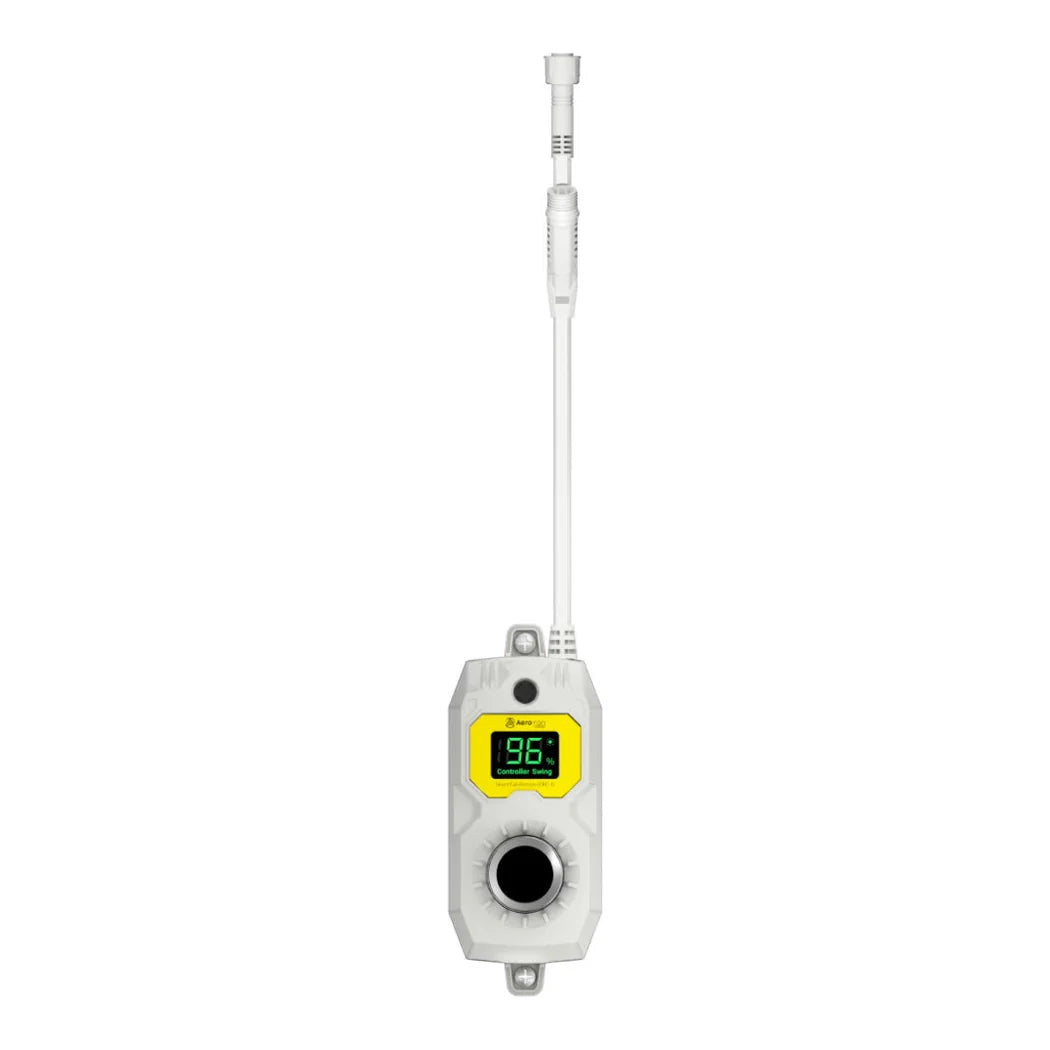

The photocell is what makes this different from a timer. A timer has to be kept in sync with your lights by hand, while this reads the room and switches between two levels you set. Speed and swing mode both follow. Control is a knob and a small LCD, and the unit runs on 12V at 0.1A through the supplied ECS-9 cable. It weighs 0.86 lbs and measures 6.30 by 3.39 by 3.39 inches.
Running a Group of Fans From One Fan Remote With Photocell
Group control is the practical win. One knob sets the level for every Aero-Fan wired into the chain, so a room stays balanced instead of drifting as people adjust individual units. Swing mode switches from the same place on fans that oscillate. It drives TrolMaster Aero-Fans and nothing else, so a mixed room of third-party fans will not respond to it. Rated conditions are 32°F to 104°F and up to 90 percent relative humidity.
Key Features
- Built-In Photocell: Reads the room light and switches day or night on its own.
- Separate Day and Night Levels: Two speeds, no timer to keep in sync with lights.
- Group Control: One knob for every Aero-Fan on the chain.
- Swing Mode Switching: Turns oscillation on and off from the same panel.
- LCD and Knob: Shows the level set rather than an unmarked dial position.
- 12V at 0.1A: Low-voltage control, powered through the ECS-9 cable.
- ECS-9 Cable Included: Ready to wire without a separate accessory.
- 0.86 lbs: Small enough to mount anywhere in the room.
Technical Specifications
| Specification | Value |
|---|---|
| Function | Aero-Fan speed and swing control |
| Day/Night | Built-in photocell |
| Input Voltage | 12V |
| Current Draw | 0.1 A |
| Display | LCD |
| Dimensions | 6.30 x 3.39 x 3.39 in |
| Net Weight | 0.86 lbs |
| Operating Temperature | 32 to 104 °F |
| Operating Humidity | 90 percent max |
| Included | ECS-9 cable |
