Brand: TrolMaster

Trolmaster Alarm Station

Trolmaster Alarm Station

SKU: SKU:AS-5

Ordering a large quantity of this item?
As long as the order total is more than $2K you can:

Regular price $44.89 USD
Regular price $44.89 USD Sale price $44.89 USD
Sale Sold out
Shipping calculated at checkout.

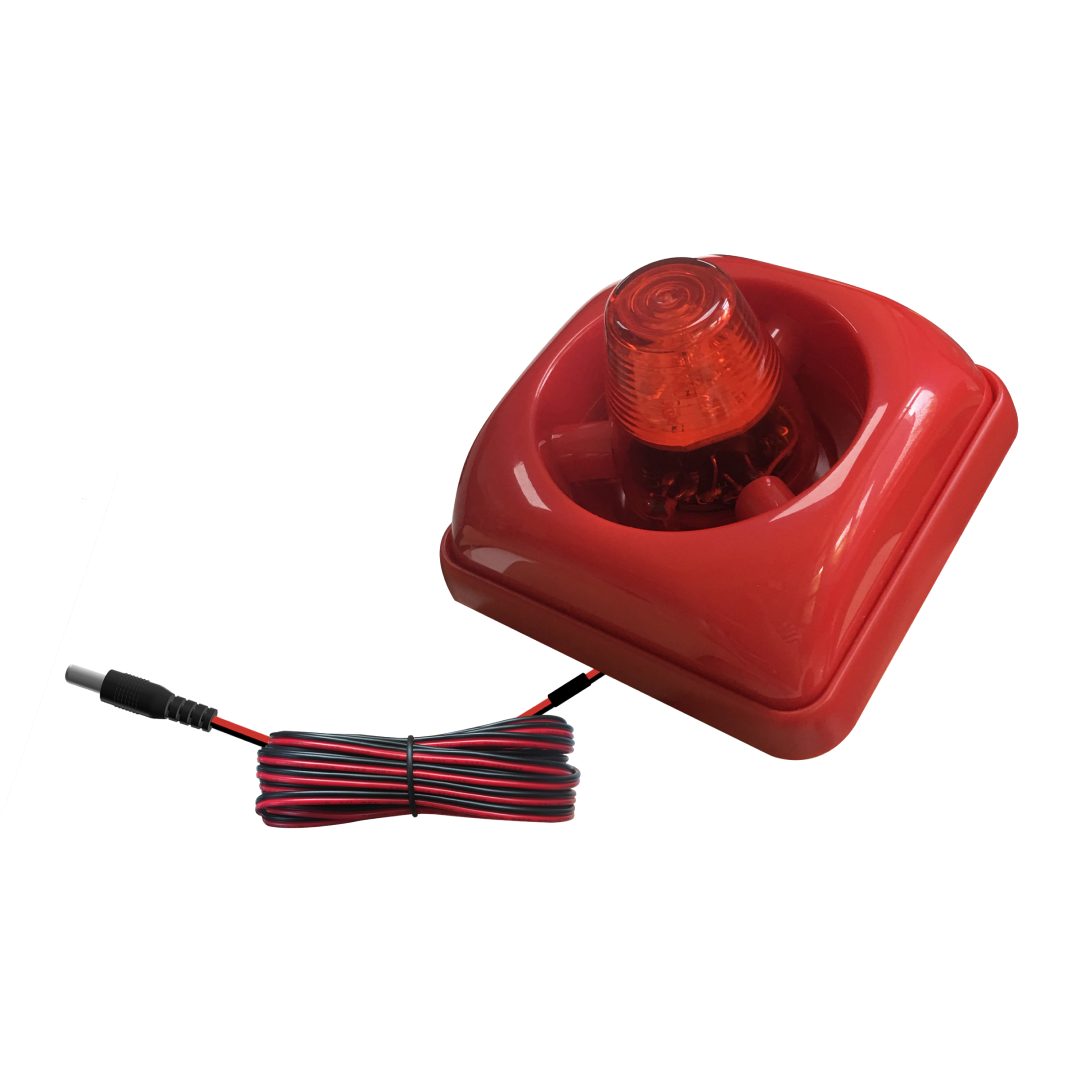

The TrolMaster AS-5 Alarm Station is a siren and red strobe that sounds when a TrolMaster controller flags a reading outside its limits. Mount it in the room or out in the hallway where someone will notice.

View full details

What the TrolMaster AS-5 Alarm Station Does

The AS-5 is an audible and visual alarm for TrolMaster climate and CO2 systems. It plugs straight into a Hydro-X Pro (HCS-2) or a Hydro-X Plus (HCS-3), and the Aqua-X Pro (NFS-2) accepts it too. On a Carbon-X CO2 system it is powered by the DSD-1 Dry Contact Station. There it links to the CDA-1 and follows the AL-1 or AL-2 CO2 sensor channel, or both channels for full redundancy. When the controller trips an alarm, the siren sounds at 85 dB and a red strobe flashes 120 times a minute. Power arrives through a DC 5.5 x 2.1 mm male connector at 12 or 24 V DC, and the draw is 60 mA. The housing measures 82 by 82 by 51 mm, about 3.2 by 3.2 by 2 in, and weighs 3 oz. It is rated for 32 to 122 °F at humidity of 90 percent or less. The distributor part number is TRCAS5, and TrolMaster backs it with a three year warranty. The box holds the alarm station alone.

Placing a Grow Room Alarm Where It Gets Noticed

A grow room alarm only helps if a person sees or hears it in time to act. Inside a flowering room, fans and dehumidifiers can bury a siren, and a closed door muffles it further. Many growers mount the station in the hallway or at the room entrance for that reason. Anyone walking past then sees the strobe before opening the door. In a CO2 enrichment room, the strobe tells staff to wait before walking in. Wiring it to both CO2 sensor channels gives a second path if one sensor fails. Pick a spot at eye height with a clear line of sight from the corridor. Keep it away from irrigation lines, hose bibs and the spray of a cleaning wand. Test it after every controller change by pushing a setpoint briefly out of range. Then set the limits back and note the test in the room log. Teach every person on the team what the red light means and who to call. The station signals a problem and leaves the fix to the controller and the crew. Power and the alarm signal come from the controller or the DSD-1, so plan that run before mounting.

Key Features

  • Siren and strobe: 85 dB siren with a red strobe at 120 flashes a minute.
  • Hydro-X direct: Plugs into the Hydro-X Pro (HCS-2) and Hydro-X Plus (HCS-3).
  • Aqua-X Pro: Also works with the NFS-2.
  • Carbon-X ready: Powered by the DSD-1; follows the AL-1, AL-2 or both CO2 channels through the CDA-1.
  • Low draw: 12 or 24 V DC at 60 mA.
  • Compact housing: 82 x 82 x 51 mm, 3 oz.
  • Flexible placement: Mounts inside the room or outside in a hallway.
  • Three year warranty: Covered by TrolMaster.
Trolmaster Alarm Station

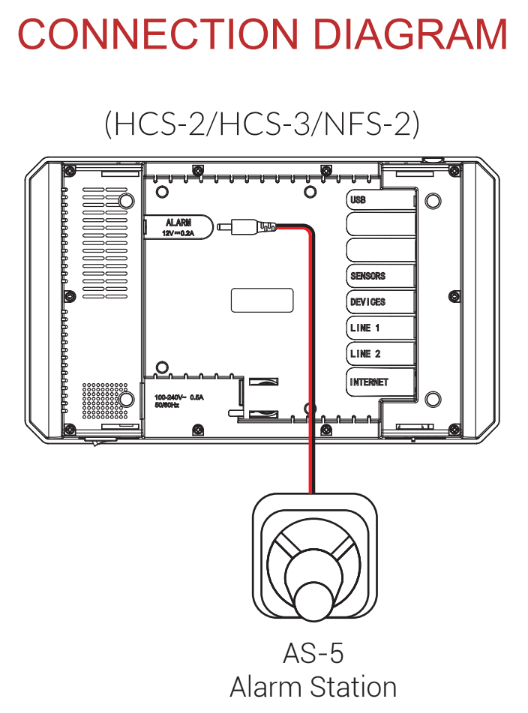

Trolmaster Alarm Station Diagram

Technical Specifications

Specification Value
Brand TrolMaster
Model AS-5
Distributor part number TRCAS5
EAN 6970207972223
Compatible controllers Hydro-X Pro (HCS-2), Hydro-X Plus (HCS-3), Aqua-X Pro (NFS-2)
Carbon-X connection Powered by DSD-1, linked to CDA-1 (AL-1, AL-2 or both channels)
Siren 85 dB
Strobe Red, 120 flashes per minute
Rated voltage 12 V / 24 V DC
Rated current 60 mA
Input connector DC 5.5 x 2.1 mm male
Operating range 32 - 122 °F (0 - 50 °C), humidity 90% or less
Product size 82 x 82 x 51 mm (3.23 x 3.23 x 2 in)
Product weight 3.00 oz (85 g)
Package size 85 x 80 x 90 mm
Gross weight 4.73 oz (134 g)
In the box 1 x AS-5 alarm station
Warranty 3 years
