TrolMaster DSC-1 CO2 Device Station, 10 A Control Relay with RJ12 Cable Set

TrolMaster DSC-1 CO2 Device Station, 10 A Control Relay with RJ12 Cable Set

SKU: SKU:DSC-1

Ordering a large quantity of this item?
As long as the order total is more than $2K you can:

Regular price $69.83 USD
Regular price $69.83 USD Sale price $69.83 USD
Sale Sold out
Shipping calculated at checkout.

The TrolMaster DSC-1 is a plug-in relay module that lets a TrolMaster controller switch CO2 equipment on and off. It handles any CO2 device drawing 10 amps or less at 120 volts and ships with a full RJ12 cable set.

View full details

TrolMaster DSC-1: Put CO2 Equipment Under Controller Command

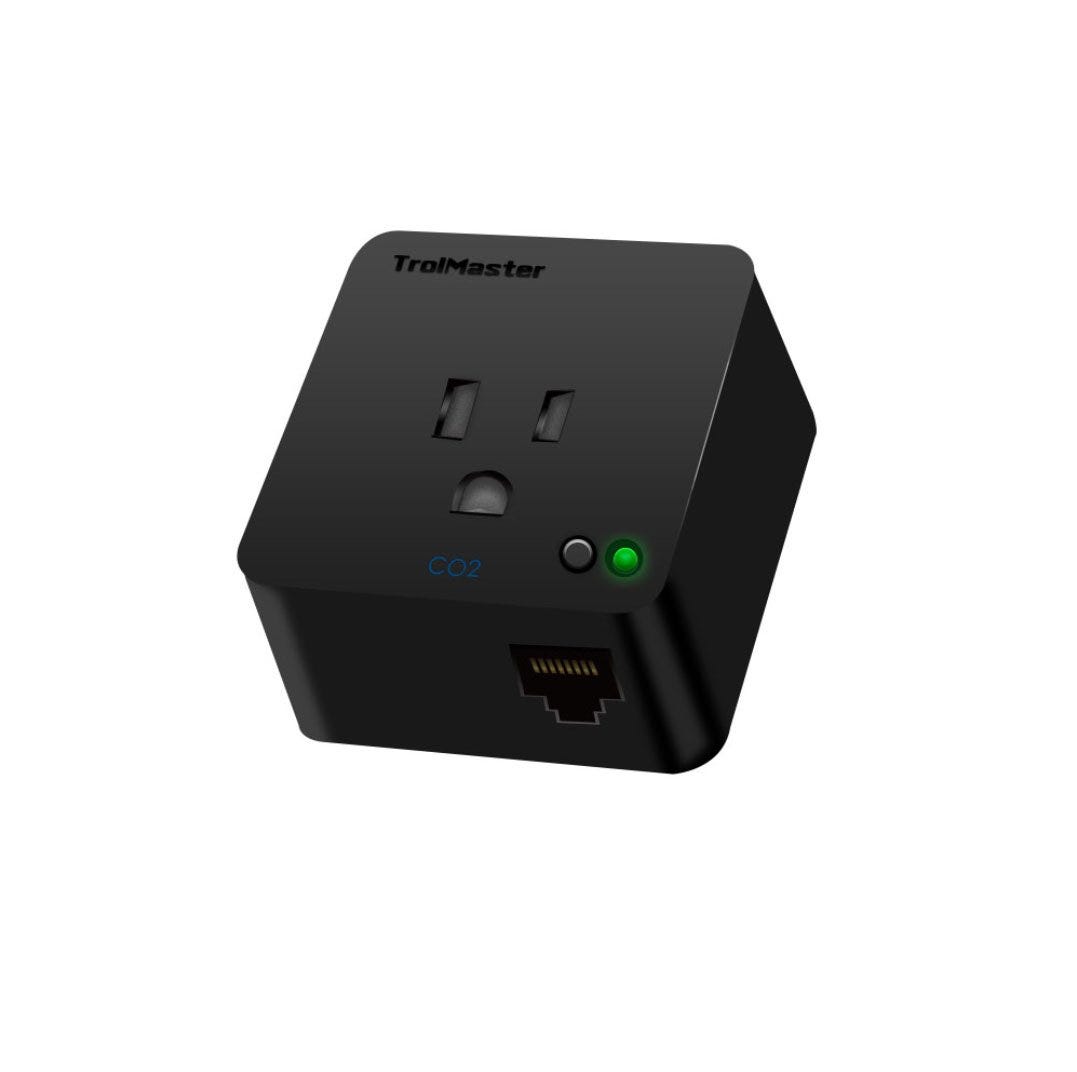

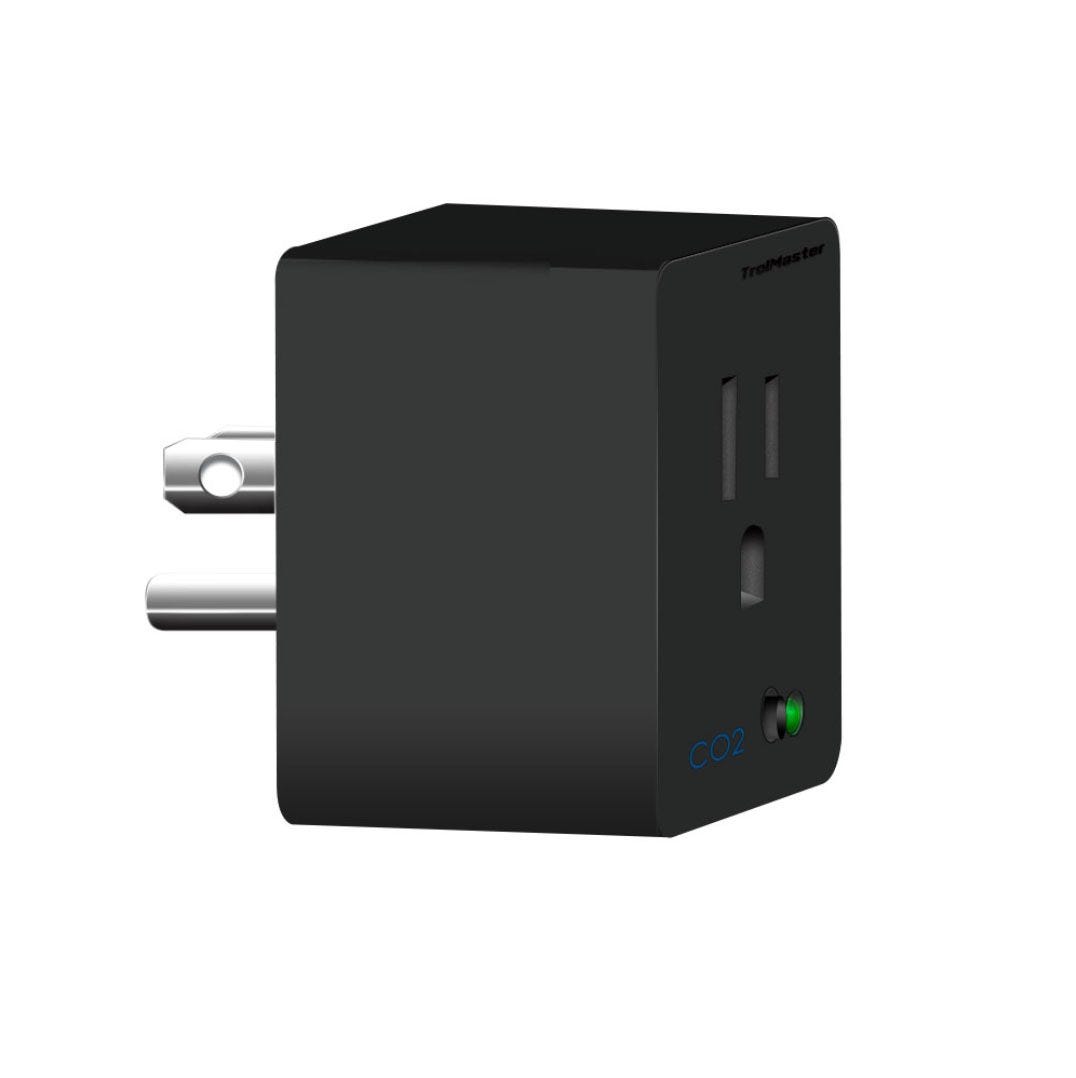

This module sits between a wall outlet and your CO2 equipment, turning it into an output the controller can switch. It links to a TrolMaster Hydro-X, Hydro-X Pro or Hydro-X Plus main unit by RJ12 cable. TrolMaster rates it for any CO2 device that draws 10 amps or less at 120 volts. That covers regulator solenoids, CO2 generators and the exhaust controls tied to CO2 venting. Once addressed, the controller turns the outlet on and off based on its CO2 readings and your settings. In a Carbon-X CO2 safety system, the same station serves as a controlled outlet for ventilation. There it switches fans on if a fault or a high CO2 level is detected. The station accepts input from 100 to 240 volts AC at 50 or 60 Hz. It plugs in with a 3-prong attaching plug, and a status LED shows its condition at a glance. TrolMaster supplies a 16 ft RJ12 cable, a 4 ft RJ12 cable and an RJ12 T-splitter in the box. The station body measures about 2.4 x 2.4 x 2.3 in. The station is ETL and FCC registered.

Adding a CO2 Device Station to Your Controller

Run the RJ12 cable from the controller, or from the last module in the chain, to the station. The T-splitter lets you branch the cable so more modules can join the same line. Plug the station into an outlet, then plug your CO2 device into the station. On first install, press the small address button so the controller can find it. A fast-blinking green light means the station is not yet addressed or the cable connection is poor. Slow-blinking green shows it is addressed and currently off. Solid green means the controller has switched it on. A blinking red light signals an overload, which you clear by unplugging the station from power. Assign the station to CO2 control in the controller menu and set your target levels. Keep the total load on the outlet under the rated current. The station works in rooms from 32 to 122°F with humidity at 90% or lower. Mount it off the floor and away from irrigation lines, since water and outlets do not mix.

Key Features

  • CO2 control outlet: Switches CO2 devices up to 10 A at 120 V.
  • Hydro-X and Carbon-X: Links by RJ12 to TrolMaster main controllers.
  • Plug and play: Press the address button once and it joins the system.
  • Status LED: Shows addressing, on/off state and overload at a glance.
  • Full cable set: 16 ft and 4 ft RJ12 cables plus a T-splitter.
  • Wide input range: Accepts 100 to 240 VAC, 50/60 Hz.

Technical Specifications

Specification Value
Model DSC-1
Function CO2 device control relay
Controllers TrolMaster Hydro-X (HCS-1, HCS-2, HCS-3); Carbon-X
Input voltage 100-240 VAC, 50/60 Hz
Output voltage 100-240 VAC, 50/60 Hz
Output current 10 A
Rated load CO2 devices 10 A at 120 V or less
Operating environment 32-122°F (0-50°C), 90% RH or less
Station size About 2.36 x 2.36 x 2.26 in (60 x 60 x 57.5 mm)
Package size 3.35 x 3.15 x 3.54 in (85 x 80 x 90 mm)
Gross weight 12.0 oz (340 g)
Included Device station, 16 ft RJ12 cable, 4 ft RJ12 cable, RJ12 T-splitter
Certifications ETL, FCC
EAN 6970207970335
