What a CO2 Alarm Station AS-4 Needs Around It

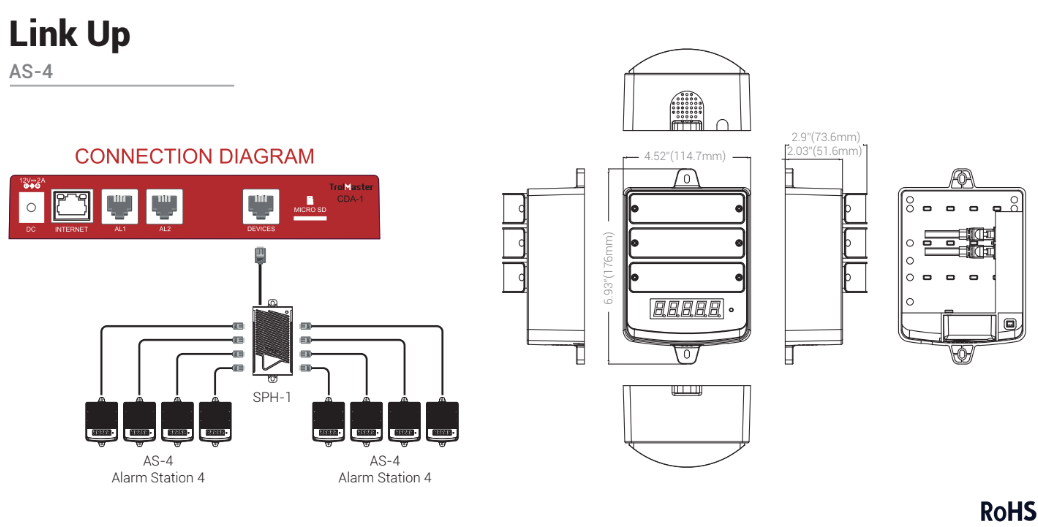

Two requirements on this alarm are easy to miss on a device described as plug and go. The first is the controller. This head displays and alarms, but the threshold it alarms against is set on a Carbon-X main controller. Without a Carbon-X in the installation there is nothing to tell it what counts as too high. The second requirement is power. The unit requires an SPH-1 for supplemental power, and that is a separate item which is not in this box. Then there is the sensing. The alarm reads from a Trolmaster CO2 sensor channel, either an AL-1 or an AL-2. It can be wired to one channel or to both. Wiring both channels gives redundancy. On a device whose only job is to warn a person, a second channel is worth the cost. It is not an upgrade to consider later. What actually arrives is the alarm station and a sixteen foot RJ12 cable, and nothing else. Anyone budgeting this as a complete CO2 monitor will be short a controller, a sensor and a power supply. Better to know that now than on the day it is unboxed.
Choosing Blue or Amber on a Trolmaster Carbon-X System
The AS-4 and the AS-3 are the same device with a different coloured lens, and nothing else separates them. So the choice is practical rather than technical. Look at what is already mounted on that wall and pick the colour that is not there. If the building already uses amber beacons for machinery faults or for a fire panel, a blue head reads instantly as something else. If the room is lit by high pressure sodium, blue stands out against that orange cast far better than amber does. Amber is the better choice under a blue heavy light emitting diode spectrum, for the same reason in reverse. There is one more consideration that nobody raises. Red and green colour blindness is common, and neither of these two colours is affected by it. That is part of why amber and blue are the two on offer. What both models share is worth stating plainly. Each gives an LCD parts per million readout alongside the alarm, so staff see the actual number rather than only an alarm state. Each works from thirty two to one hundred and twenty two degrees Fahrenheit at up to ninety percent humidity. Each carries a three year warranty, and the price is the same either way.
Key Features
- Not a standalone monitor: A Carbon-X controller, a sensor and an SPH-1 power supply are all needed.
- Blue LED plus audible alarm: Both trigger together when the controller's threshold is crossed.

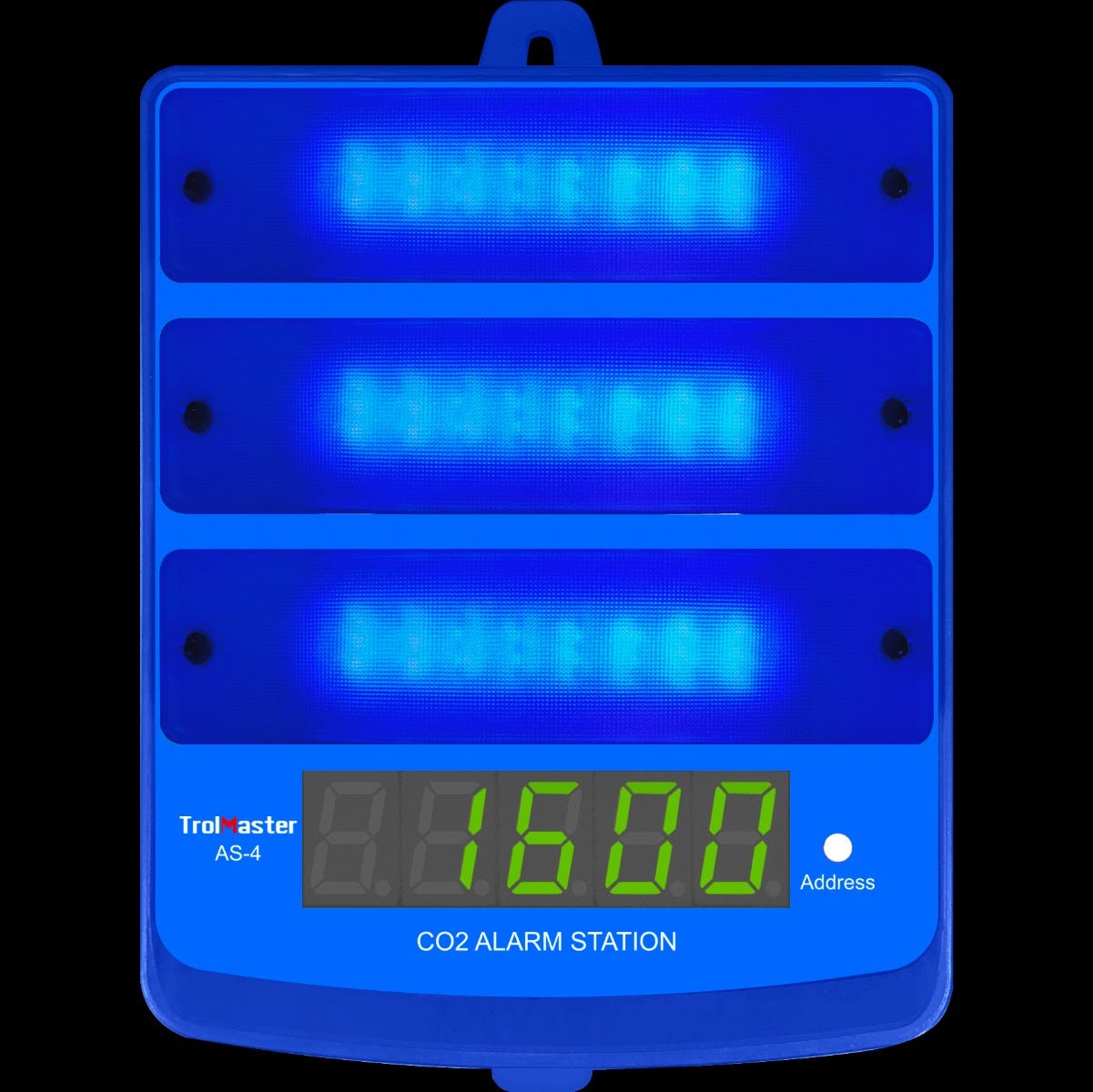

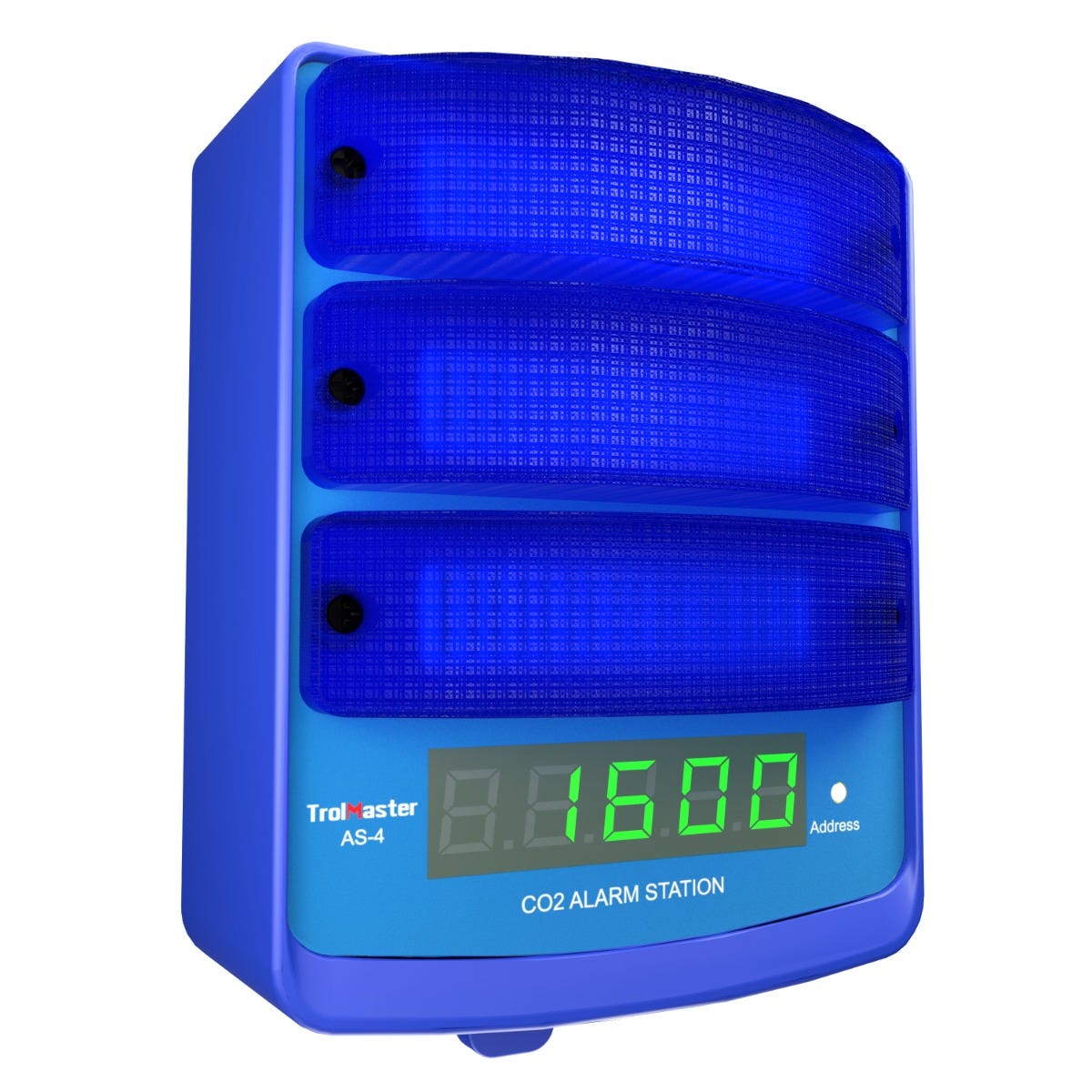

- LCD parts per million readout: Staff see the number, not just an alarm state.
- Identical to the amber AS-3: Same device, same price, different coloured lens.
- Pick the colour not already on the wall: Blue reads clearly under high pressure sodium; amber reads better under blue heavy LED.
- AL-1 or AL-2 sensor channels: One or both. Both gives redundancy on a warning device.
- Sixteen foot RJ12 cable included: And nothing else; the controller and power supply are separate.
- Three year warranty: Working range 32 to 122 F at up to 90% humidity.
Technical Specifications
| Specification | Value |
|---|---|
| SKU | AS-4 |
| Brand | Trolmaster |

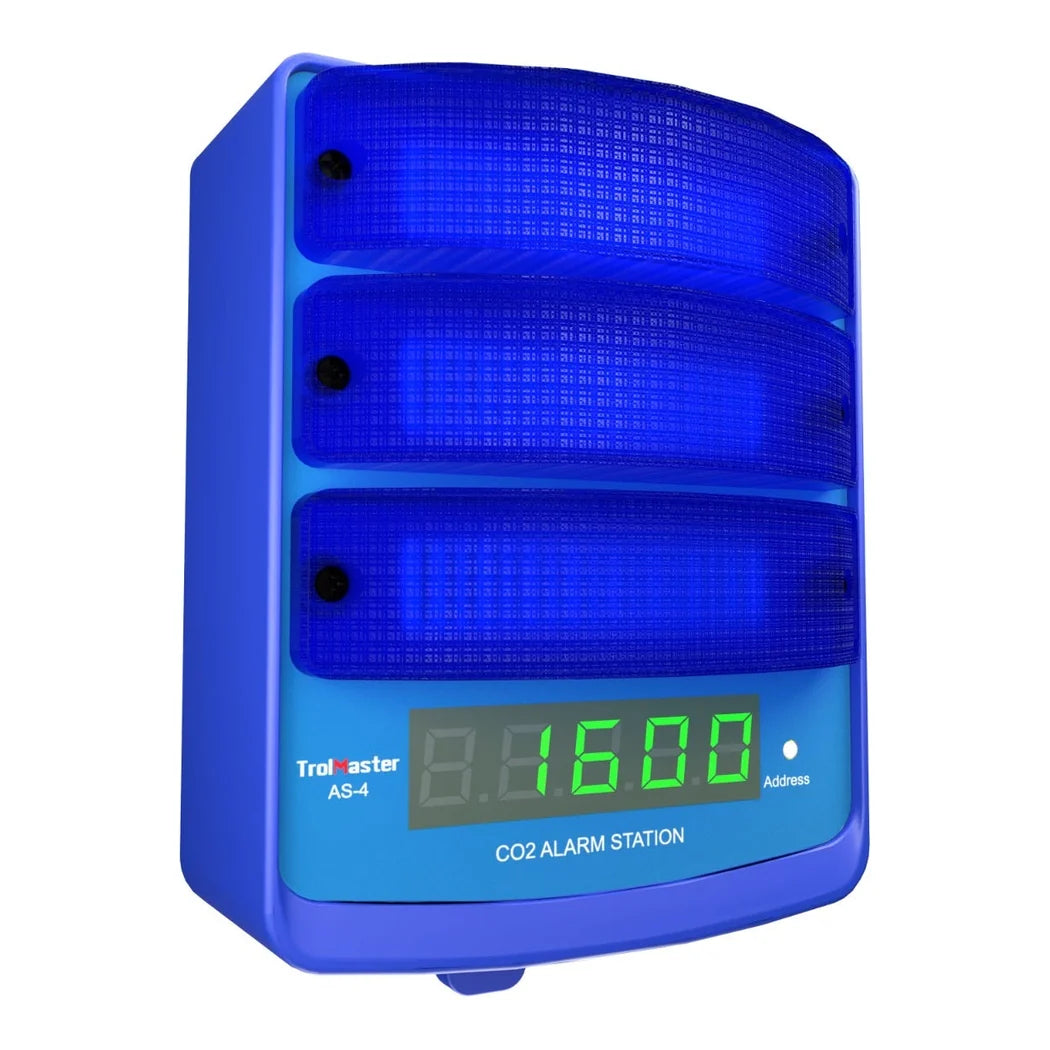

| Product | CO2 high level alarm station, blue light |
| Function | Audible and visual alarm plus LCD ppm readout, mounted outside the room |
| LED colour | Blue. The AS-3 is the same device in amber, at the same price |
| Sensor channels | AL-1 or AL-2; one or both |
| Threshold set on | The Carbon-X main controller, not on this unit |
| Carbon-X controller required | Yes |
| Supplemental power | SPH-1 required; not included |
| Audible alarm | Yes |
| In the box | 1x alarm station, 1x 16 ft RJ12 cable |
| Operating temperature | 32 to 122 F |
| Operating humidity | Up to 90% |
| Package dimensions | 130 x 187 x 88 mm |
| Warranty | 3 year |
| Barcode | 6970207971738 |
