What the TrolMaster CO2 Sensor Measures

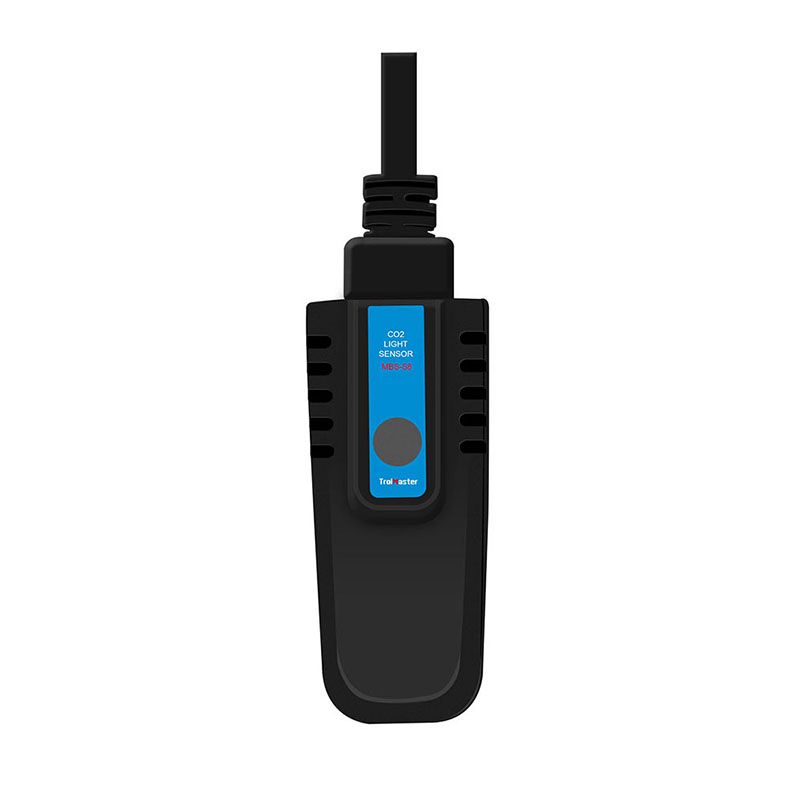

The MBS-S8 is the CO2 sensor for the TrolMaster Hydro-X climate controller. It measures carbon dioxide in parts per million at the point where it hangs and sends that reading to the controller. The sensing cell is NDIR type with a 0 to 10,000 ppm range. A photocell built into the housing tells the controller whether the lights are on or off. On its own the sensor only reports. Control comes from one or more DSC-1 CO2 device stations, which switch a tank solenoid or a burner relay. The box holds the sensor, a 16 ft RJ12 cable and an RJ12 T-splitter for sharing the sensor bus. It is rated for 32 to 122 °F at humidity of 90 percent or less. The retail package measures 160 by 86 by 86 mm and ships at 0.82 lb. It carries CE and ETL registration, and TrolMaster backs it with a three year warranty. The distributor part number is TRCMBSS8.
Placing a Hydro-X CO2 Sensor for Readings You Can Trust
A Hydro-X CO2 sensor is only as good as the air it samples. Hang it at canopy height, near the middle of the room, where plants are drawing the gas down. Keep it clear of fan outlets, return vents, exterior walls and the CO2 injection point. A sensor in a fan blast or next to the regulator reads the air stream rather than the room. Plants use extra CO2 only while the lights are on, and the photocell lets the controller stop dosing at lights off. That saves gas and keeps the room from building up overnight. Set the target only after light intensity and feeding are dialed in, because enrichment adds little when light is the limit. Give exhaust fans and CO2 dosing separate windows so they do not fight each other. Watch the first week of readings against a handheld meter before trusting the loop. Keep the sensor dry and clean. The housing is not water resistant, so foliar spraying, condensation or a hose nearby can end its life early. Ventilate a sealed enriched room before anyone works inside it for long.
Key Features
- CO2 in ppm: NDIR sensing with a 0 to 10,000 ppm range.
- Day/night photocell: Lets the controller dose only during the light period.
- Hydro-X sensor: Reports to the Hydro-X climate controller.
- DSC-1 control: Pairs with one or more DSC-1 stations for a tank solenoid or burner.

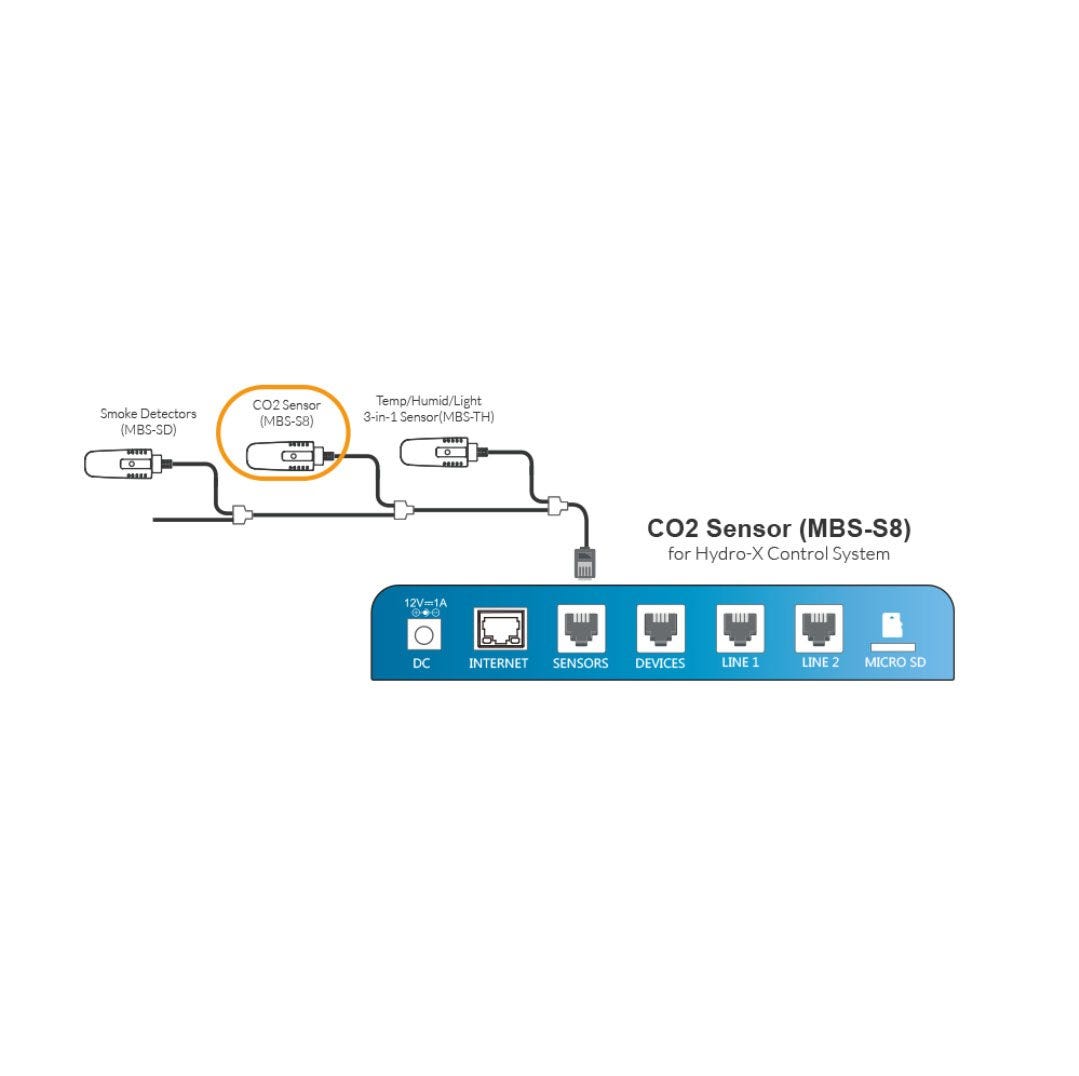

- Cable set included: 16 ft RJ12 cable and an RJ12 T-splitter.
- Working range: 32 to 122 °F, humidity 90 percent or less.
- CE and ETL: Registered for both.
- Three year warranty: Covered by TrolMaster.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | TrolMaster |
| Model | MBS-S8 |
| Distributor part number | TRCMBSS8 |
| EAN | 6970207970410 |
| Measures | CO2 (ppm) |
| Sensor type | NDIR |
| Range | 0 - 10,000 ppm |
| Day/night detection | Built-in photocell |
| Controller | TrolMaster Hydro-X |
| CO2 control | Via DSC-1 CO2 device station |
| Connection | RJ12 |
| Operating range | 32 - 122 °F (0 - 50 °C), humidity 90% or less |
| In the box | 1 x CO2 sensor, 1 x 16 ft RJ12 cable, 1 x RJ12 T-splitter |
| Package size | 160 x 86 x 86 mm |
| Gross weight | 0.82 lb (0.37 kg) |
| Certifications | CE, ETL |
| Warranty | 3 years |
