What the TrolMaster Hawkeye Measures

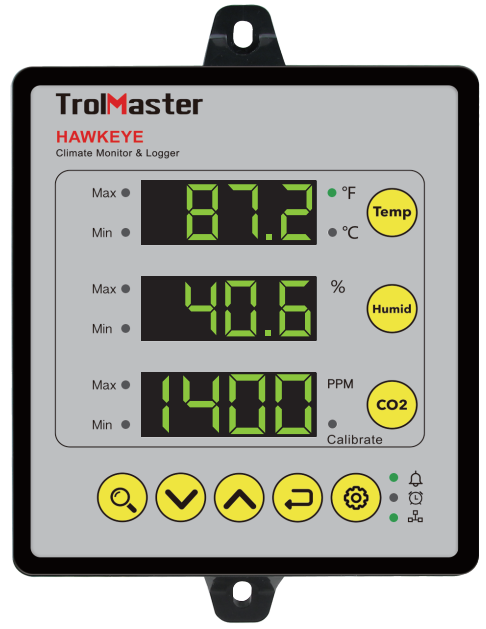

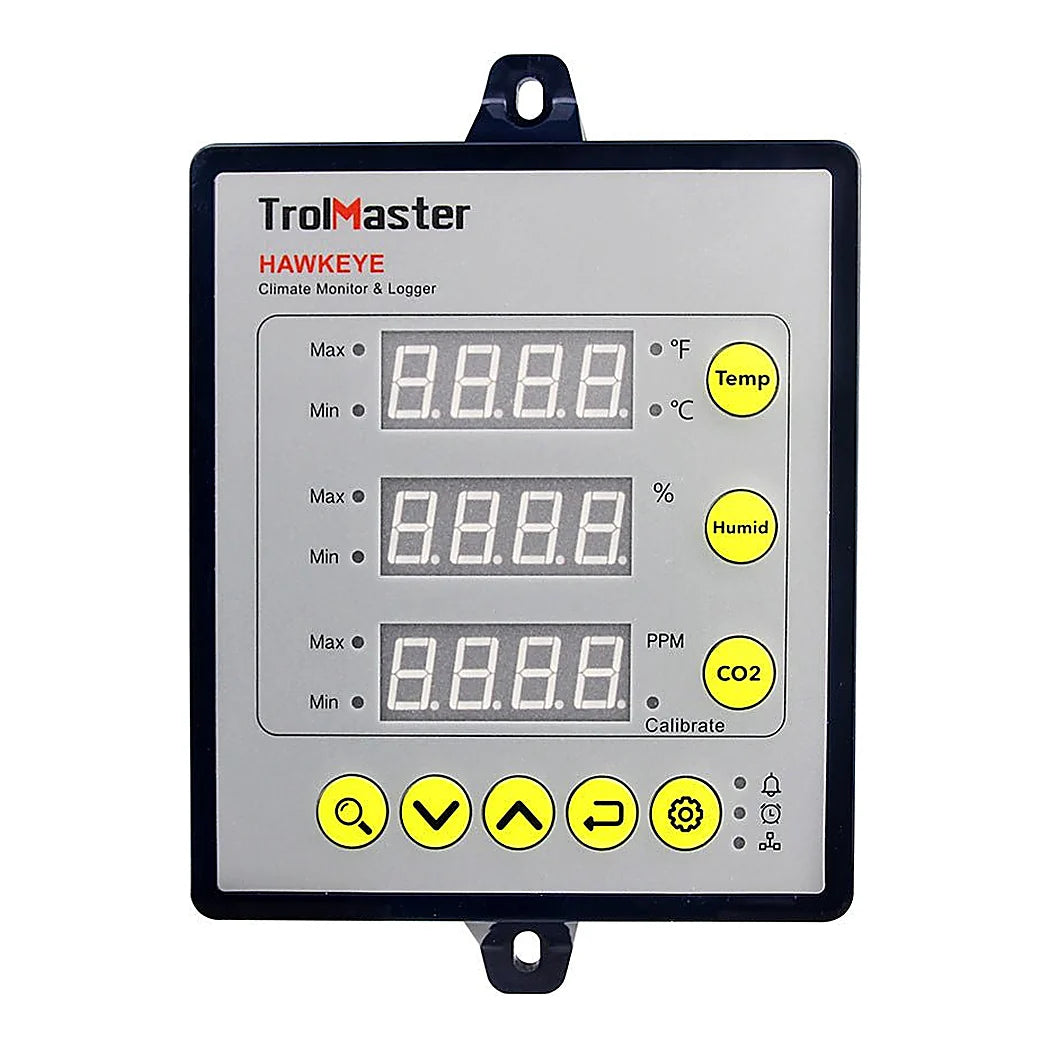

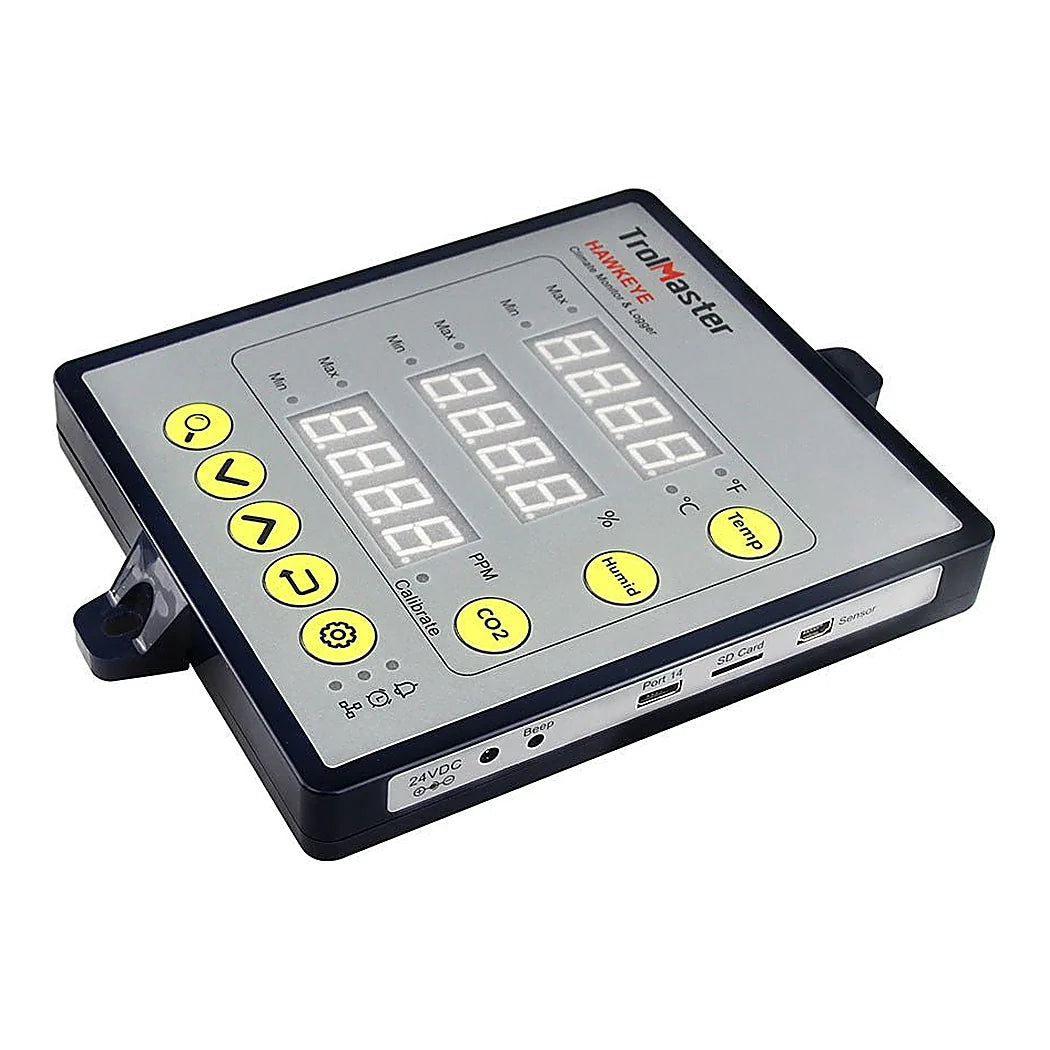

This is a monitor rather than a controller, and that is the point of it. It reads temperature, humidity and carbon dioxide from one three in one sensor on a sixteen foot cable. Vapour pressure deficit is derived from the first two. Temperature covers 0 to 59 degrees Celsius to within two tenths of a degree. Humidity reads 5 to 95 percent to within seven percent. Carbon dioxide reads 0 to 2000 parts per million to within thirty parts per million. Three LED screens show the current values at a glance from across the room. Each parameter carries its own minimum and maximum setpoint, and an audible alarm sounds when a reading leaves that band. The alarm is on by default, which is the right way round for a monitor.
Using a Climate Monitor for Records Rather Than Control
The logging is the real reason to fit one. A MicroSD card up to 128 gigabytes slots into the unit, and it writes a record every fifteen seconds in plain text. That is a genuine audit trail rather than a graph you cannot export. Connect it to the network through a TrolMaster ethernet adapter or smartphone module and the app shows trends, history and alerts on a phone. Satellite services from HughesNet and Viasat will not carry it, which is worth knowing on a rural site. Power is 100 to 240 volts at 50 or 60 hertz, drawing up to 0.6 amps, with a 24 volt DC output. The carbon dioxide reading calibrates in about ninety seconds with the room at ambient. Fit the sensor at canopy height rather than beside the door, because a monitor recording the wrong place is worse than no record at all.
Key Features
- Three Readings, One Sensor: Temperature, humidity and carbon dioxide arrive from a single probe on a sixteen foot cable.
- Vapour Pressure Deficit: VPD is derived from temperature and humidity, so the number you act on is on the screen.
- Per-Parameter Alarms: Each reading carries its own minimum and maximum, with the audible alarm enabled by default.
- MicroSD Logging: A card up to 128 gigabytes records every fifteen seconds in plain text you can open anywhere.
- App Access: With an ethernet adapter or smartphone module the app shows trends, history and alerts remotely.
- Three LED Screens: Current values stay readable from across the room without waking a phone to check them.
Technical Specifications
| Specification | Value |
|---|---|
| Measures | Temperature, humidity, CO2, derived VPD |
| Temperature Range | 0-59.0 C, accuracy +/-0.20 C |
| Humidity Range | 5-95% RH, accuracy +/-7% |
| CO2 Range | 0-2000 PPM, accuracy +/-30 PPM |

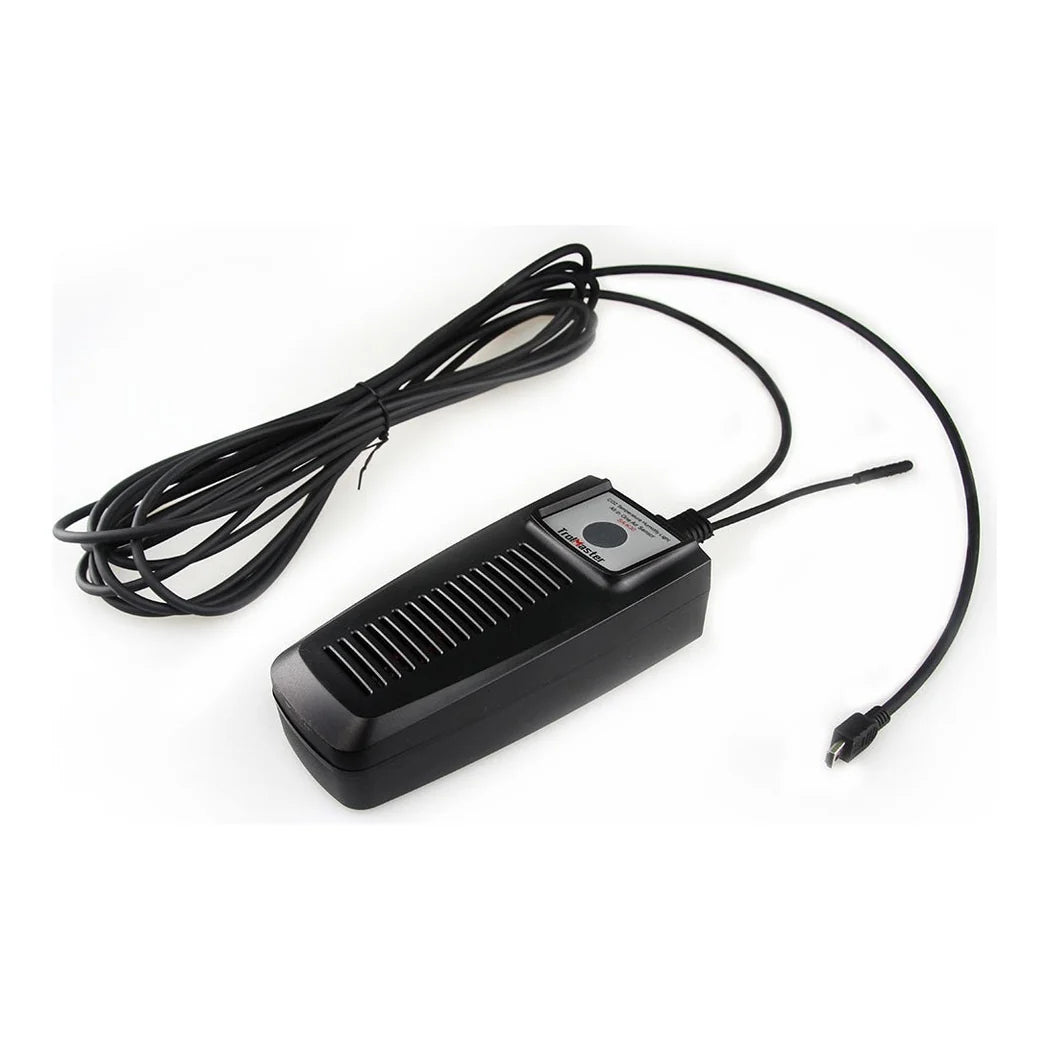

| Sensor | 3-in-1 probe on a 16 ft cable |
| Data Logging | MicroSD up to 128 GB, one record every 15 seconds, plain text |
| Connectivity | TrolMaster ethernet adapter or smartphone module; not compatible with HughesNet or Viasat |
| Input Power | 100-240 VAC, 50/60 Hz, max 0.6 A |
| Output | 24 VDC / 0.5 A |
| Alarm | Audible, on by default, per-parameter min and max |
| Package Dimensions | 275 x 165 x 70 mm |

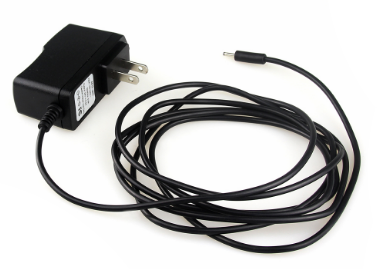

| In The Box | Monitor and logger, 3-in-1 sensor, DC adapter |
