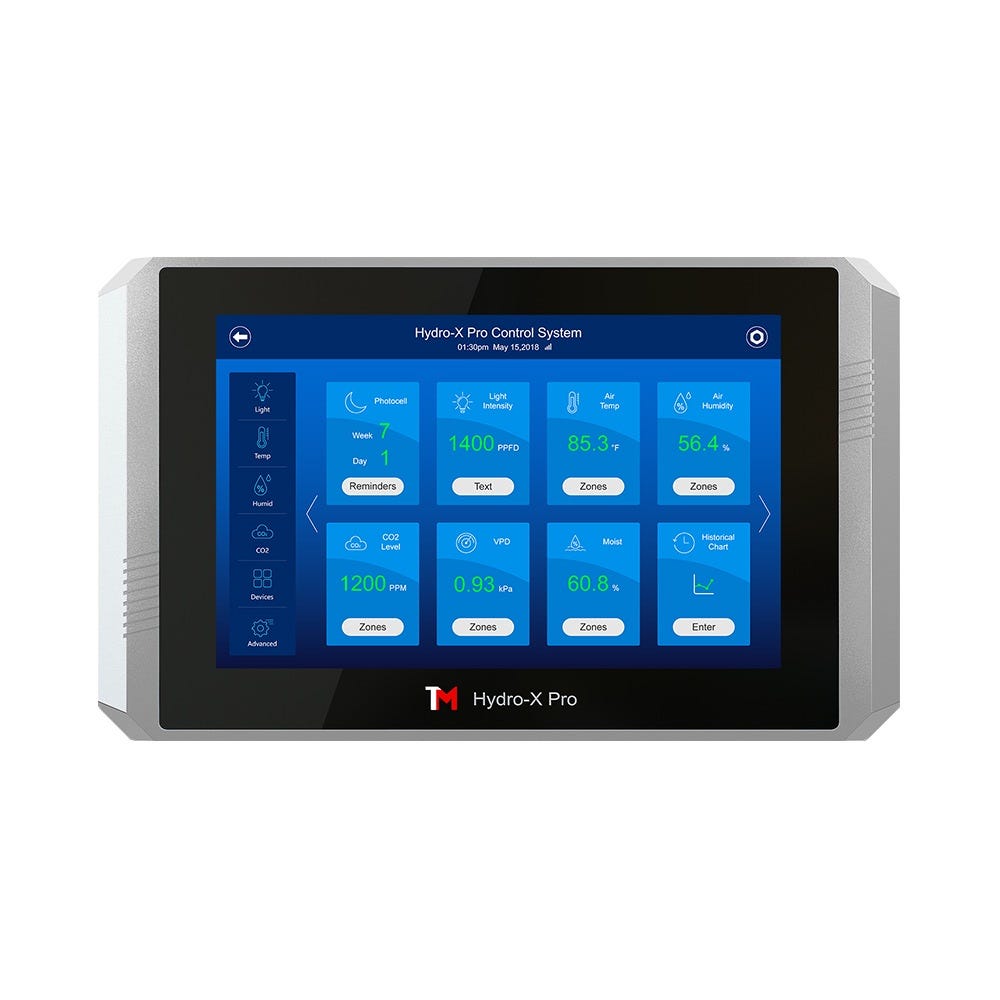

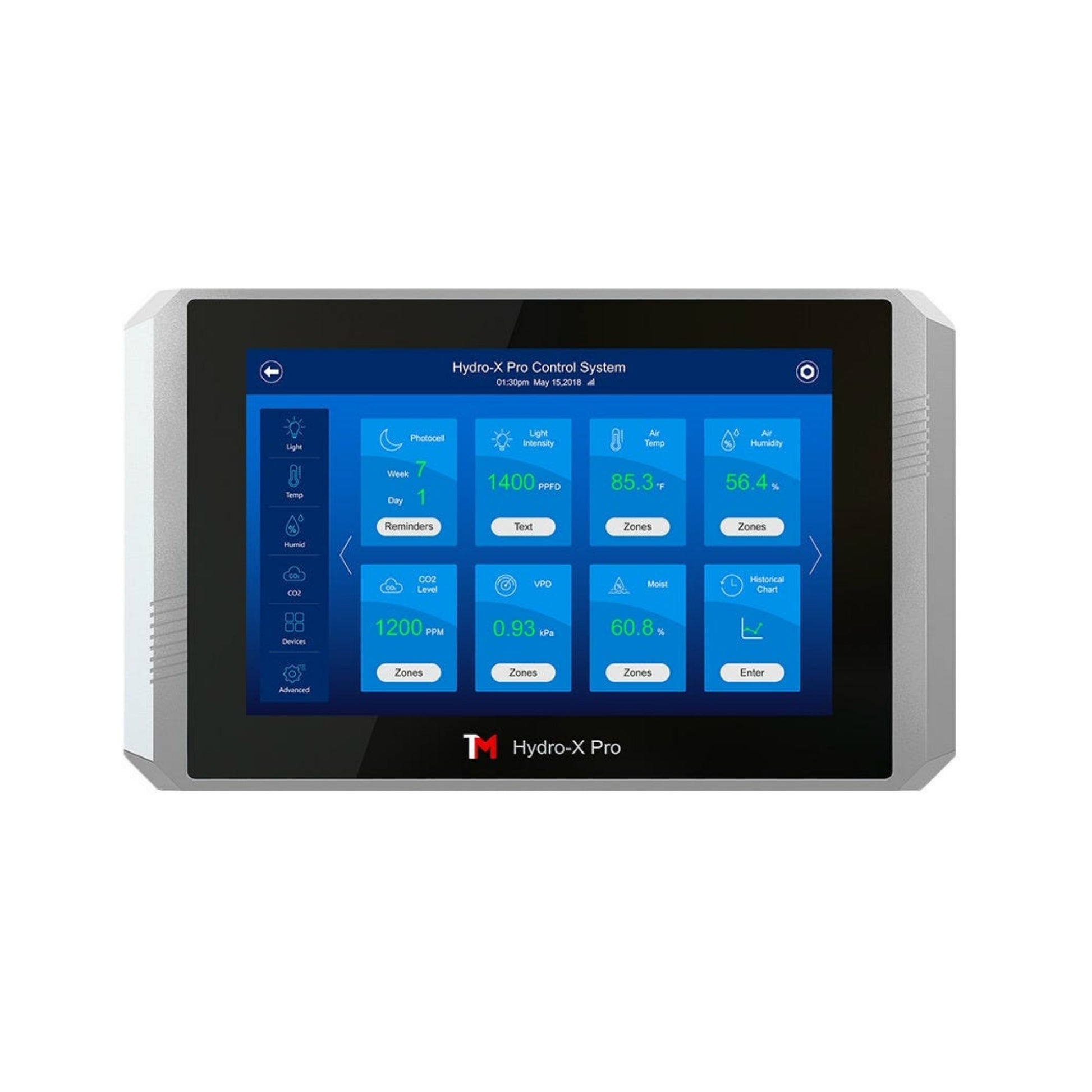

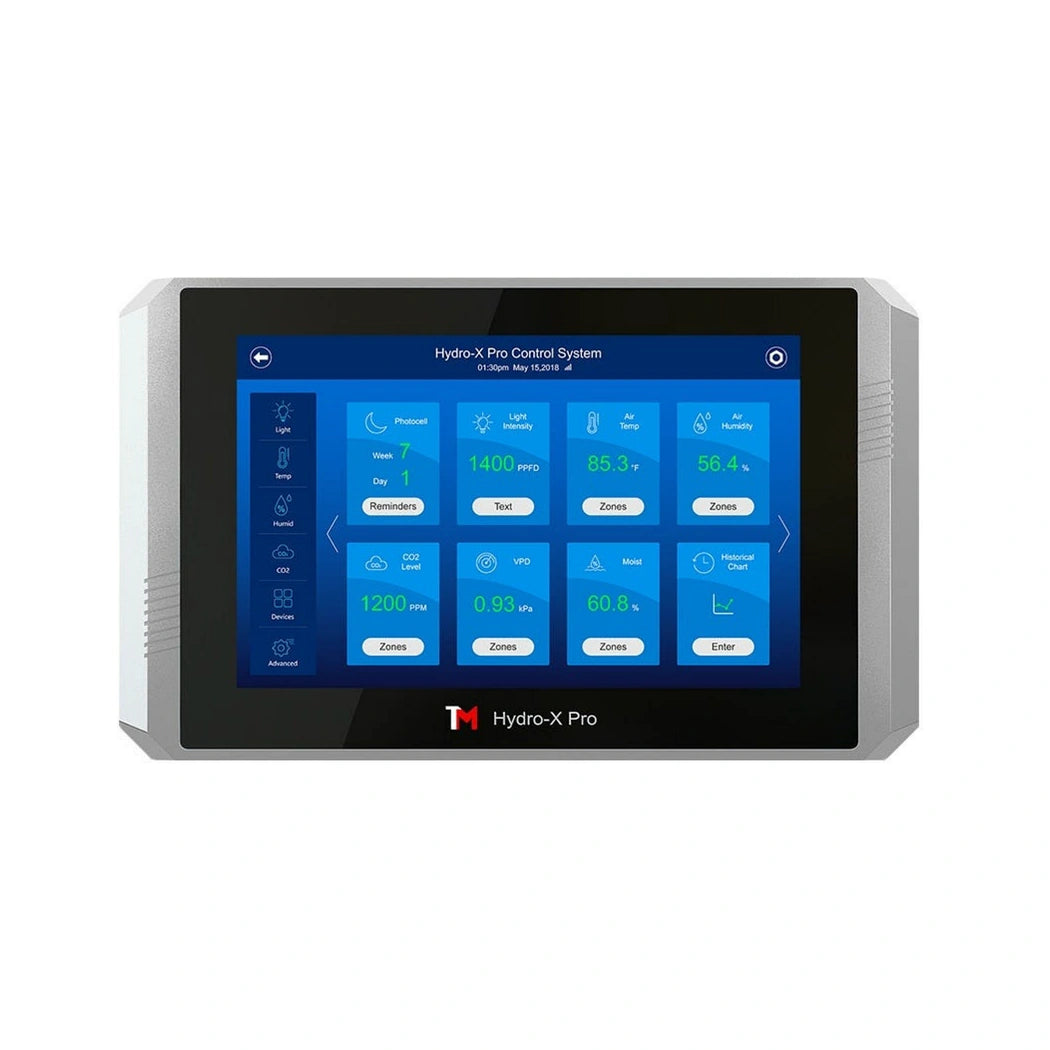

A grow room environmental controller with a 10.1-inch touchscreen
The Hydro-X Pro scales the original Hydro-X up to 50 sensors and 50 control modules on a single-room system built for reliability. It runs any grow light, LED, HID, fluorescent, or traditional, through six LMA lighting adapters on two channels with separate setpoints. The 4-in-1 sensor reads temperature, humidity, CO2, and light, and its own LCD shows values right at the sensor. It is backwards compatible with existing Hydro-X modules. Growers link a sensor to specific gear to carve a room into sub-zones, each held to its own targets.
Sub-zones and crop recipes on the Hydro-X Pro
A built-in calendar lets you build a full crop recipe, lighting, temperature, humidity, CO2, and timers, across multi-week schedules, with reminders for critical tasks. Each variable ramps up and down on a graph to mirror natural conditions, and a cloud-movement mode eases plant stress. The free app sends day and night alerts, while web software adds remote control and saves settings to share across units. One note: it stays a single-room system by design, so a multi-room site runs one Pro per room.
Key Features
- 10.1-Inch Touchscreen: Large color touchscreen runs setup, scheduling, and monitoring on the unit.
- 50 Sensors + 50 Modules: Connects up to 50 sensors and 50 control modules per system.
- 4-in-1 Sensor with LCD: Reads temp, humidity, CO2, and light, with values shown at the sensor.
- Sub-Zone Control: Links a sensor to specific gear to hold separate zones in one room.
- Crop Recipe Calendar: Schedules lighting, climate, CO2, and timers across multi-week cycles.
- Independent Ramping: Ramps each variable up and down on a graph to mimic nature.
- App + Web Control: Free app day/night alerts plus web-based remote control.
- Backwards Compatible: Works with all current Hydro-X control and device modules.
Technical Specifications
| Specification | Value |
|---|---|
| Touchscreen | 10.1-inch |
| Max Sensors | 50 |
| Max Control Modules | 50 |
| Included Sensor | 4-in-1 (temp/humidity/CO2/light) with LCD |
| Lighting Channels | 2 (separate setpoints) |
| Lighting Support | LED, HID, fluorescent via 6 LMA adapters |
| Input Voltage | 100-240V, 50/60Hz, 0.5A |
| Certifications | ETL/FCC |
| Control | App + web software, data logging |

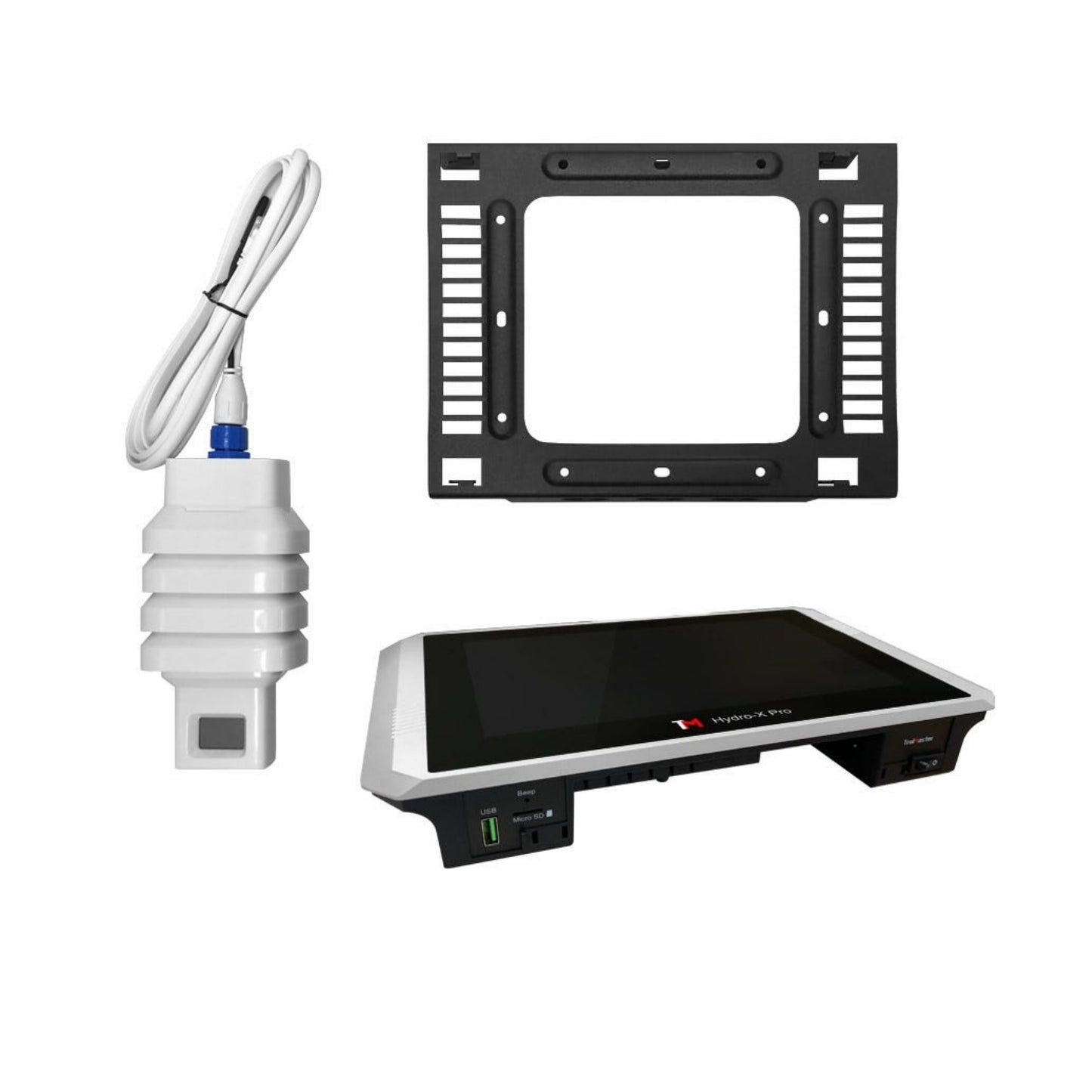

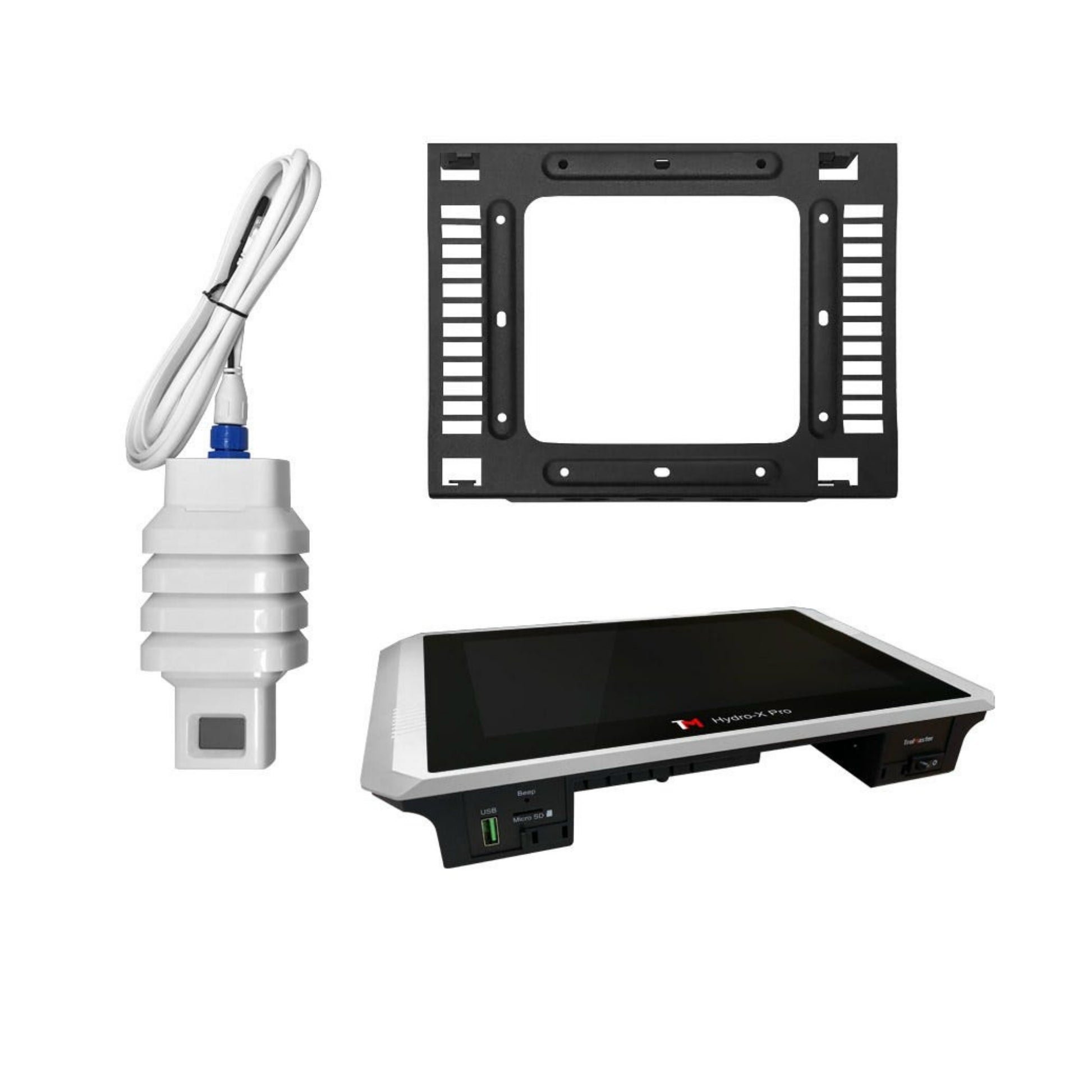

| In the Box | HCS-2 controller, MBS-Pro sensor, mounting plate, RJ12 cable set |
