TrolMaster Lighting Control Adapter for DLI Fixtures

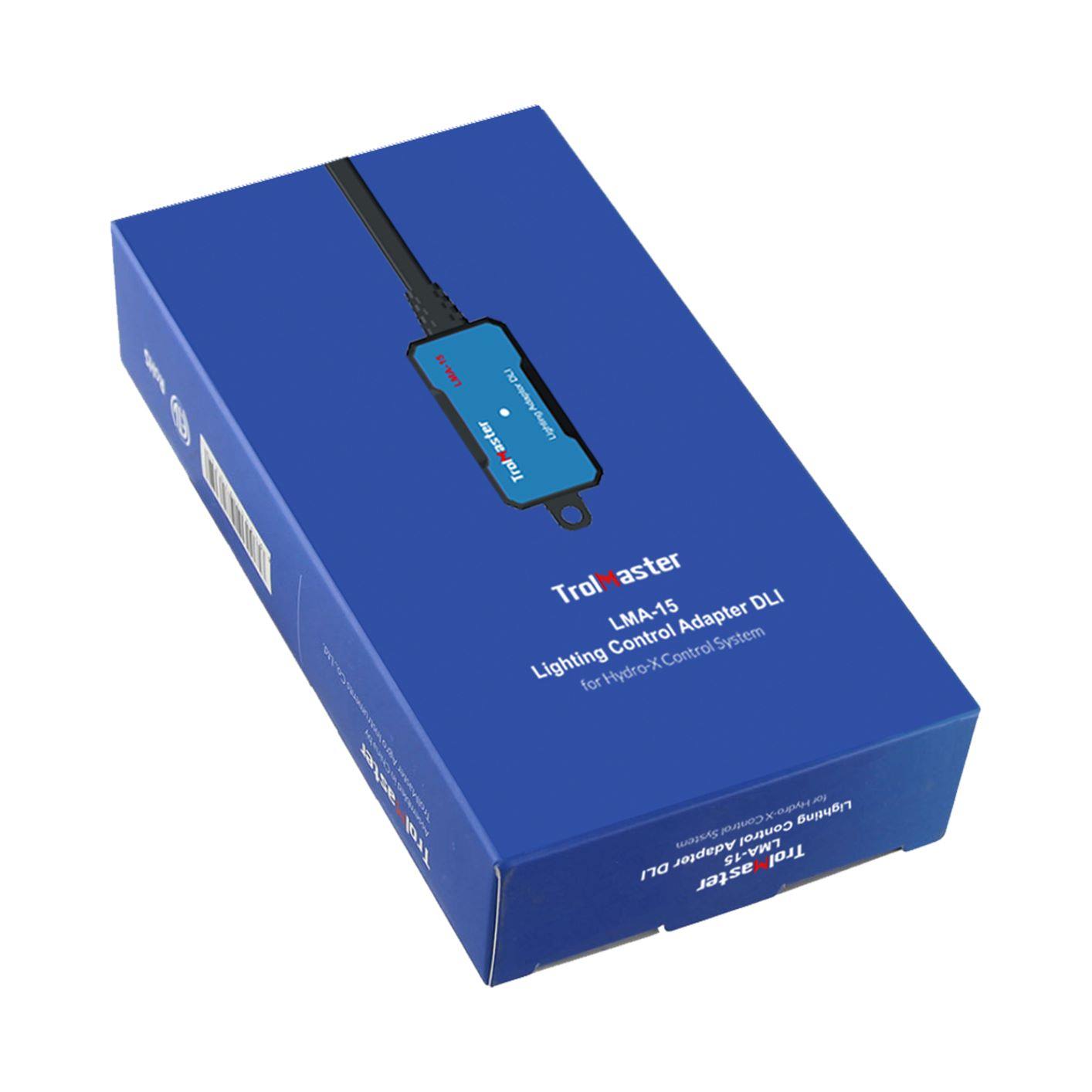

The LMA-15 is the bridge between a Hydro-X controller and DLI lighting fixtures. Most commercial grow lights accept some form of low-volt control, but the signal and protocol vary from one maker to the next. TrolMaster builds a separate lighting adapter for each family, and this one speaks the DLI protocol. It takes 12V from the controller side and sends a digital control signal to the fixtures, drawing no more than 0.2 A. An LED power indicator shows when the adapter is live. The link to the Hydro-X runs over a standard RJ12 cable. Nothing gets programmed on the adapter itself, because schedules and intensity live in the controller. The working range is 32 to 122°F at up to 90% humidity. It is small, too, shipping in a 156 x 83 x 30 mm package that weighs about 50 g. It is CE and ETL registered and carries a three-year warranty.
Connecting a Hydro-X Lighting Control Adapter in a DLI Room
Mount it close to where the fixture control cable starts, and run the RJ12 back to the controller. From there the Hydro-X runs the lights on its own schedule, alongside the climate it already manages. Lighting and climate decisions then come from one place instead of two separate boxes. Before planning a room, confirm the fixtures are DLI models, since each lighting adapter is matched to one protocol. A fixture from another maker needs the adapter built for that maker's signal. Route the RJ12 away from high-voltage cords, and strap it so a light mover or a ladder cannot snag it. The LED makes a quick commissioning check, because no light means no power from the controller side. The honest limit is scope. It only translates commands for DLI lights and has no schedule or sensor of its own. Rooms that mix fixture brands need one matching adapter per brand on the same controller.
Key Features
- DLI Protocol: It translates Hydro-X lighting commands for DLI fixtures and ballasts.
- RJ12 Plug and Play: A standard RJ12 cable links it to the controller with no programming on the adapter.
- Low Power Draw: It runs on 12V from the controller side and draws no more than 0.2 A.
- LED Power Indicator: The light confirms power at a glance during setup and troubleshooting.
- CE and ETL Registered: The adapter is registered with both bodies and carries a three-year warranty.
Technical Specifications
| Specification | Value |
|---|---|
| Model | LMA-15 |
| System | TrolMaster Hydro-X |
| Compatible lighting | DLI fixtures and ballasts |
| Input voltage | 12V |
| Output | Digital control signal |
| Maximum current | 0.2 A |
| Connection | RJ12 to Hydro-X |
| Indicator | LED power |
| Working temperature | 32 to 122°F (0 to 50°C) |
| Working humidity | Up to 90% |
| Package dimensions | 6.14 x 3.27 x 1.18 in (156 x 83 x 30 mm) |
| Gross weight | 1.74 oz (50 g) |
| Registrations | CE, ETL |
| Package contents | 1 x Lighting Control Adapter DLI (LMA-15) |
| Warranty | 3 years |
