How the TrolMaster RJ12 Splitter Hub Organizes a Control Network

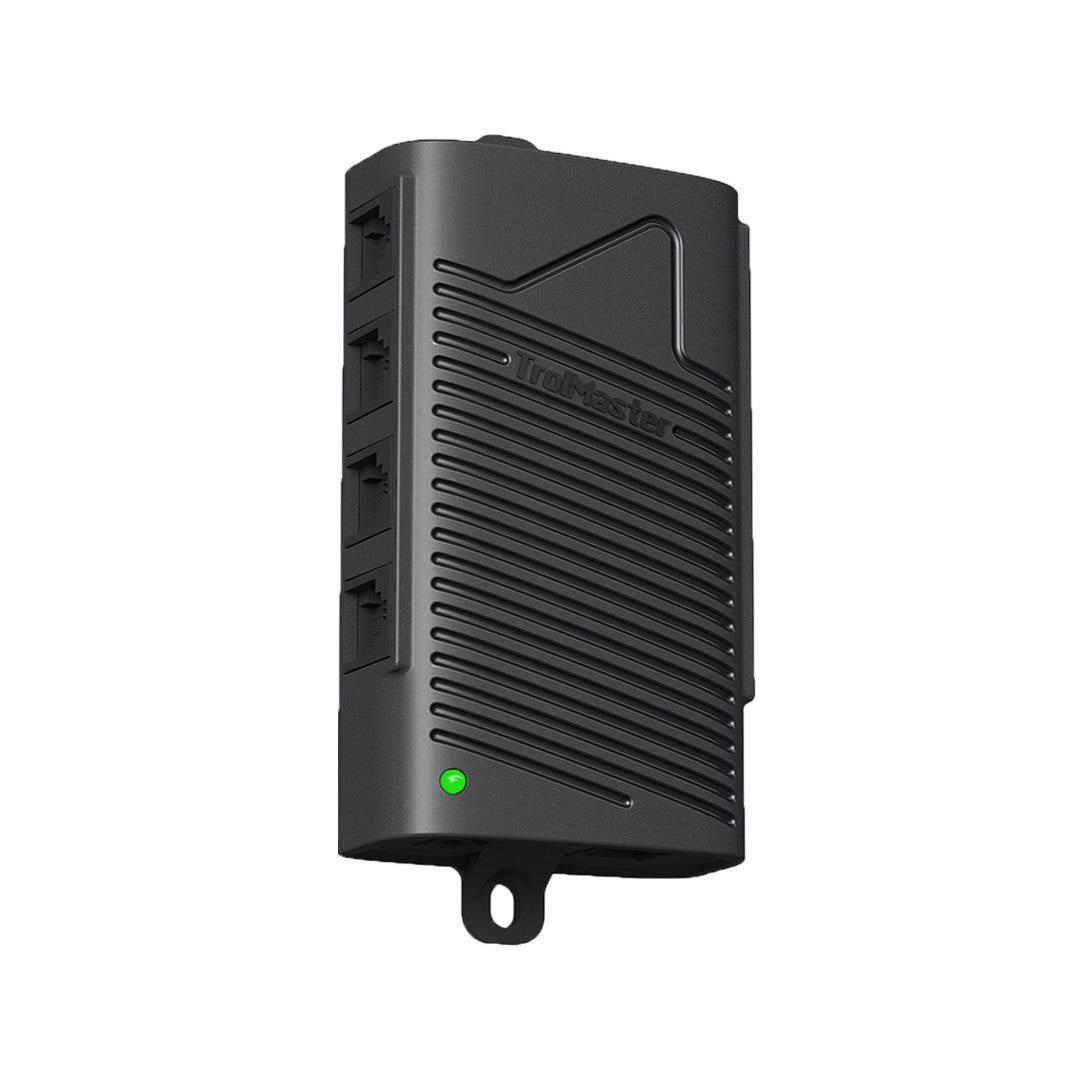

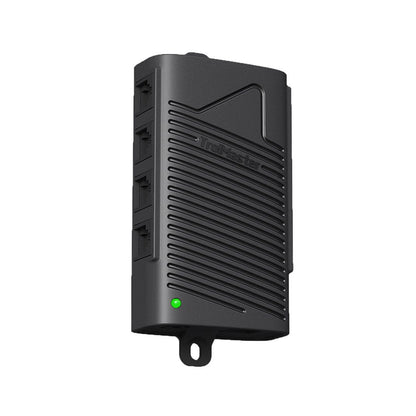

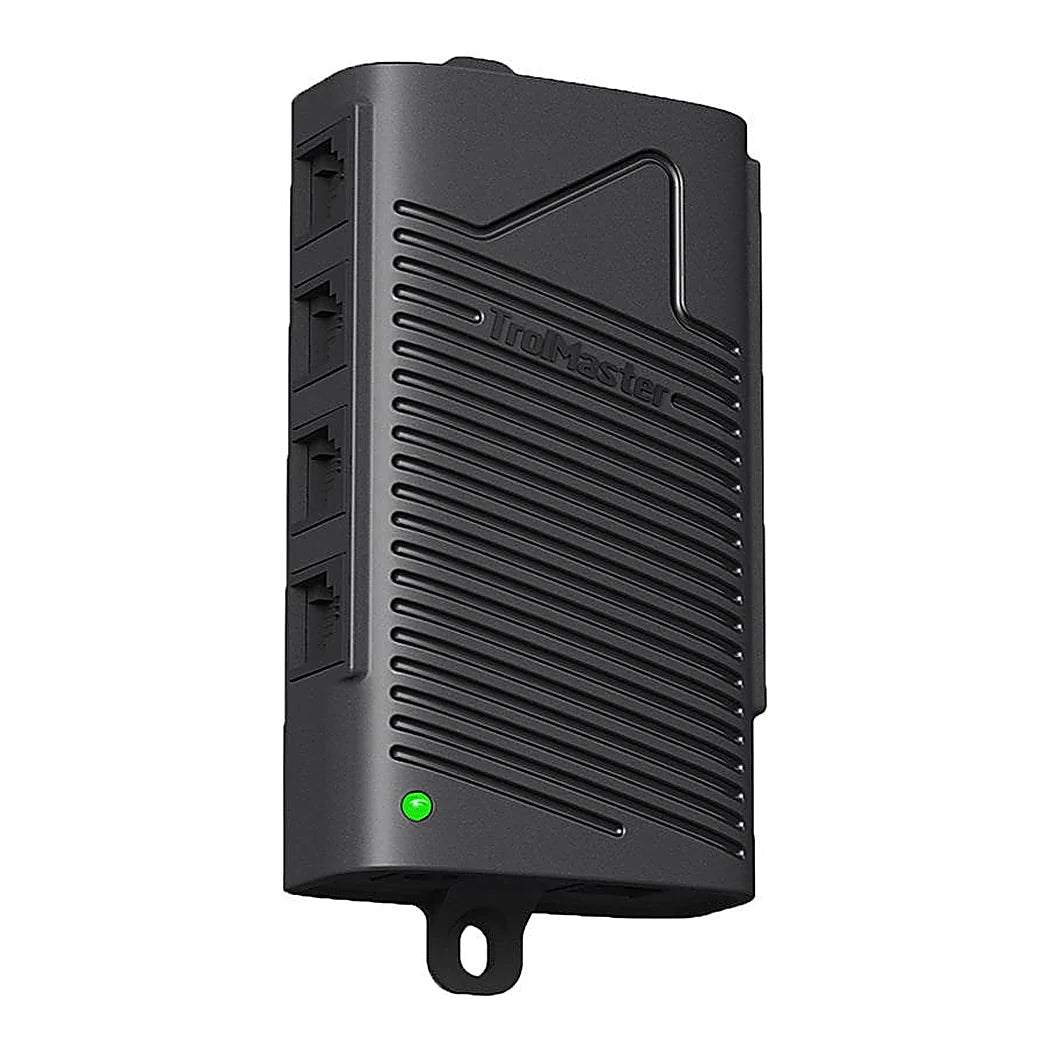

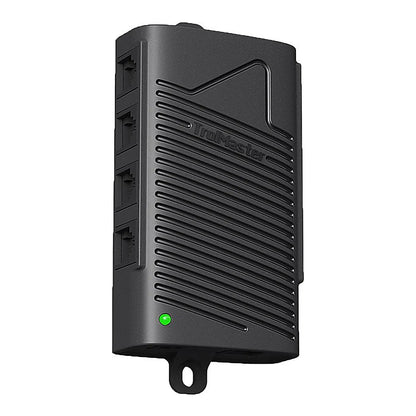

The SPH-1 is a powered distribution hub for TrolMaster RJ12 systems such as the Hydro-X and the Aqua-X. One RJ12 input jack runs back to the main controller. Eight RJ12 output jacks feed sensors, device stations and lighting adapters. That layout replaces chains of Y-splitters with a single central point. Because the hub is powered, it boosts the signals passing through it. More modules, sensors and light adapters can then hang off one controller than a passive chain would carry. An LED shows when the hub is live. Power comes from the included 12 V DC adapter, and the hub is rated for 1 A. The box holds the hub, the power adapter and a 4 ft RJ12 cable. It is rated for 32 to 122 °F at humidity of 90 percent or less. The package measures 160 by 85 by 90 mm and ships at 0.54 lb. It carries CE registration, a three year warranty and the distributor part number TRCSPH1.
Wiring a Powered RJ12 Hub Without Signal Trouble

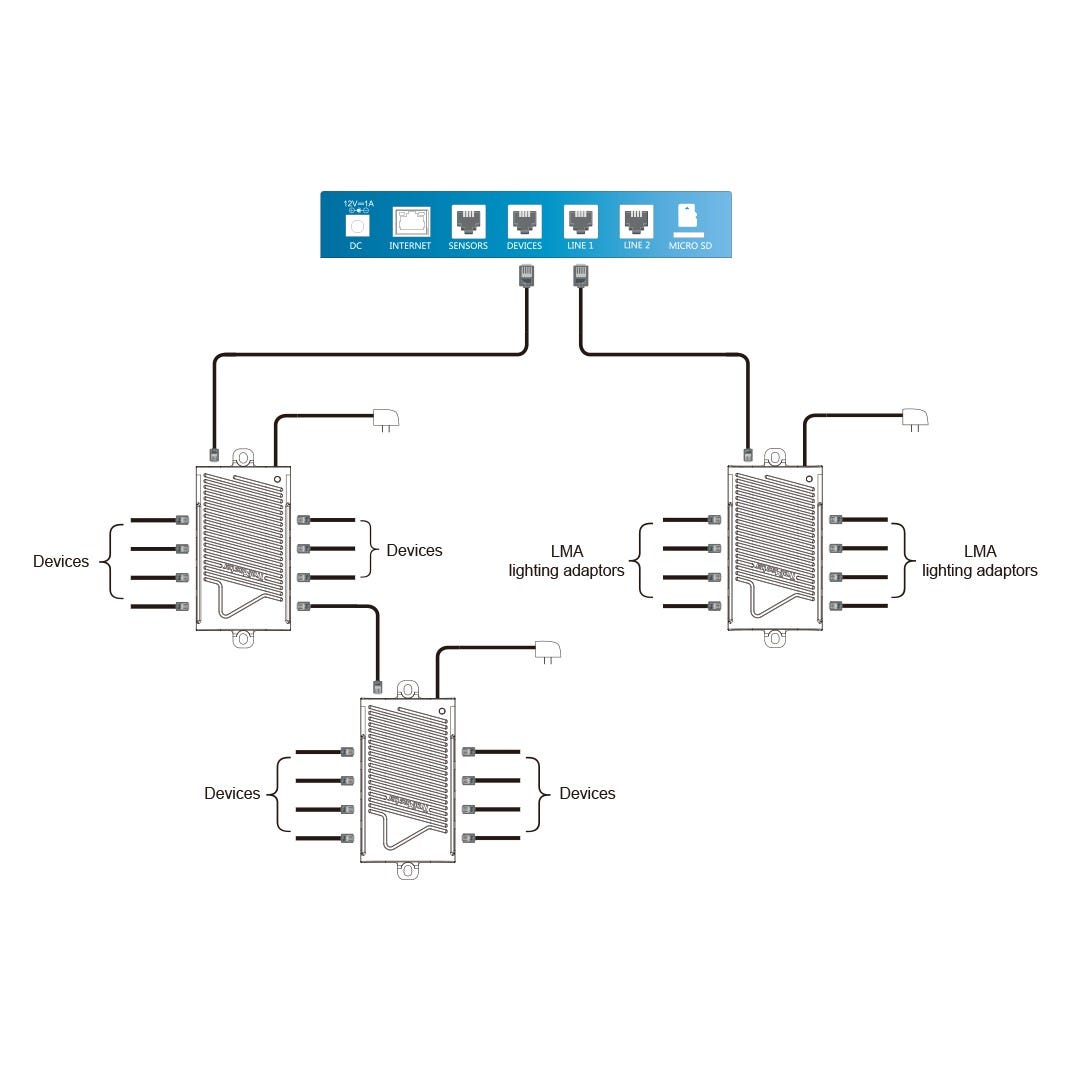

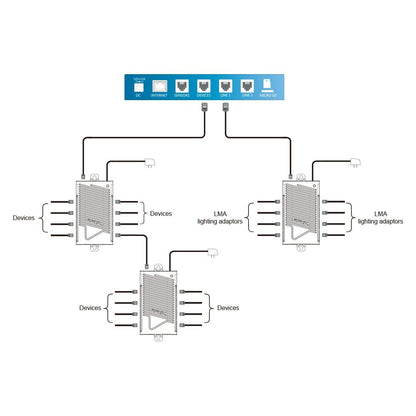

A powered RJ12 hub belongs near the middle of the devices it serves, not beside the controller. Mount it on a wall at a central point so every cable run stays short and direct. Run one cable home to the controller and plug each module into its own jack. Label both ends of every cable with the device it feeds. Grouping sensors on one hub and lighting adapters on another keeps troubleshooting simple. Lighting adds one exception worth knowing. When lights are interconnected back to a single LMA adapter, leave the power supply unplugged from the hub. An LMA-T running a ThinkGrow light system is the reverse case, and there the power supply is required. Keep the hub and its adapter dry and off the floor. Route low voltage cables away from ballasts, pumps and mains cords where possible. The hub passes signals and power only, so each sensor and station still needs its own address on the controller.
Key Features
- One in, eight out: Single RJ12 input with eight RJ12 output jacks.
- Powered signal boost: Lets more modules and adapters share one controller.
- Replaces Y-splitters: A clean, central star layout.
- 12 V DC adapter included: Hub rated for 1 A.
- LED indicator: Shows the hub is live.
- 4 ft RJ12 cable: Included in the box.
- Lighting rule: Supply off for interconnected lights on one LMA; on for LMA-T with ThinkGrow.
- Three year warranty: Covered by TrolMaster.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | TrolMaster |
| Model | SPH-1 |
| Distributor part number | TRCSPH1 |
| EAN | 6970207971233 |
| Ports | 1 x RJ12 input, 8 x RJ12 output |
| Type | Powered (active) hub |
| Input voltage | 12 V DC |
| Maximum current | 1 A |
| Indicator | LED |
| Operating range | 32 - 122 °F (0 - 50 °C), humidity 90% or less |
| In the box | 1 x RJ12 splitter hub, 1 x 12 V power adapter, 1 x 4 ft RJ12 cable |
| Package size | 160 x 85 x 90 mm |
| Shipping weight | 0.54 lb |
| Certifications | CE |
| Warranty | 3 years |
