TrolMaster RJ12 to M16 PushLock Converter for Fluence LEDs

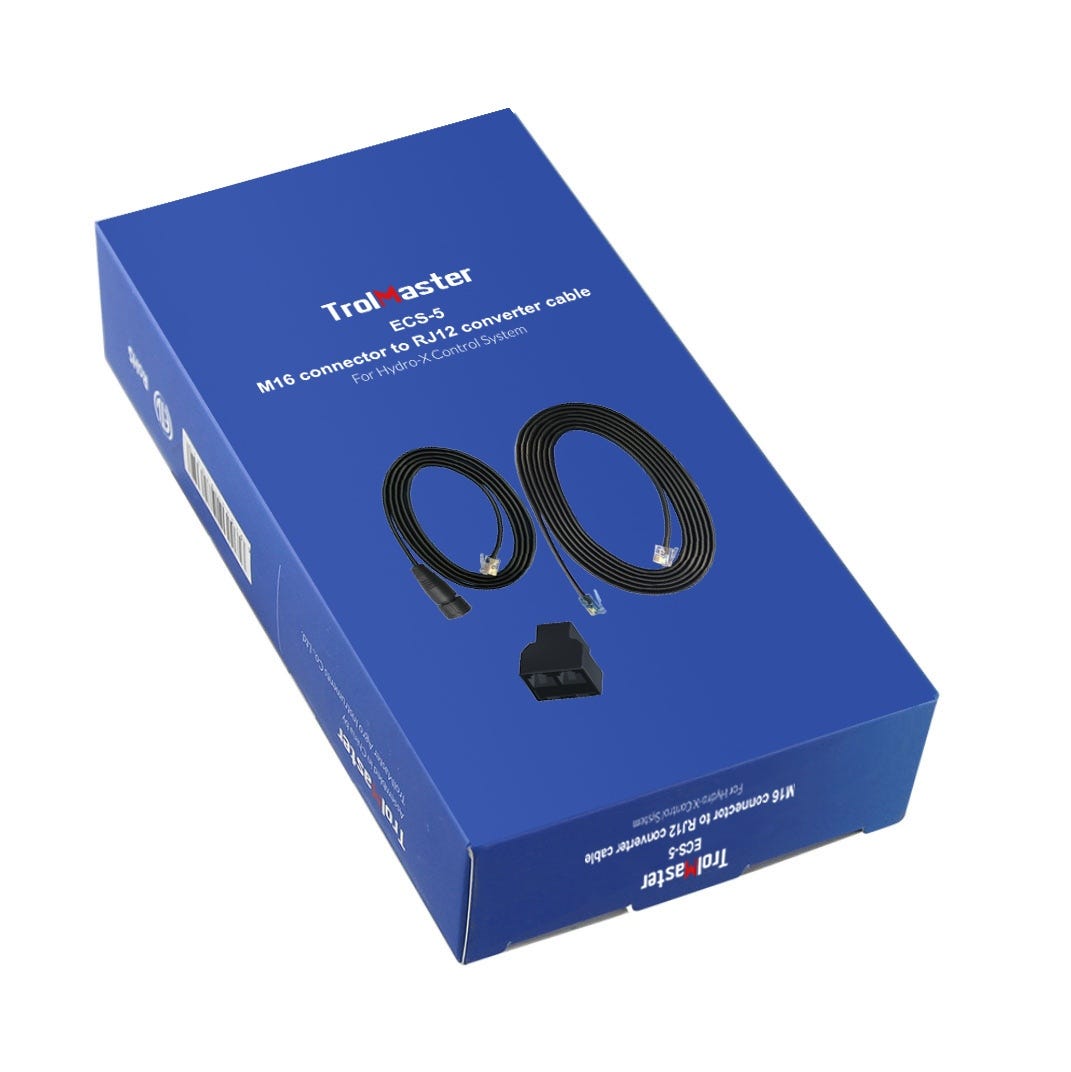

Some of the newer Fluence LED fixtures interconnect through PushLock waterproof connectors instead of RJ12 jacks, and the ECS-5 bridges the two. It provides a 5/8 in diameter M16 connector at the fixture end and an RJ12 plug at the controller end. The kit holds a special 4 ft M16 to RJ12 converter cable, a 16 ft RJ12 cable and a T-shaped splitter. That layout matches the other ECS kits, so it slots into an existing Hydro-X lighting chain. It runs on 12V with a maximum current of 0.2 A. The working range is 32 to 122°F at up to 90% humidity. Packaged, it measures 85 x 80 x 51.5 mm and weighs about 0.18 kg. TrolMaster backs it with a three-year warranty. The PushLock side is waterproof, which suits fixtures hung over wet benches and wash-down floors. Nothing needs splicing or rewiring at the fixture.
Running Fluence PushLock Fixtures From a Hydro-X Controller
Plug the converter into the fixture PushLock port, then carry the RJ12 run back toward the controller side of the lighting chain. The T-splitter lets the signal continue to the next fixture, so one controller output can serve a whole row. Push the M16 connector straight on until it seats fully, rather than twisting it into place. Leave a little slack at each fixture so a light mover or a height change does not pull the lead tight. Check which connector the fixtures carry first, since only some newer Fluence models use PushLock. Older Fluence lights with RJ12 or other jacks do not need this converter. Keep the RJ12 end and the splitter dry, because only the PushLock side is sealed. The honest limit is that it changes the connector, not the control protocol. The Hydro-X still has to be set up for Fluence fixtures before the lights respond. Label each run at the controller end so the next fixture swap goes quickly.
Key Features
- M16 PushLock to RJ12: A 5/8 in waterproof PushLock connector meets a standard RJ12 plug on one cable.

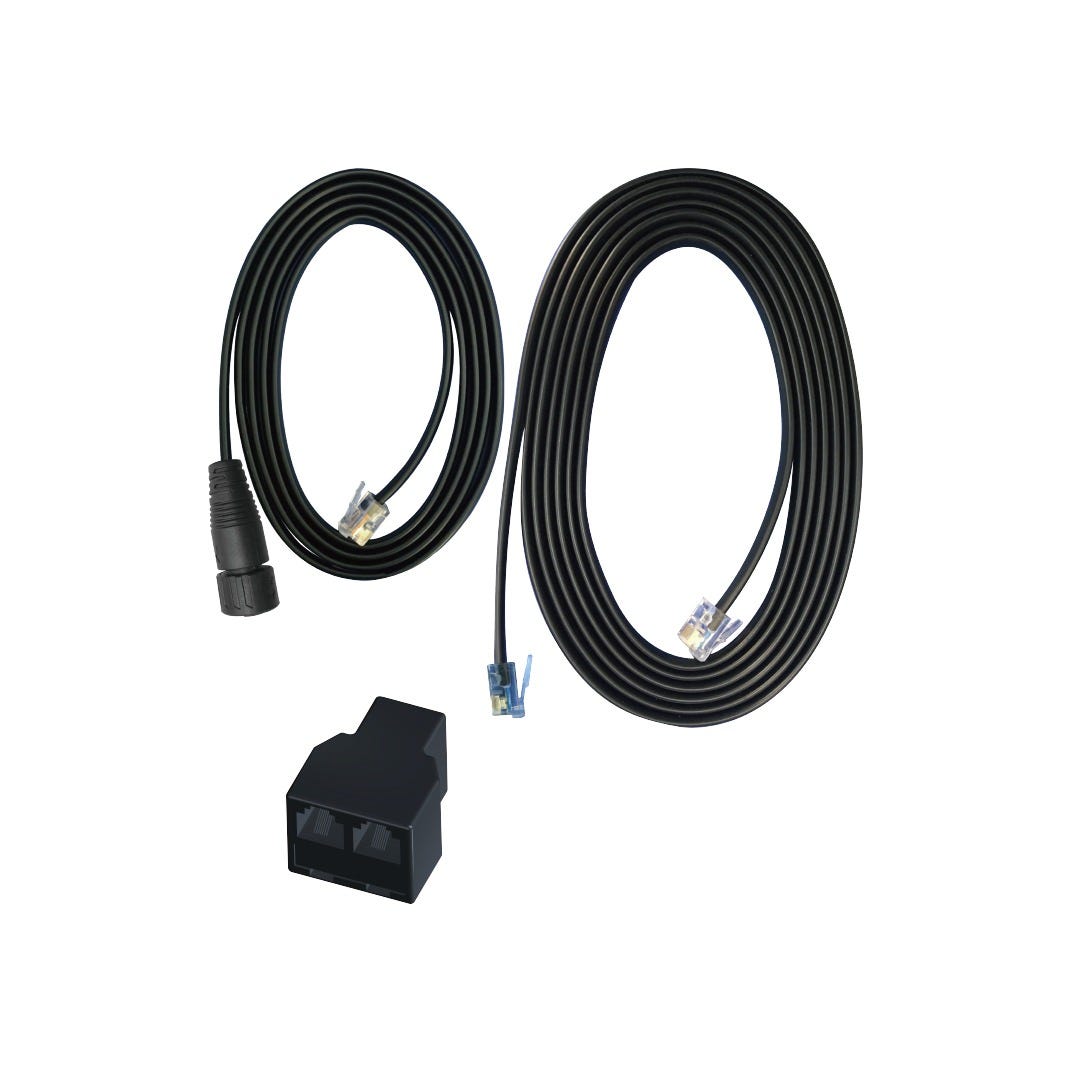

- Three-Piece Kit: A 4 ft converter cable, a 16 ft RJ12 cable and a T-shaped splitter come together.
- Daisy-Chain Ready: The T-splitter carries the signal on to the next fixture in the row.
- Waterproof Fixture End: The sealed PushLock side handles wet benches and wash-down floors.
- Plug and Play: No splicing or rewiring is needed at the fixture.
Technical Specifications
| Specification | Value |
|---|---|
| Model | ECS-5 |
| System | TrolMaster Hydro-X |
| Compatible fixtures | Newer Fluence LED fixtures with PushLock waterproof connectors |
| Fixture connector | M16 PushLock, 5/8 in diameter, waterproof |
| Controller connector | RJ12 |
| Input voltage | 12V |
| Maximum current | 0.2 A |
| Working temperature | 32 to 122°F (0 to 50°C) |
| Working humidity | Up to 90% |
| Package dimensions | 3.35 x 3.15 x 2.03 in (85 x 80 x 51.5 mm) |
| Gross weight | 0.18 kg |
| Package contents | 1 x 4 ft M16 to RJ12 converter cable, 1 x 16 ft RJ12 cable, 1 x T-shaped splitter |
| Warranty | 3 years |
