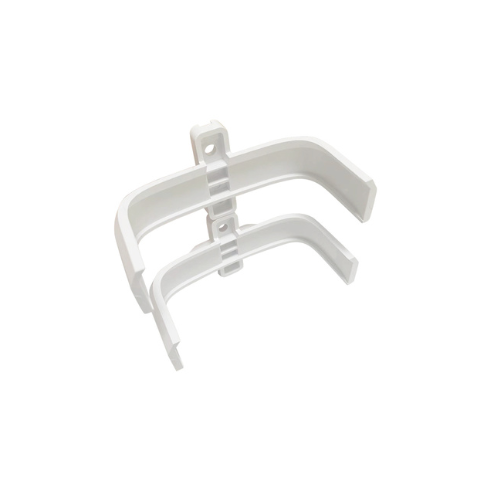

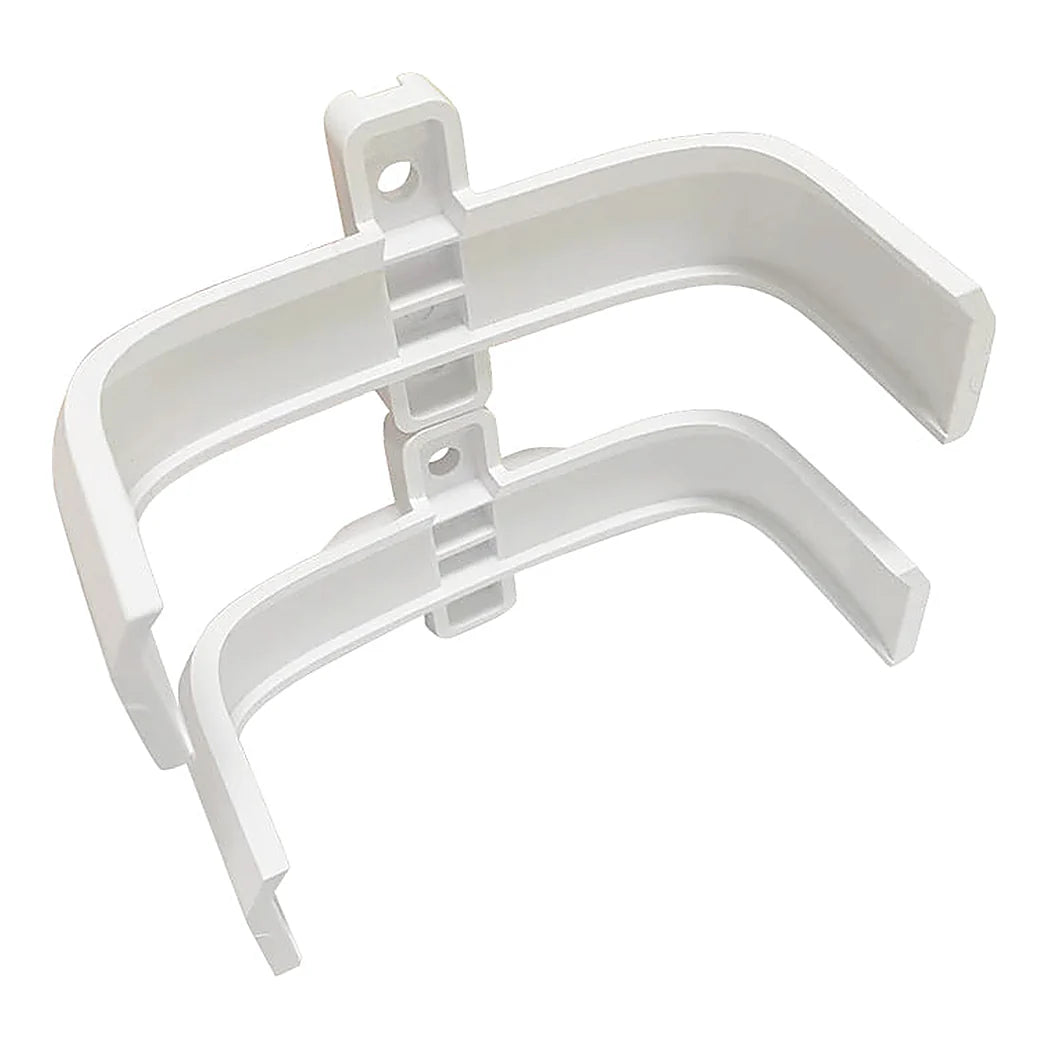

How the TrolMaster TSB-1 Holds a Sensor
This set contains two holders that work together to mount one sensor. TrolMaster shaped them specifically for the MBS-K30 and MBS-PRO sensor bodies. Curved edges wrap around the sensor and lock it in place, so it cannot slide or twist. Each holder fixes flat to a wall or post. Holders also join to one another with a mortise-and-tenon joint when a longer mount is needed. The low profile keeps the sensor tidy against the wall rather than hanging loose on its cable. That matters because a swinging sensor reads the air in a different spot from one minute to the next. The brackets are rated for the same 32 to 122 °F and 90% humidity range as the sensors they carry. The pack ships in a box about 85 x 68 x 67 mm. TrolMaster backs them with a 3-year warranty.
Placing a Sensor Mounting Bracket for Accurate Readings
A sensor mounting bracket only helps if it sits in the right place, so plan the position before drilling. TrolMaster recommends hanging temperature, humidity and CO2 sensors at canopy height. The MBS-K30 CO2 sensor used with Carbon-X belongs lower, at the bottom of the canopy. Pick a spot with normal room airflow, away from the direct blast of a fan or humidifier. Keep the sensor out of direct light from fixtures, which can heat the housing and skew readings. Mark the holes with the sensor in the brackets, then fix the brackets with screws suited to the wall. Seat the sensor and route its cable along the wall so it does not pull on the housing. Move the brackets up as the crop grows, keeping the sensor in step with the canopy. In larger rooms, a set for each sensor keeps every reading consistent. Wipe dust off the sensor during routine cleaning. Fitted this way, the brackets turn a dangling sensor into a fixed, reliable data point.
Key Features
- Custom fit: Shaped for MBS-K30 and MBS-PRO sensors.
- Two holders per pack: Together they mount one sensor.
- Curved locking edges: Hold the sensor firmly in place.
- Joinable design: Holders link with a mortise-and-tenon joint.
- 3-year warranty: Backed by TrolMaster.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | TrolMaster |
| Model | TSB-1 |
| Contents | 2 holders (mounts 1 sensor) |
| Compatible sensors | MBS-K30, MBS-PRO |
| Mounting | Wall mount, joinable holders |
| Working environment | 32 to 122 °F, up to 90% RH |
| Package size | 85 x 68 x 67 mm |
| Warranty | 3 years |
| EAN | 6970207972230 |
