A grow tent environmental controller with a 3-in-1 sensor
The Tent-X is a modular controller built for a single grow tent, tying climate and irrigation into one system. It drives most LED or HID lights on two built-in channels, up to 256 fixtures each. It switches fans, HVAC, and irrigation through up to four DS-type control modules. The included 3-in-1 MBS-TH sensor reads temperature, humidity, and light. Growers daisy-chain a CO2, quantum PAR, smoke, or water sensor into the same port as the tent's needs grow.

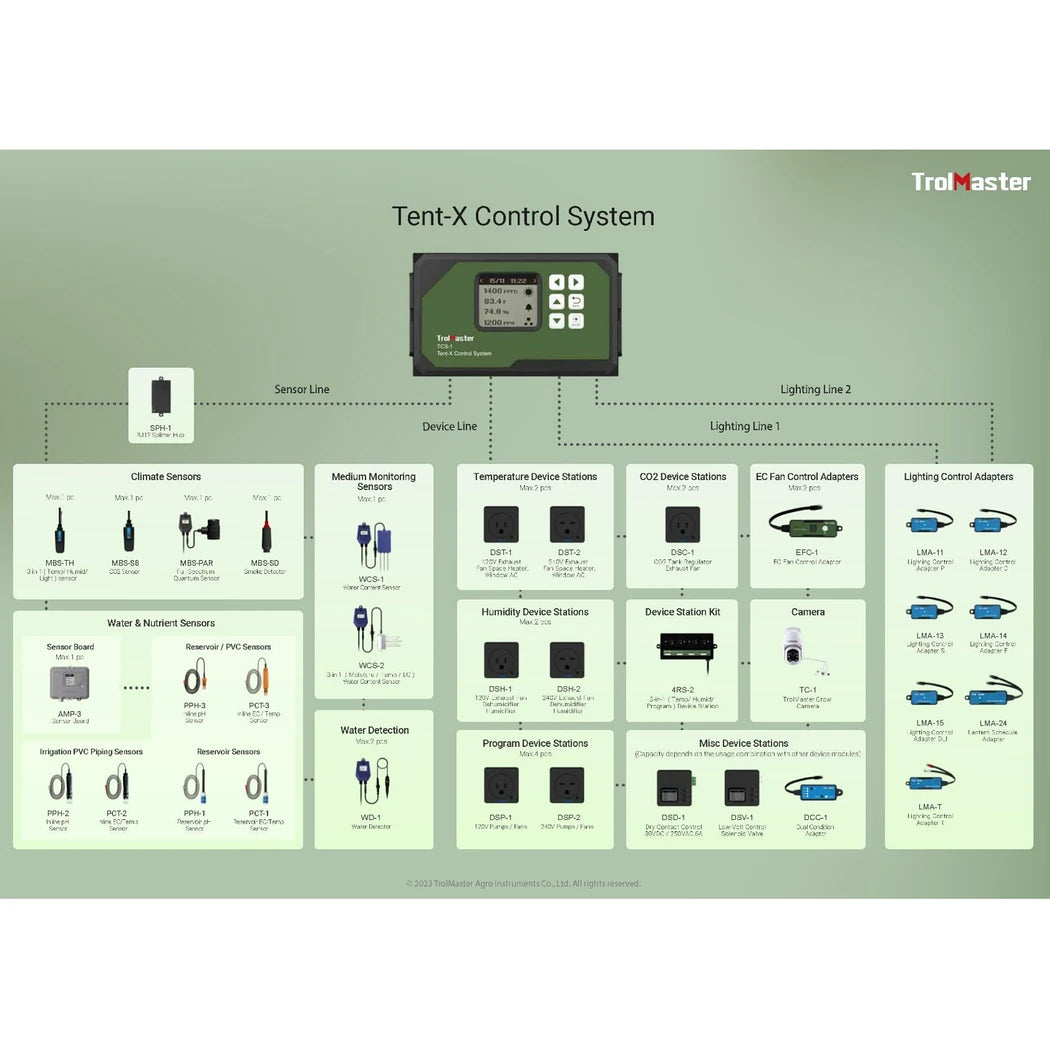

Building out the Tent-X control system
The free TrolMaster app monitors and controls the tent from anywhere, with push notifications, historical graphs, and warnings when a reading drifts. Data logging tracks how the tent moves so you can adjust with evidence, not guesswork. Devices connect up to 1000 meters out on 100-240VAC with ETL/FCC certification. One note: the Tent-X is a single-zone controller, so a second tent needs its own unit.
Key Features
- Single-Zone Tent Control: Runs climate and irrigation for one grow tent from one unit.
- 3-in-1 Sensor Included: MBS-TH sensor reads temperature, humidity, and light.
- Two Lighting Channels: Controls most LED or HID lights, up to 256 fixtures per channel.
- Four DS Control Modules: Adds fans, HVAC, and irrigation through plug-in device modules.
- Expandable Sensors: Daisy-chains CO2, PAR, smoke, and water sensors into one port.
- Free App + Alerts: Monitor, control, and get push warnings from your phone.
- Data Logging: Tracks environmental changes for informed adjustments.
Technical Specifications
| Specification | Value |
|---|---|
| Zone | Single-zone grow tent |
| Included Sensor | 3-in-1 MBS-TH (temp/humidity/light) |
| Lighting Channels | 2 (most LED/HID) |
| Max Fixtures | 256 per channel (512 total) |
| Device Modules | Up to 4 DS-type |
| Add-On Sensors | CO2, PAR, smoke, water detectors |
| Input Voltage | 100-240VAC, 50/60Hz |
| Certifications | ETL/FCC |
| Max Device Distance | 1000 m |

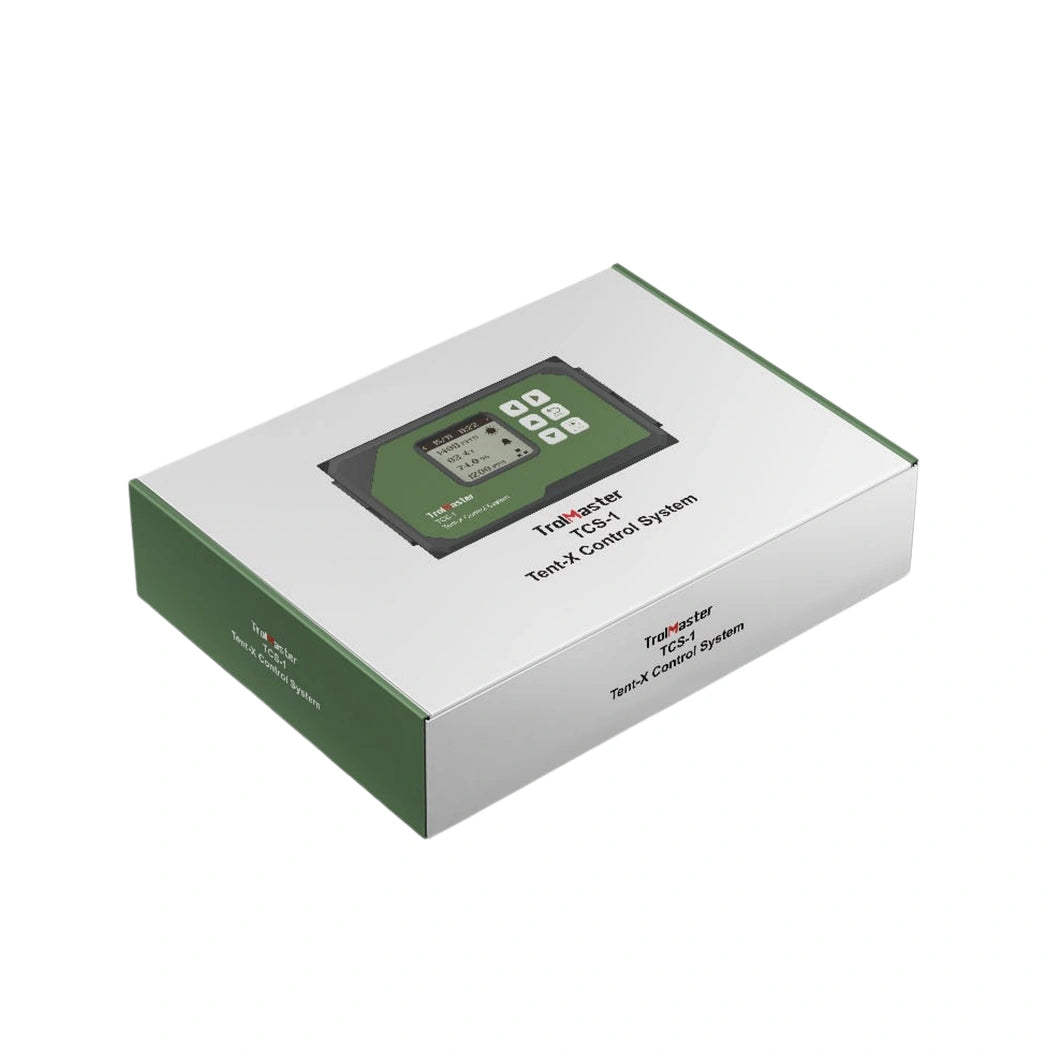

| In the Box | Controller, 3-in-1 sensor, RJ12 cable set, RJ12 T-splitter |
