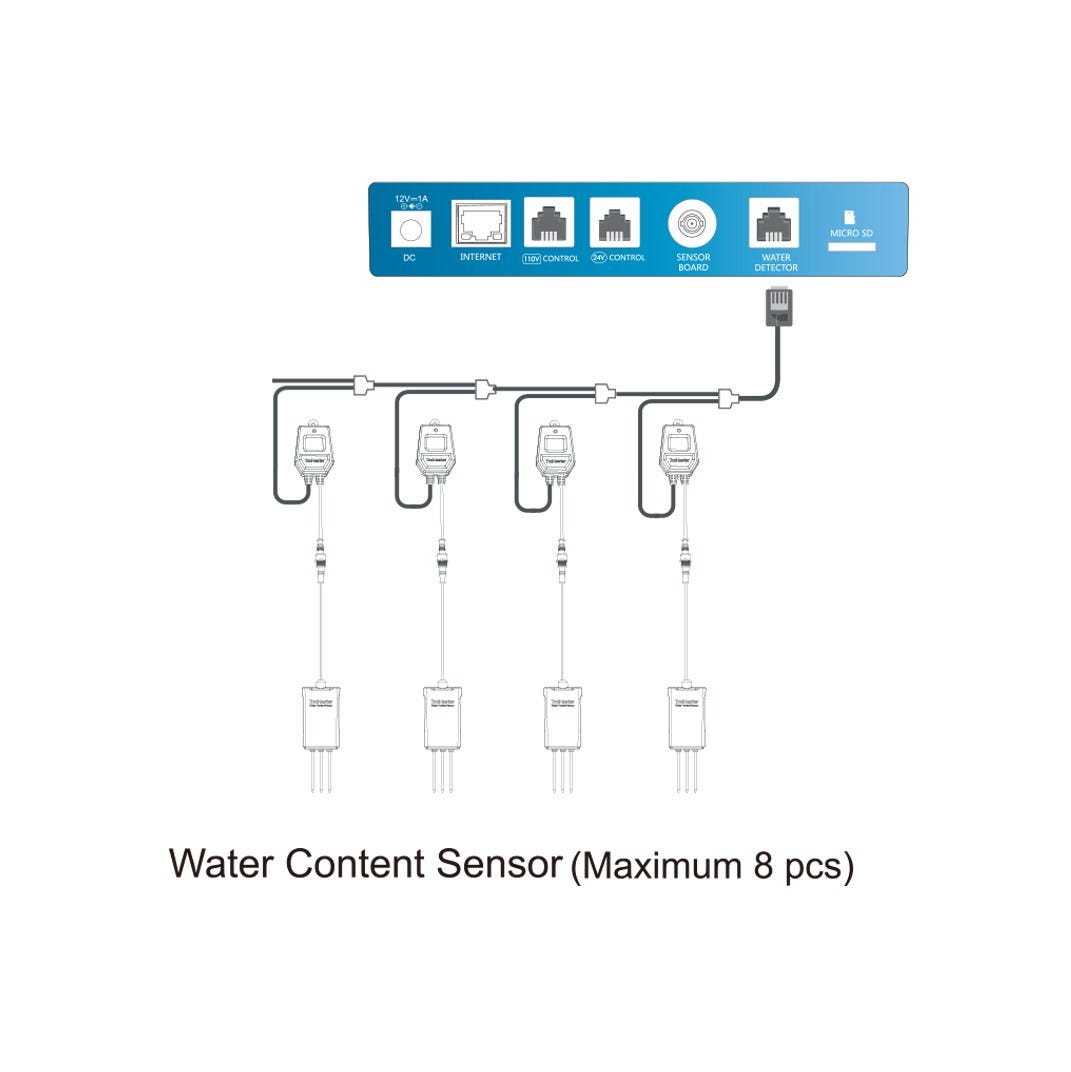

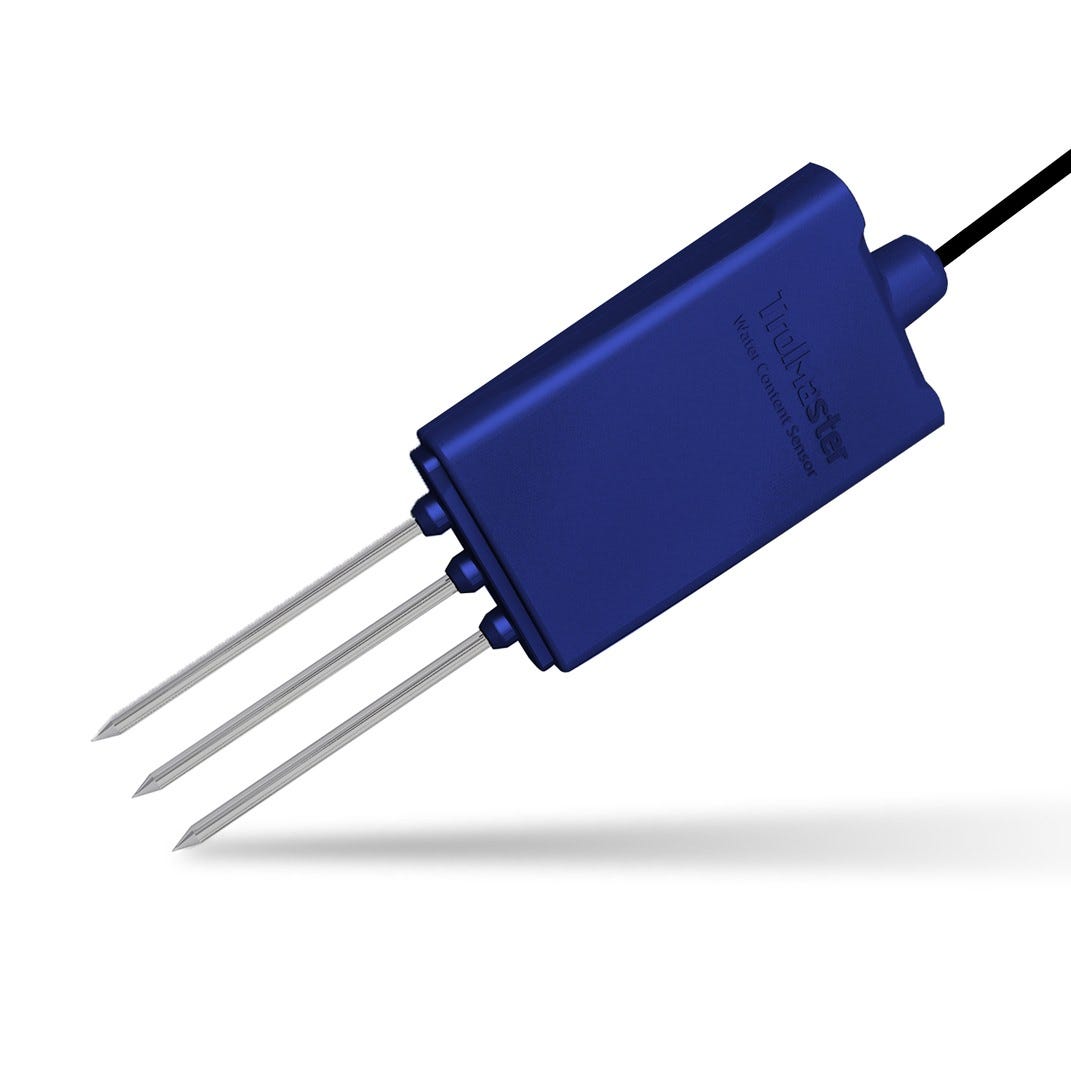

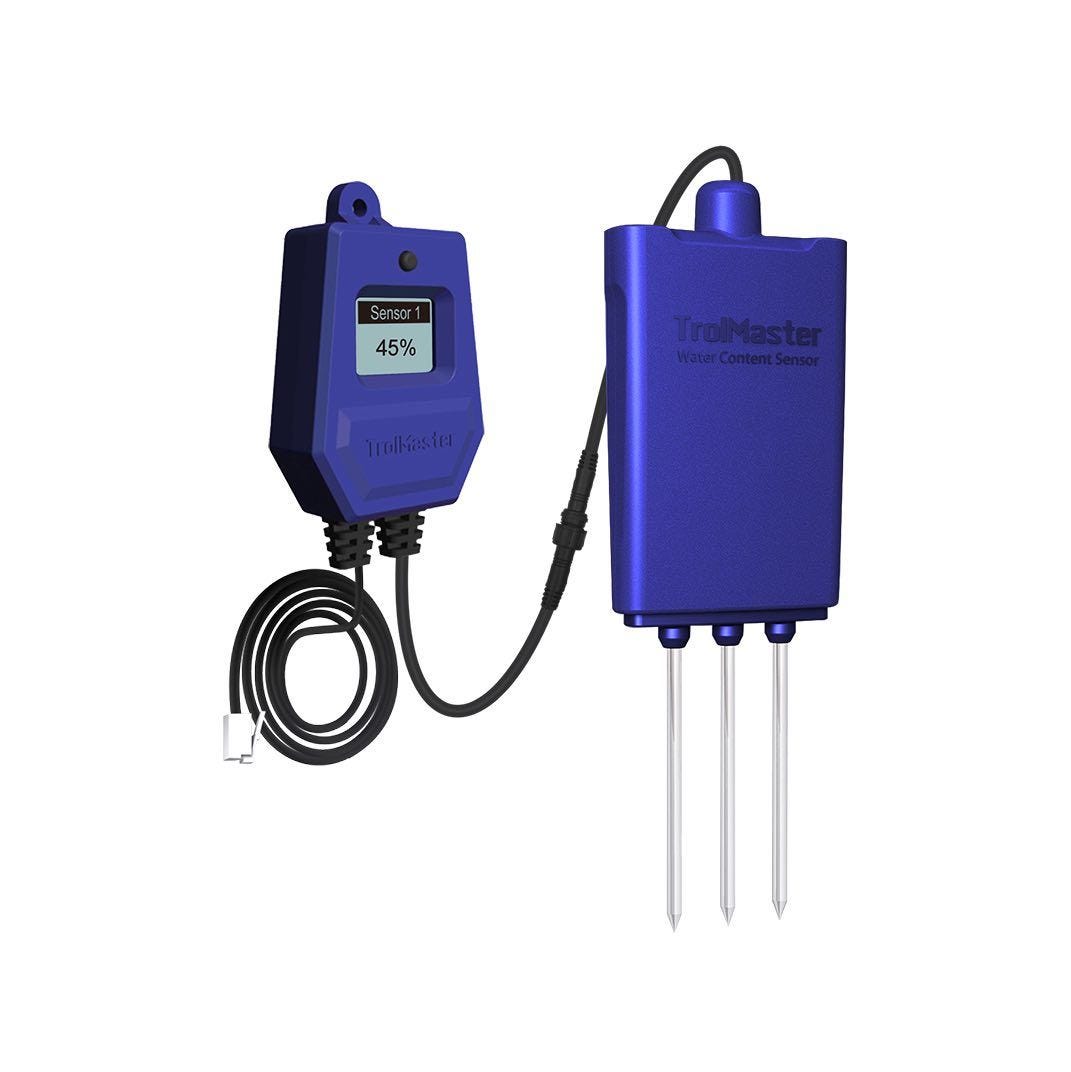

The WCS-1 water content sensor allows the user to monitor the % of water / nutrients within the growing medium. The moisture level / water content is displayed in real-time on the WCS module itself, the Aqua-x and the APP. That data is displayed on a graph (through the APP) and helps the user visualize the dry-down time, and to make adjustments to their irrigation timers / irrigation cycles. Up to 8 WCS-1 can be connected to a single Aqua-x. When multiple WCS-1 are connected to a single Aqua-X, the displayed value on the Aqua-x and APP will be the AVERAGE of all of the sensors.
Features
- LCD Display, Easy Operation
- Addressing Button
- Water Content Real-time Measuring
- Alarm When Setpoint Exceeded
Package Content
- 1 x Water Content Sensor
- 1 x RJ12 T-Splitter
- 1 x 16ft RJ12 Cable
Specification
- Input Voltage: 12 VDC
- Max Input Current: 0.1A
- Working Environments: Temperature 32 °-122 °F, Humidity=90%
- Measuring Range: 0~100%
- Packaging Dimensions: 275mm(L) x 164mm(W) x 62mm(H)
