TrolMaster BM-1 Enclosure for TS-1, TS-2, HS-1 and ARS-1 Stations

What the TrolMaster Weatherproof Box Actually Protects

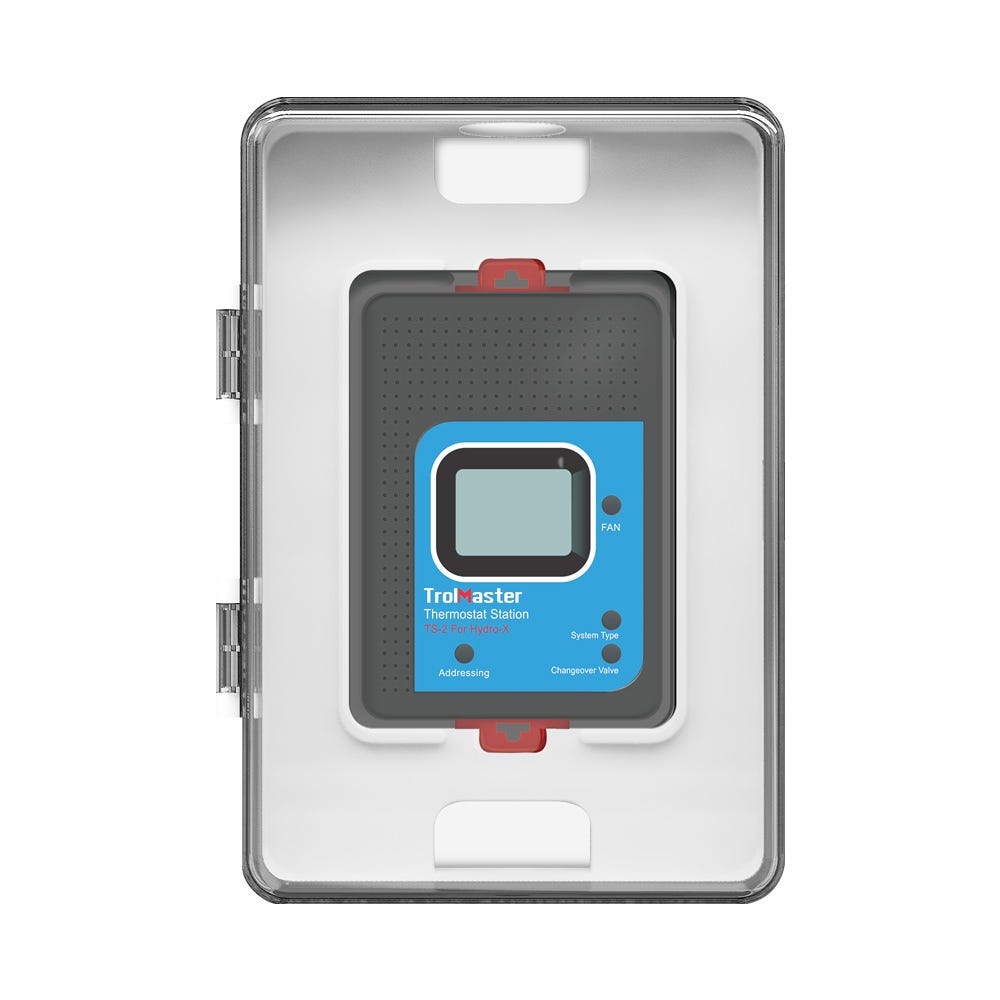

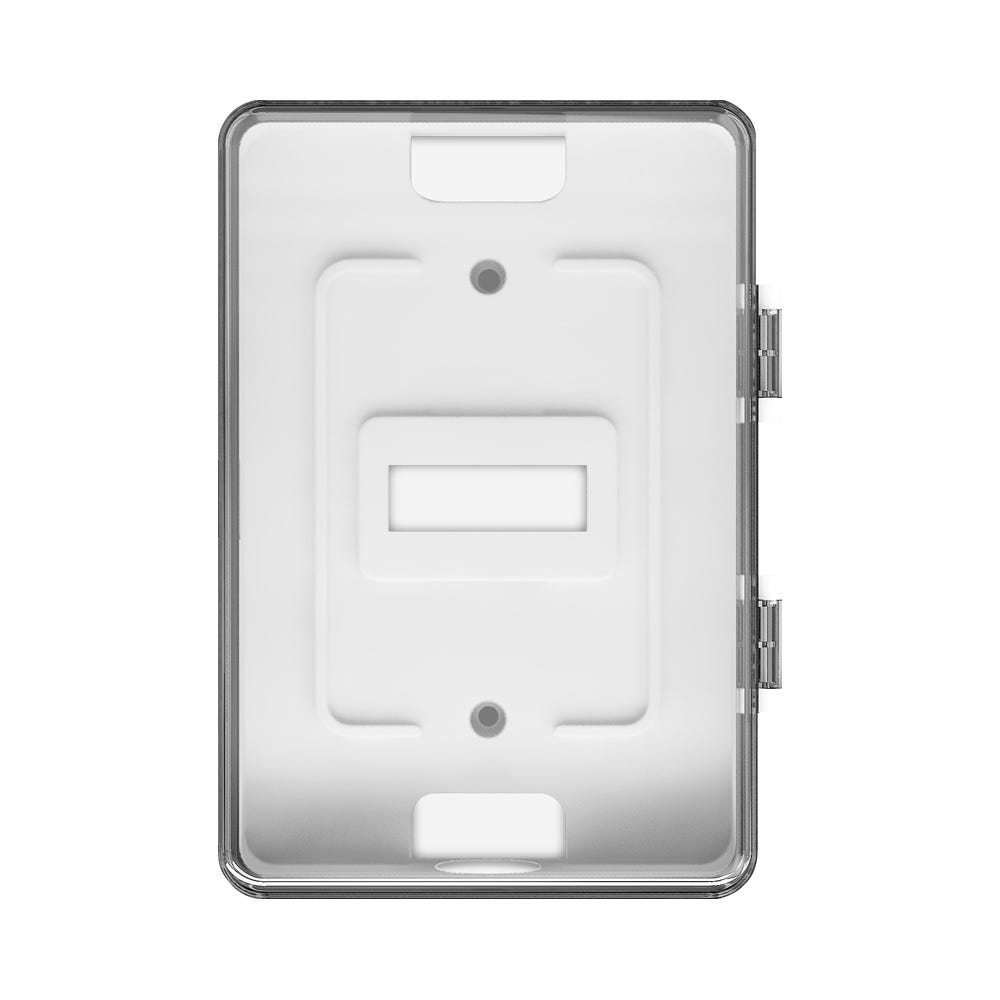

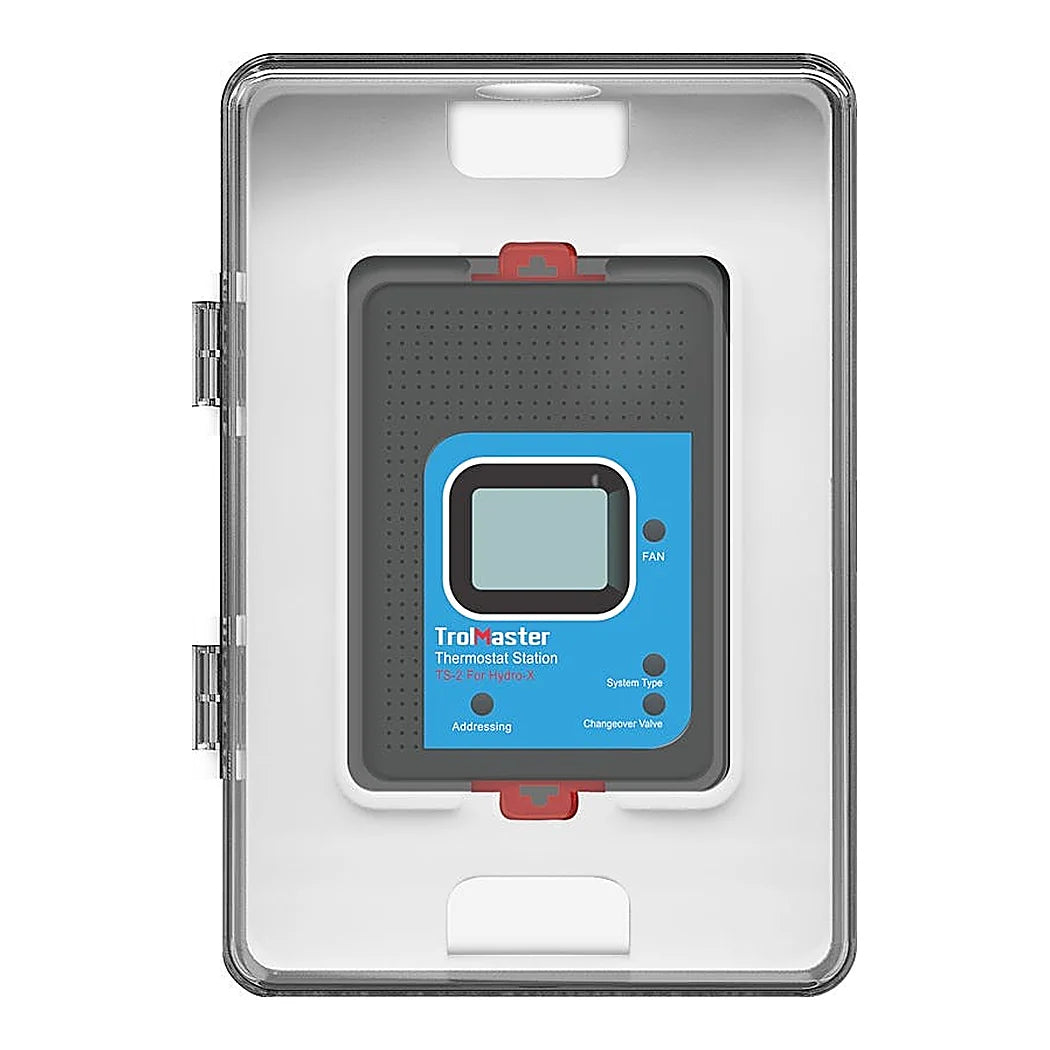

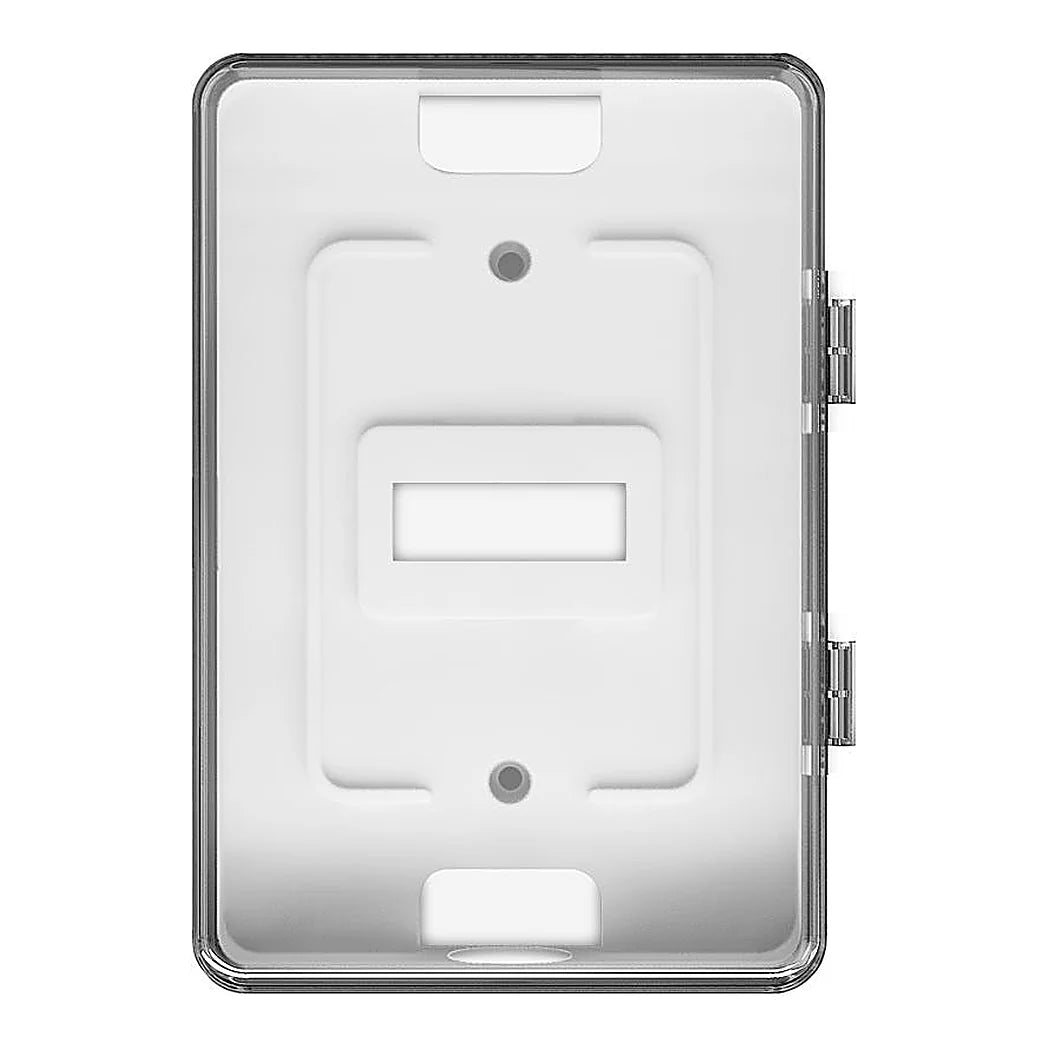

Four stations in the range are the ones that end up in wet places, and this box is the enclosure for those four. TrolMaster name them as the TS-1 and TS-2 Thermostat Stations, the HS-1 Humidistat Station and the ARS-1 AC Remote Station. Each of those mounts out at the equipment rather than on a dry wall beside the controller. The protection level is specific and worth reading closely. It is protected from dripping water and from low pressure sprayed water. That covers condensate off a duct, overspray from a wash down, and the fine mist that lives near a humidifier. It does not cover immersion, and it does not cover a pressure washer aimed at the box. One thing to know before it arrives is that the package contains the box alone. No cables, no gland and no bracket come with it. The body is 6.3 in long, 3.3 in wide and 3.5 in deep. It weighs about 2 lb. The unit is ETL listed and carries a three year warranty.

Choosing This Over a Full Controller Enclosure

There are two different jobs here, and TrolMaster sell two different products for them. This box protects a single station out at the equipment it controls. A cabinet such as the SCC-4, or the larger SCC-2, houses the brain of the system on a wall instead. Picking the wrong one is an easy mistake, because both get called an enclosure. The stations this box fits are all low voltage control devices. A Thermostat Station puts out 24V at a maximum of 1A to stand in for the thermostat on an HVAC unit. The AC Remote Station talks to a mini split the way its own handset does. None of them switch line voltage themselves, which is why a modest splash rated box is enough for the job. Pair it with the ECW-1 waterproof RJ12 coupler when the cable run also sits in the wet. Protecting the station and leaving the joint exposed solves only half the problem. On fit: there are exactly four compatible models and no others. Another station, a sensor or a controller may sit inside and still leave the cable entry unsealed. Treat that compatibility list as the specification it is.

Key Features

• Fits four named stations: The TS-1, TS-2, HS-1 and ARS-1, and nothing else on the list.
• Dripping water protection: Covers condensate off a duct and the mist near a humidifier.
• Low pressure spray protection: Rated for wash down overspray, not for a pressure washer.
• Box only in the carton: No cables, no cable gland and no mounting bracket are included.
• ETL listed: With a three year warranty from TrolMaster on the part itself.
• Barcode: 6970207971332
• Not a controller cabinet: The SCC series houses a controller; this protects one station.
• Pairs with the ECW-1 coupler: Which seals the RJ12 joint that this enclosure does not cover.
