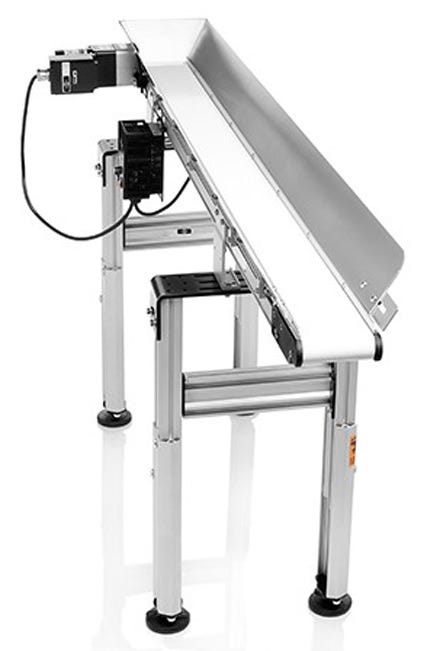

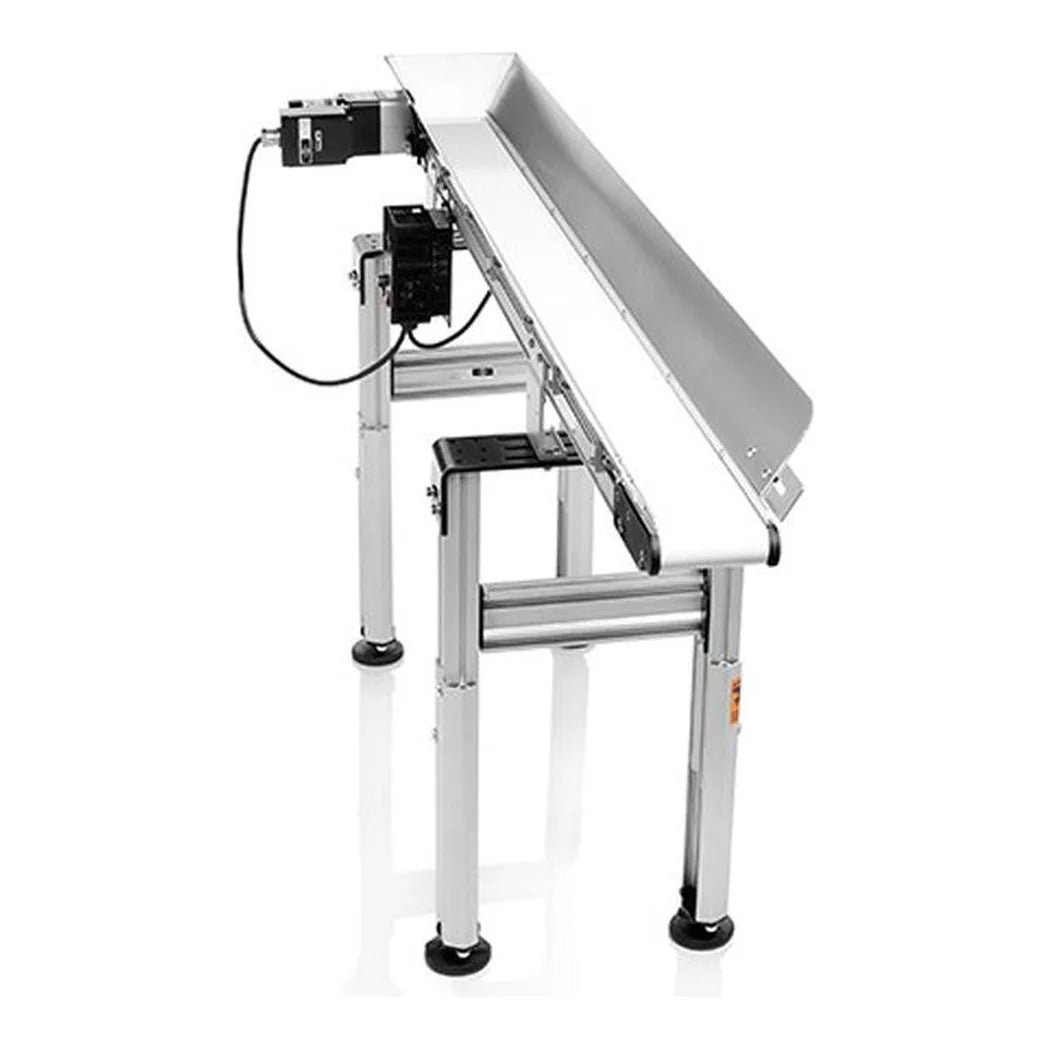

Twister Feed Conveyor | 60 in Belt, 0-35 ft/min, 115V for T2 T4

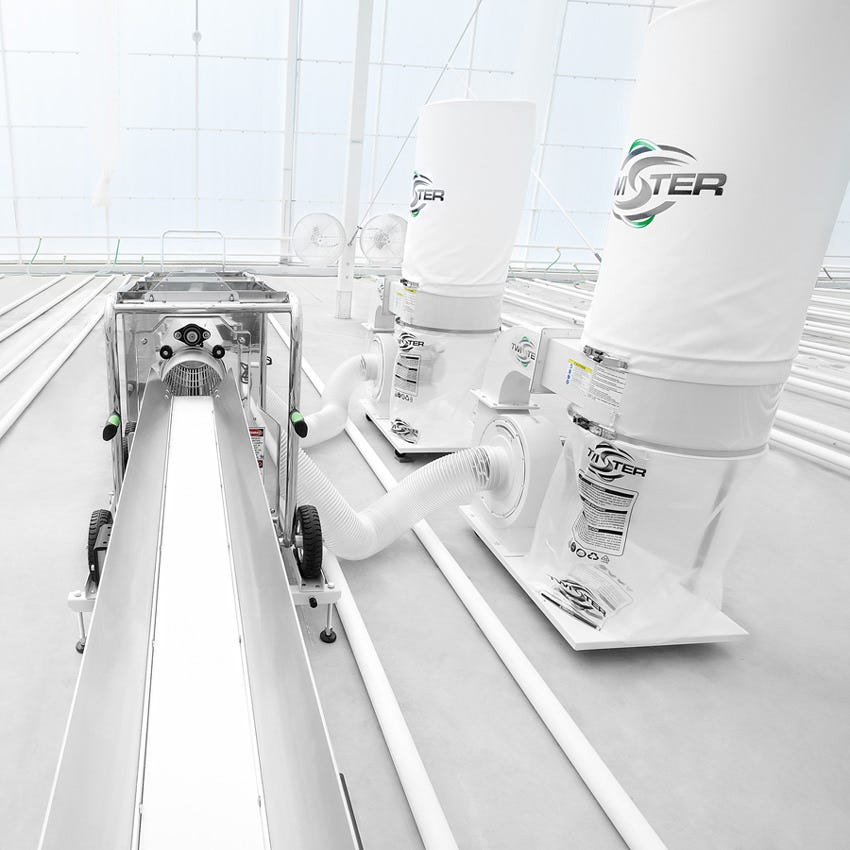

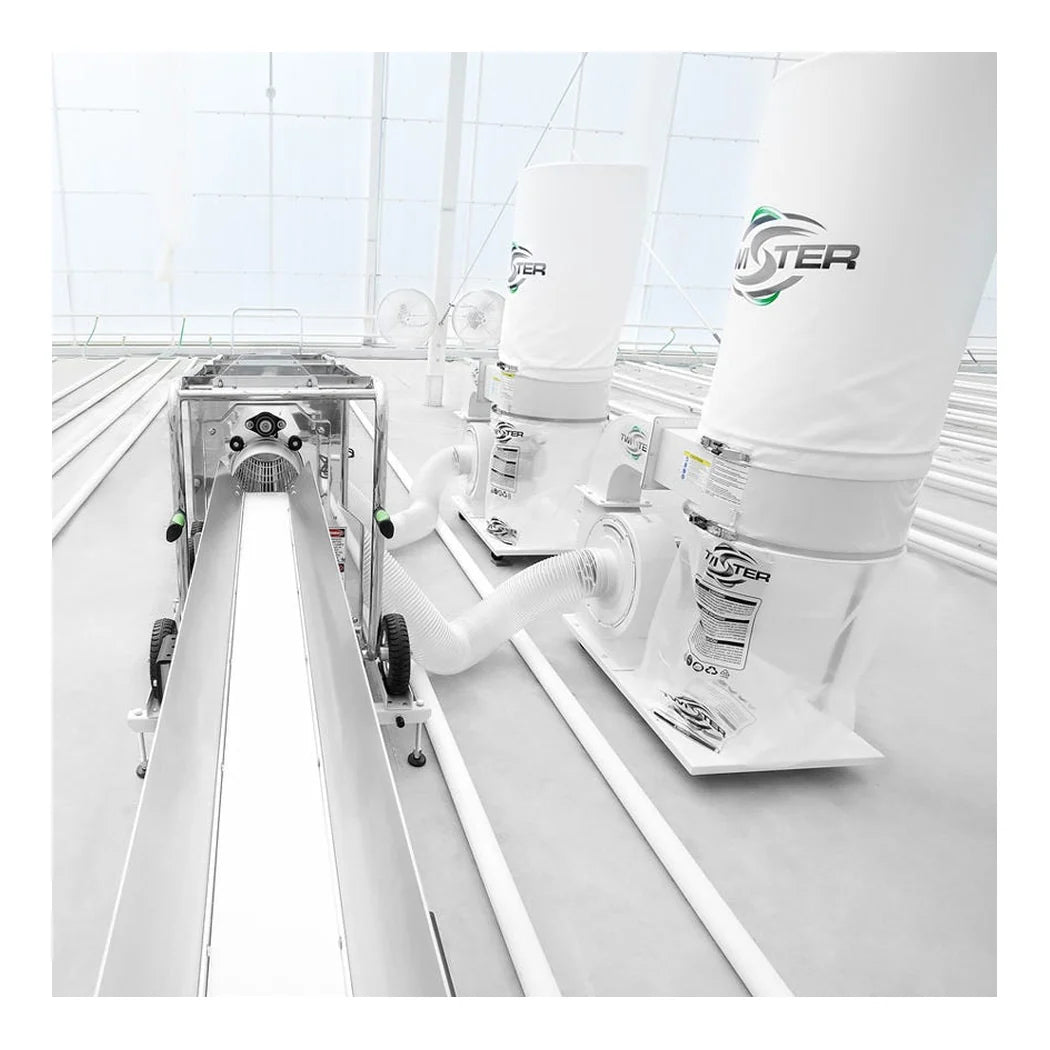

Where the Twister Feed Conveyor Sits on the Line

Ahead of the trimmer, not behind it. A machine fed by hand runs in surges, and a surge is what produces an uneven cut. This belt meters flower in at a rate you set, from 0 to 35 ft/min. That is more than twice the speed the outfeed belt runs at. Feeding wants pace, not inspection time.

Setting Up the Inbound Conveyor Beside a Trimmer

Height is what makes or breaks the install. The legs adjust from 23 to 33 in, a wider range than the outfeed belt gets. It has to reach the top of a T2 or T4 rather than the discharge. The belt is 3.75 in wide inside 3.5 in walls, on a 60 in run. That keeps flower in a single lane instead of spreading. The contact surface is FDA approved urethane. Power is 115V at 1.3A from a 1/30 HP, 25W motor on a 15A circuit. It carries UL, CSA, CE and ROHS marks, which matters more on an inbound belt than people expect at inspection time. Ship weight is about 44 lbs in a 60 x 40 x 12 in crate, with a year on parts.

Key Features

• 0 to 35 ft/min: More than twice the outfeed belt. Feeding wants pace, not dwell time.
• Legs adjust 23 to 33 in: Wide enough to meet the top of a T2 or T4 rather than the discharge.
• 3.75 in belt, 3.5 in walls: A single lane on a 60 in run, so flower does not spread across the belt.
• FDA approved urethane belt: The only surface the flower touches on the way into the machine.
• 115V, 1.3A, 1/30 HP: A 15A circuit and a standard single phase supply. No electrician needed.
• UL, CSA, CE and ROHS: About 44 lbs shipped, crated at 60 x 40 x 12 in, with a year on parts.

Technical Specifications
