The Figures on the Double Barrel 32 XXL13
The figures that matter on this system are aeration and power. Total volume is 380 gal and power usage is 625 W. The air pump set is one 100 LPM pump and three at 80 LPM, and that is what drives the headline number in recirculating culture. Aeration runs at 0.90 LPM per gallon. Recirculation runs at 6.32 exchanges an hour, which is what 2400 GPH gives on this volume. The aeration figure is the one that gets compared against other systems. The power figure is the one an electrician needs before the room is wired.

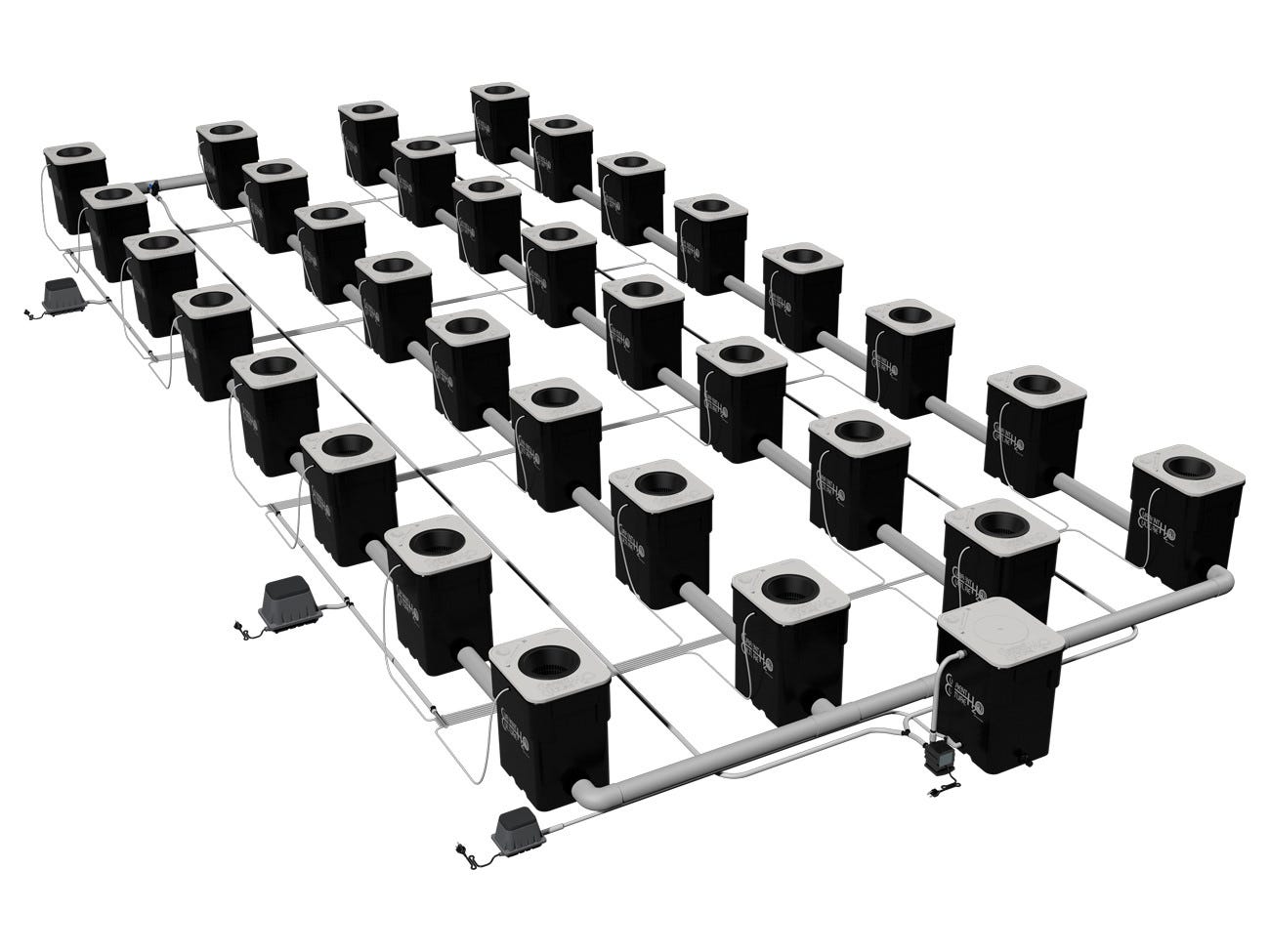

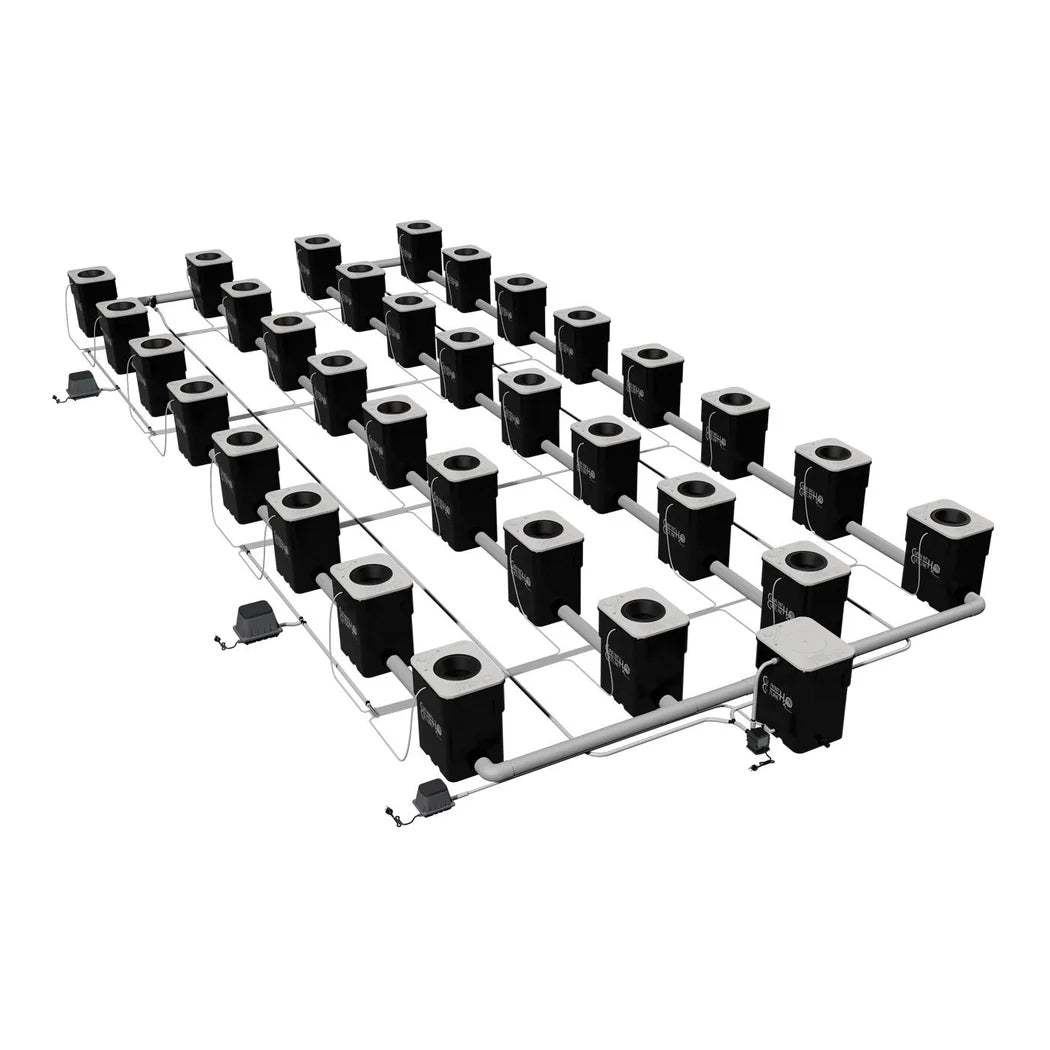

Planning a Room Around a 32 Site RDWC System
Start with the space, because this is a commercial footprint and not a tent. The system itself occupies 11 feet 1 inch by 28 feet, or 3.38 by 8.54 metres. Plan a grow area of 18 by 34 feet around it, which allows for aisles and working room. Four rows of eight sites on forty inch centres is what fills that area. Water temperature is the thing that will decide the season. A reservoir of 400 gal is recommended alongside the system, with a chiller of one and a half to two horsepower on it. That is a real line item and it is easy to under budget. Lighting guidance from Current Culture is given as thirty two fixtures at 600W horizontally, or forty one vertically. Read that as a canopy area and a light level rather than as a fixture count, because it is written in high pressure sodium terms. An equivalent light emitting diode room would be planned on target light intensity across the canopy instead. Veg time is four to six weeks to a plant of thirty to thirty six inches before flipping. Nutrient to start is in the box, as Cultured Solutions VEG A and B. Warranty is one year, and each system is built to specification.
Key Features
- Four rows, thirty two sites: On forty inch centres, in thirteen gallon blackout modules.
- 380 gal total system volume: With a 400 gal reservoir recommended alongside it.
- 0.90 LPM per gallon aeration: Driven by one 100 LPM pump and three at 80 LPM.
- 625 W power draw: The figure the electrician needs.
- 2400 GPH return pump: Which turns the system over 6.32 times an hour.
- Three inch manifold: With Spin-Tight bulkheads and eight inch heavy duty lids and net pots.
- Chiller adapter fitted: A one and a half to two horsepower chiller is the recommendation.
- Built to specification: With a one year warranty and starter nutrient included.
Technical Specifications
| Specification | Value |
|---|---|
| SKU | UCDB32XXL13 |
| Brand | Current Culture H2O |
| Product | Recirculating deep water culture system, double barrel configuration |
| Number of rows | 4 |
| Number of sites | 32 |
| Plant spacing | 40 in centres |
| Module size | 13 gallon, Blackout Series |
| System footprint | 11 ft 1 in x 28 ft, or 3.38 m x 8.54 m |
| Total system volume | 380 gallons / 1439 litres |
| Power usage | 625 W |
| Air pump sizes | One at 100 LPM plus three at 80 LPM |
| Aeration rate | 0.90 LPM per gallon |
| Water pump size | 2400 GPH / 9085 LPH |
| Recirculation rate | 6.32 exchanges per hour |
| Recommended grow area | 18 ft x 34 ft, or 5.49 m x 10.36 m |
| Recommended lighting, horizontal | 32 fixtures at 600W |
| Recommended lighting, vertical | 41 fixtures at 600W |
| Recommended chiller | 1.5 to 2 HP |
| Recommended reservoir | 400 gallons / 1500 litres |
| Veg time | 4 to 6 weeks, to a plant of 30 to 36 in |
| Lids and net pots | CCH2O 8 in heavy duty, lids ported |
| Manifold | 3 in, with 3 in UC Spin-Tight bulkheads |
| Return pump | Danner Mag-Drive |
| Air distribution | Linear air pumps, 9 in diffuser disc, Aqua-Pore diffusers, manifold, hose and in-line filters |
| Also included | Adjustable float valve with reservoir adapter kit, drain valve, chiller adapter, garden hose drain adapter, Cultured Solutions VEG A and B |
| Warranty | 1 year |
| Build | Built to specification |
