Can-Lite 14 Inch: 2200 CFM Carbon Filtration for Large Rooms
This is the 14-inch standard filter in the Can-Lite line from Can-Filters, part number 700594. It is rated for up to 2200 CFM through a built-in 14-inch flange. The body is 18 inches across and 40 inches tall. It holds about 50.4 lbs of 100% Australian granular activated carbon in a 2-inch bed. Total weight is 68 lbs, light for this capacity thanks to aluminum end caps. The 51% open perforated shell spreads airflow over the full carbon surface. A pre-filter sleeve comes fitted from the factory. The filter is rated for operating temperatures up to 80°C. Can-Filters assembles the Can-Lite line in Vancouver, Washington. For rooms that need more than this, Can-Filters also makes a taller 14-inch XL rated for 3000 CFM.
Sizing Fans and Mounts for Can Lite Filters This Large
Can lite filters this size belong on a dedicated exhaust line, and Can-Filters pairs this one with its Max-Fan 14-inch. Keep the fan at or below the filter rating. A fan that pushes far more air leaves too little contact time in the carbon, and odor slips through. At this weight, the filter needs a rated ceiling anchor, a strut frame or a floor stand. Tent frames are not built for this load. Stand it upright on the floor if ceiling space is tight, with the flange on top. Place it where the warmest, most fragrant air gathers, and keep duct bends to a minimum. Run dehumidifiers ahead of it, because damp air uses up carbon faster. Replace the pre-filter sleeve on a schedule, since a clogged sleeve chokes airflow across the entire bed.
Key Features
- 2200 CFM Maximum: Sized for large rooms on a 14 in exhaust fan.
- 2 in Carbon Bed: About 50.4 lbs of 100% Australian granular activated carbon.
- Built-In 14 in Flange: Connects straight to 14 in ducting and fans.
- 18 x 40 in, 68 lbs: Aluminum top and bottom keep the weight down for its capacity.
- 51% Open Perforation: Airflow spreads across the full carbon surface.

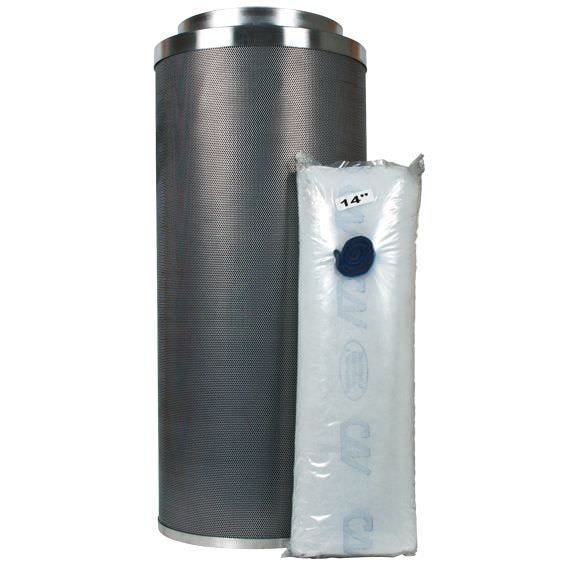

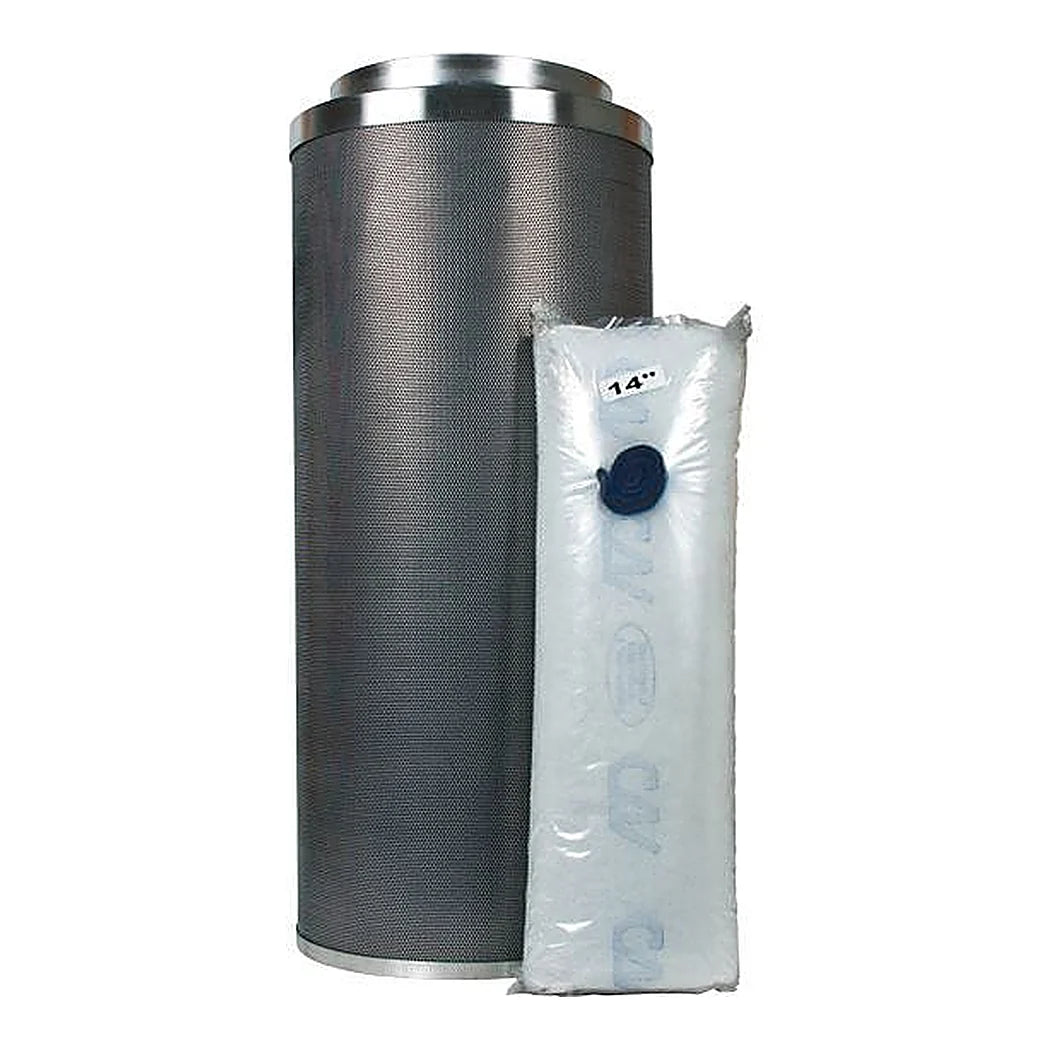

- Pre-Filter Included: Fitted from the factory to keep dust off the carbon.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Can-Filters |
| Model | Can-Lite 14 in |
| Part Number | 700594 |
| Max Airflow | 2200 CFM |
| Flange | Built-in 14 in |
| Outside Diameter | 18 in (45.7 cm) |
| Height | 40 in (101.6 cm) |
| Total Weight | 68 lbs (30.84 kg) |
| Carbon Weight | 50.4 lbs (22.86 kg) |
| Carbon Bed Depth | 2 in |
| Carbon Type | 100% Australian granular activated carbon |
| Max Operating Temp | 80°C |
| Pre-Filter | Included |
| Recommended Fan | Max-Fan 14 in (exhaust) |
| UPC | 840470000236 |
